1. High-Efficiency and Precise Down-Filling
- Utilizes dynamic weighing technology with an accuracy of ±0.01g, ensuring uniform down-filling weight for each product.
- Filling speed reaches 5-15 pieces per minute (adjustable based on weight and specifications), achieving 5-10 times higher efficiency than manual methods.
2. Intelligent Control System
- Equipped with PLC or industrial-grade touchscreen, supporting digital parameter setting (e.g., weight, zonal filling ratio) for "one-touch operation."
- Features data storage and traceability functions to meet production quality management requirements.
3. Modular Design
- Compatible with various down materials (grey down, white down, washed down, etc.) and supports multiple filling modes (single-chamber/multi-chamber).
- ntegrated dust removal and filtration system reduces flying down contamination and improves workshop environment.
4. Energy-Saving and Environmentally Friendly
- Closed-loop circulation design minimizes material loss, achieving over 99% down utilization rate.
- Low-power motors and pneumatic systems reduce energy waste.
PRODUCT ADVANTAGES
1. More refunds and less replenishment, precisely saving down and cotton.
2. Independent weighing to eliminate interference.
3. Gate closure to prevent down or cotton rolling.
4. Capable for down and cotton to reduce repeated investment.
5. Automatic allocation of large weight.
6. USB data import and export.
7. Double-frequency drive saves more power.
8. Dual photoelectric control is more reliable.
9. Automatic blockage removal and labor saving.
10. Constant humidity control system.
11. Motor overcurrent, undervoltage and overvoltage protection.
12. Independent regulation of bilateral air pressure.
Optional: voice function, internet function, code scanning charging and data stream.
PRODUCT PARAMETERS

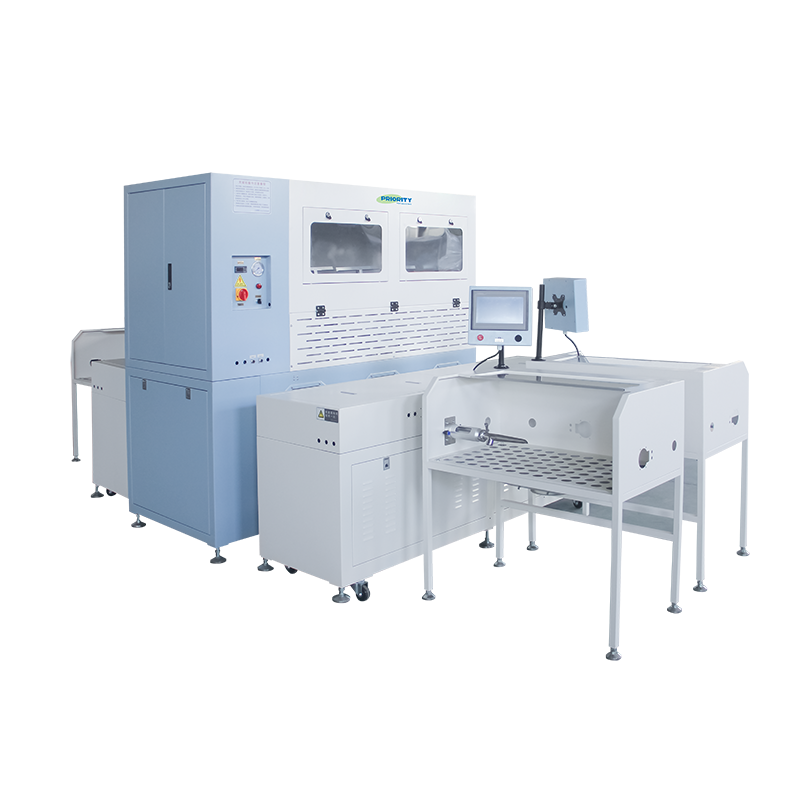

Machine model | SP-9584RM22 | SP-9586RM22 |
Filling port | 4 | 4 |
Total cycles | 16 | 24 |
Filling materials | Low pile, high pile, pearl cotton, foam cotton, hand cotton | |
Drive mode | Dual variable frequency drive | |
Mixing structure | Three-phase motor 0.75KW+RV63 reducer | |
Maximum display accuracy | 0.01g | |
Setting range | 320g | |
Down capacity per bucket | 30g | 10g |
Cotton capacity per bucket | 35g | 15g |
Filling port diameter | Φ32mm | |
Filling speed | 5-16g/s | |
Supply voltage | Single phase 220VAC | |
Rated power | 3KW | |
Air pressure requirements | ＞0.6Mpa, 1m³/min | |
Host size | 2.3*0.9*2m | 2.3*0.9*0.2m |
Weighing box size | 2.24*0.6*0.9m | 2.2*0.6*0.9m |
Dust removal table size | 1*0.6*1.2m | |
Minimum floor area | 6*3m | |
PRODUCT USES
• Apparel Manufacturing: Zonal down-filling for down jackets, ski jackets, and outdoor gear.
• Home Textile Industry: Uniform filling for duvets and pillow cores.
• Customized Production: Supports flexible production needs for small batches and diverse varieties.
FAQ
Q1: What is the filling efficiency and accuracy of the machine?
A1: The equipment uses dynamic weighing technology with an accuracy of ±0.01g, ensuring uniform weight for each product. Filling speed adjusts according to product specifications, reaching up to 15 pieces per minute—5-10 times more efficient than manual methods.
Q2: Does the machine support multiple down materials and filling modes?
A2: Yes. With modular design, it accommodates grey down, white down, washed down, etc., and supports single-chamber/multi-chamber filling modes to meet zonal down-filling needs for products like jackets and duvets.
Q3: Is maintenance costly? Is it energy-saving and eco-friendly?
A3: Maintenance costs are low. The machine features low-power motors and pneumatic systems to reduce energy consumption. Its closed-loop design achieves over 99% down utilization, minimizing waste. A dust removal system also improves workshop hygiene, aligning with environmental standards.
