PRODUCT ADVANTAGE
Automatic fabric spreader machine Core Advantages
- High Efficiency & Labor-Saving: Fully automatic fabric spreading machine speeds are 3-5 times faster than manual work, reducing reliance on labor;
- Precision & Flatness: Intelligent tension control and deviation correction systems prevent fabric shifting or wrinkling;
- Flexible Adaptability: Compatible with woven fabrics of varying thicknesses and widths, supporting customized parameters;
- User-Friendly Operation: Set spreading length, layers, and modes with one-touch controls via a touchscreen, minimizing operational complexity.
Auto fabric spreading machine Technical Highlights
- High-precision sensors monitor fabric status in real time;
- PLC-based intelligent control system ensures stable operation;
- Modular design enables easy maintenance and low failure rates;
- Energy-efficient and low-noise operation meets modern factories' environmental requirements.
TECHNICAL PARAMETERS

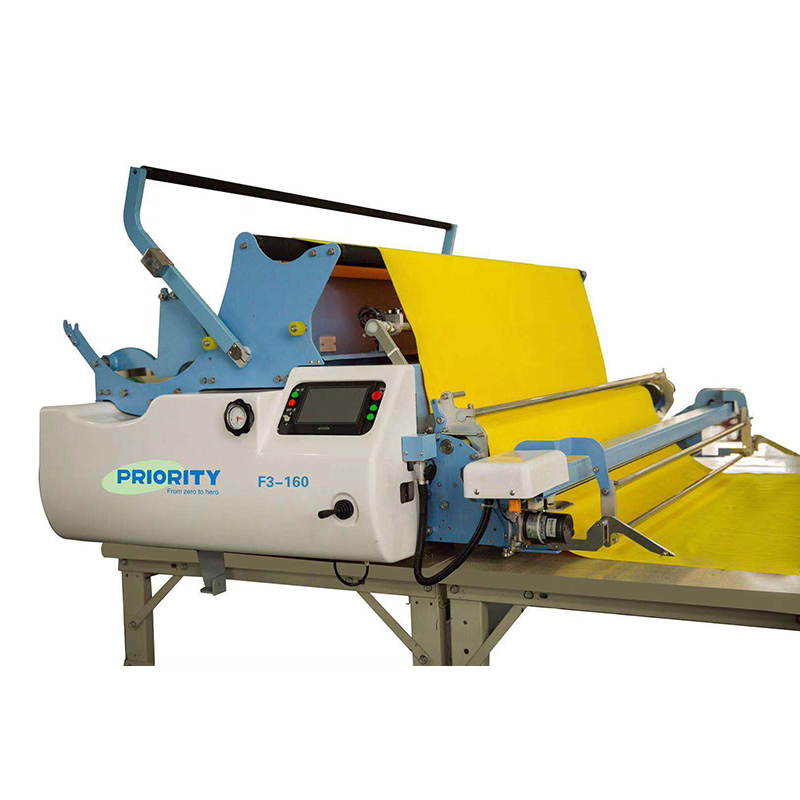

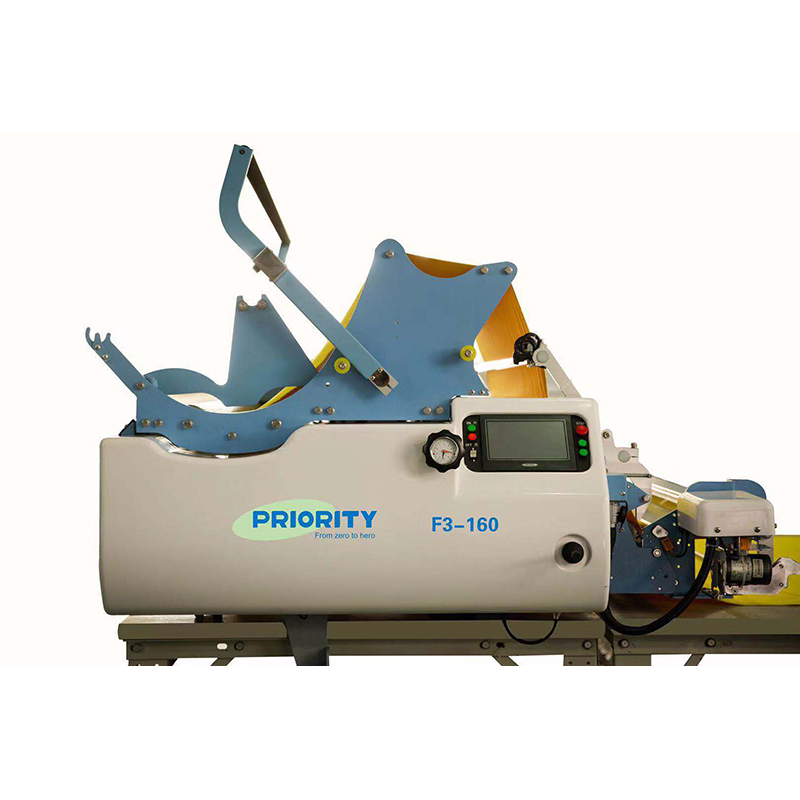

Model | F3-160 | F3-190 |
Power supply | 1P/220V | |
Motor | 1KW | |
Maximum cloth width | 1600mm/63” | 1900mm/75” |
Fabric spreader table width | 1830mm/72” | 2130mm/84” |
Machine weight | 255kg | 290kg |
Weight of cloth roll | 100kg max | |
Diameter of cloth roll | 480mm max | |
Travel speed | 98m/min max | |
Machine dimensions | 2300*1350*800mm | 2600*1350*800mm |
Packing dimensions | 2500*1550*1100mm | 2800*1550*1100mm |
N.W/G.W | 445/675kg | 495/755kg |
Spreading height | One way 220cm Face to face 150cm | |
Spreading methods | One-way spreading (face up) Zigzag spreading (face to face) Multiple length spreading (face up) | |
Standard equipment:
1. Memory of set up of spreading length.
2. Auto acceleration and deceleration by computer.
3. Bucket type unwinding synchronically with relaxing.
4. Fabric setting bar.
5. Emergency stop.
6. Auto-lifting device.
7. Adjustable cutter travel length.
8. Layer counter.
9. Edge control.
10. Auto-cutter
11. Rewinding device (cloth roll).
Main device:
1. Touch panel display: easy to set up the length, number of layers, speed and steps.
2. Cutting device: the auto-cutter can be easily dismounted. Travel length and speed of cutter are adjustable.
3. Automatic fabric relaxing control: to relax the fabric in advance and release the tension during spreading the fabric.
4. Edge control device: automatic edge control during spreading fabric.
5. Fabric loading sensor: machine returns back to original position once fabric runs empty.
6. Emergency stop: the brake lines are under two sides of the table, it can be pulled for emergency stop.
Optional device:
1. Anti-static electricity device.
2. Riding platform.
3. Safety sensor device.
PRODUCT VIDEO
FAQ
Q1: What are the advantages of a woven automatic cloth spreading machine compared to traditional manual cloth spreading?
A1: The automatic cloth spreading machine can significantly improve efficiency and reduce labor costs; ensure the cloth is flat and wrinkle-free through precise tension control; support multi-layer cloth spreading to enhance the consistency of cutting; reduce human operation errors and decrease cloth waste.
Q2: When using an automatic cloth spreading machine, how can we avoid cloth deviation or wrinkling?
A2: It is necessary to ensure that the cloth roll is installed firmly and aligned with the cloth guiding roller; adjust the tension parameters according to the characteristics of the cloth (such as elasticity and thickness); clean the guide rails and sensors regularly to prevent interference from foreign objects; check whether the cloth spreading tabletop is level before operation.
Q3: What might be the reasons if the equipment suddenly stops during operation?
A3: Common reasons include: the cloth getting stuck or broken, which triggers the safety sensor; abnormal power supply or air source supply; incorrect setting of program parameters; overload or malfunction of mechanical components (such as motors and bearings). It is recommended to check the alarm code, observe after restarting, and contact the after-sales service if the problem persists.
Q4: What tasks are required for daily maintenance?
A4: Clean up cloth debris and dust every day; lubricate moving parts such as guide rails and chains every week; check the sensitivity of sensors and the airtightness of the pneumatic system every month; calibrate the tension control system every quarter; back up the equipment parameters regularly to avoid data loss.
Q5: What parameters should we pay attention to when purchasing an automatic cloth spreading machine?
A5: Focus on: the maximum cloth spreading width and length, the types of compatible cloth (such as thick fabrics/ thin gauzes), the cloth spreading speed (meters per minute), the precision of tension control, whether it supports connection with intelligent layout software, as well as after-sales service and the supply cycle of accessories.
