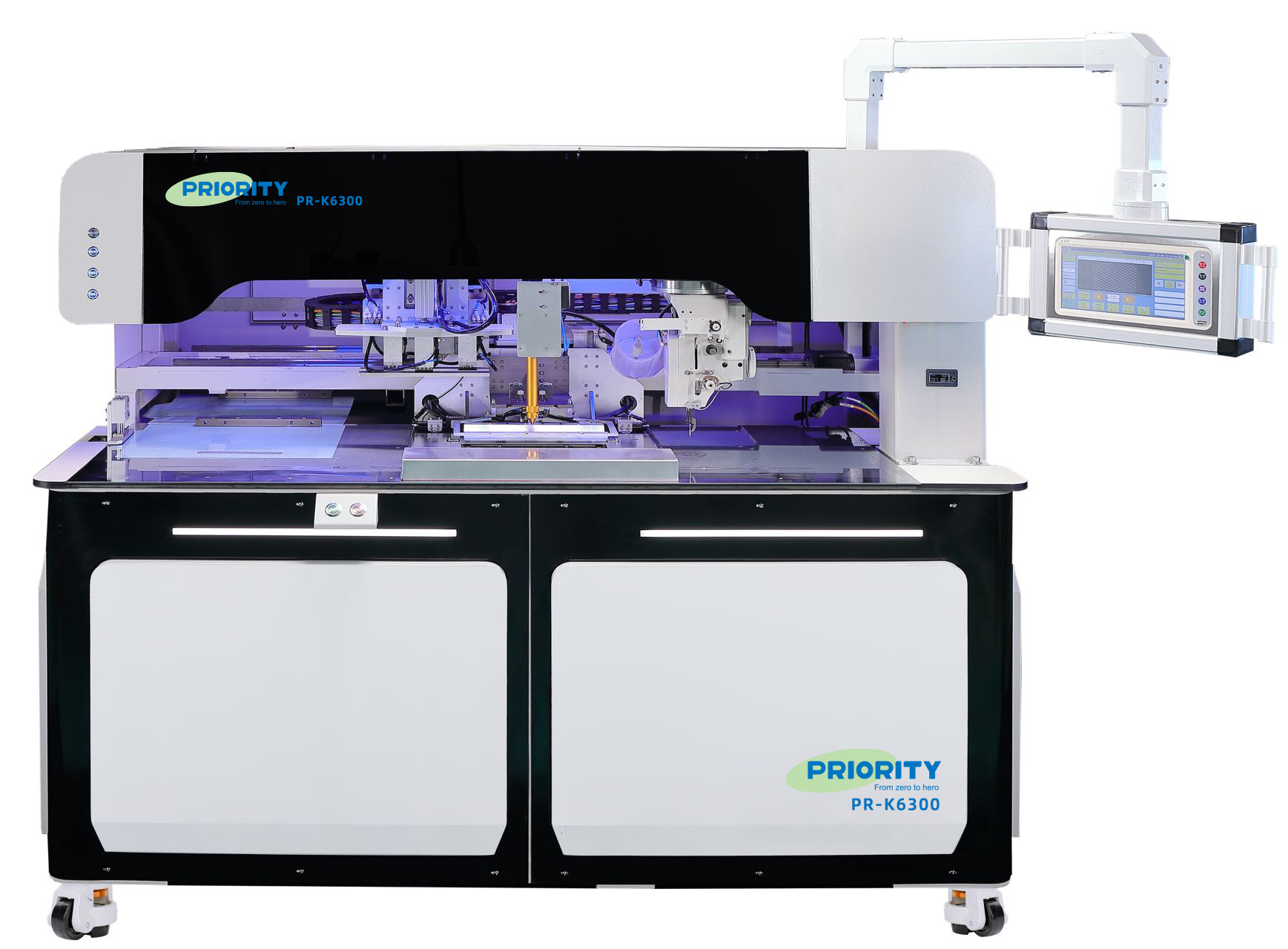

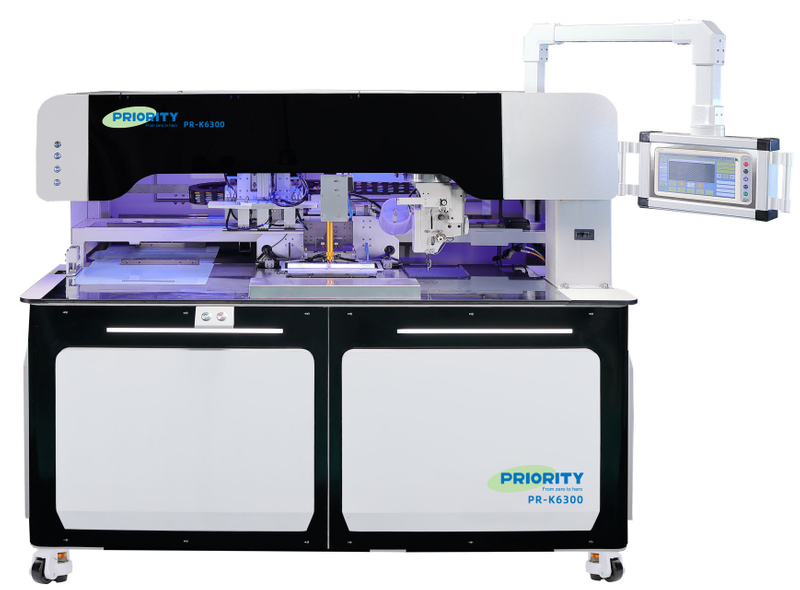

PR-K6300
PRIORITY
Core Advantages
• High-Efficiency Production: It only takes 25 seconds to sew a standard pocket, with a production rate of 120-180 units per hour, significantly shortening the production cycle.
• Precision & Aesthetics: Adopting rotary head technology reduces sewing time while making the stitch neat and attractive; servo motor control ensures stable sewing precision.
• Cost-Effectiveness: The mold replacement cost is only about 300 RMB, much lower than similar equipment in the industry, saving more costs in long-term use.
• Wide Applicability: Suitable for both knitted and woven fabrics, with a maximum pocket size of 280×40mm, meeting the needs of various garment pocket types.
Machine parameters
Maximum stitching range | 280*40mm |
Max stitching range of factory connouration | 200*40mm |
Max sewing speed | 2800rpm |
Speed setting | 100-2800rpm |
Stitch length | 0.1-12.7 |
Pattern storage | Internal storage, USB storage |
Use of bobbin | Rotary hook |
Use of needle | DPx17 |
Type of presser foot | Pneumatic |
Cylinder | Airtac |
Power supply | AC 220VHz, ground required |
Spindle motor | Servo motor |
Language of the electrical control display | Chinese, English, Japanese, Korean, Turkish |
Model | Juita Rotary sewing machine head |
Sewing area | Minimal oil |
Hourly production rate | 120-180 units |
Applicable fabrics | Suitable for knitted and woven fabrics |
Maximum pocket size | 280*40mm |
Electrical control system | SYSTEMTOP |
Dimensions | 2200*1400*1700mm |
Weight of the machine | Gross weight 1 ton |
Application Effect
It can automatically sew various garment pockets (such as jeans pockets, jacket pockets, etc.), with uniform stitches and flat pockets, meeting the high-quality production standards of branded clothing.
