PRODUCT ADVANTAGES
1. Doubled Efficiency, Soaring Productivity
- Dual-Station Synchronous Operation: The bilateral independent down-filling system can process two products simultaneously, increasing filling speed by over 100%, especially ideal for large-volume orders.
- Dual-Head Precision Filling: Equipped with two filling heads that alternate or operate synchronously, minimizing downtime and enabling seamless production workflows.
- Intelligent Control: Integrated with PLC or touchscreen systems for one-click parameter settings. Product specification changes require no manual recalibration, further enhancing production efficiency.
2. Precision Control, Consistent Quality
- High-Precision Weighing Module: Utilizes imported sensors to control error margins within ±0.01g, ensuring uniform down filling for every product.
- Dual-Channel Independent Measurement: Separate computation for bilateral filling heads eliminates interference, preventing weight deviations caused by pressure fluctuations.
- Dynamic Compensation Technology: Real-time monitoring automatically adjusts airflow and pressure parameters during filling, eliminating "empty fills" or "leakage."
3. Flexible Adaptability, Versatile Applications
- Broad Material Compatibility: Supports diverse filling materials like down, cotton, and PP cotton, meeting requirements for apparel, quilts, cushions, and more.
- Modular Design: Quick-replaceable components (e.g., filling heads, conveyors) ensure compatibility with both small items (pillows) and large products (down jackets).
- Space-Efficient Structure: Compact integrated design minimizes footprint, ideal for SMEs with limited workshop space.
PRODUCT FEATURES
1. More refunds and less replenishment, precisely saving down and cotton.
2. Independent weighing to eliminate interference.
3. Gate closure to prevent down or cotton rolling.
4. Capable for down and cotton to reduce repeated investment.
5. Automatic allocation of large weight.
6. USB data import and export.
7. Double-frequency drive saves more power.
8. Dual photoelectric control is more reliable.
9. Automatic blockage removal and labor saving.
10. Constant humidity control system.
11. Motor overcurrent, undervoltage and overvoltage protection.
12. Independent regulation of bilateral air pressure.
Optional: voice function, internet function, code scanning charging and data stream.
PRODUCT PARAMETERS

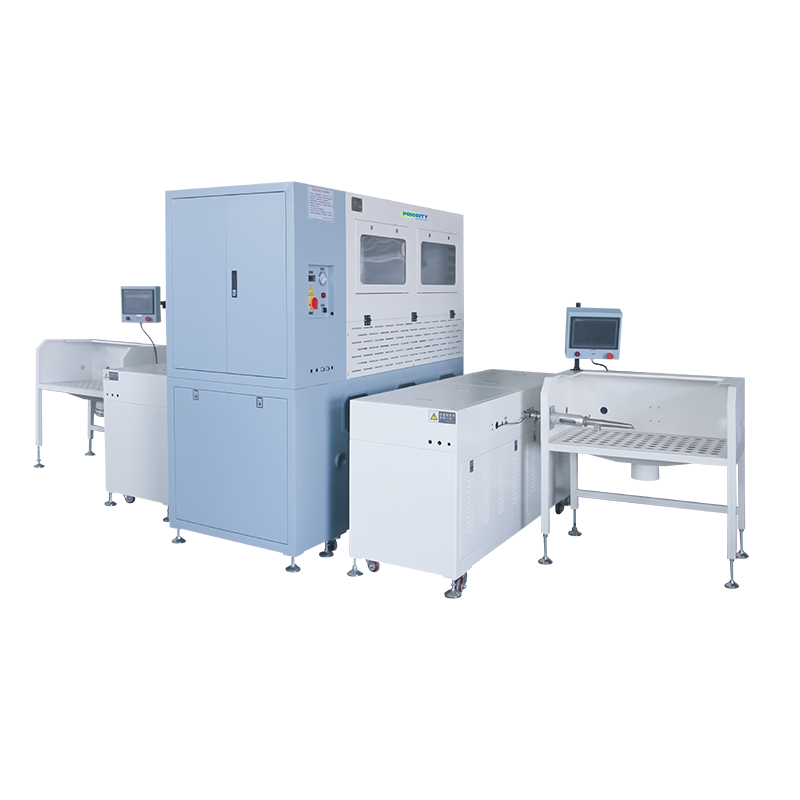

Machine model | SP-9586RM11 | SP-9587RM11 | SP-9588RM11 |
Filling port | 2 | 2 | 2 |
Total cycles | 12 | 14 | 16 |
Filling materials | Low pile, high pile, pearl cotton, foam cotton, hand cotton | ||
Drive mode | Dual variable frequency drive | ||
Mixing structure | Three-phase motor 0.75KW+RV63 reducer | ||
Maximum display accuracy | 0.01g | ||
Setting range | 320g | ||
Down capacity per bucket | 30g | ||
Cotton capacity per bucket | 35g | ||
Filling port diameter | Φ32mm | ||
Filling speed | 5-16g/s | ||
Supply voltage | Single phase 220VAC | ||
Rated power | 3KW | ||
Air pressure requirements | ＞0.6Mpa, 1m³/min | ||
Host size | 1.75*0.9*2m | 2.03*0.9*2m | 2.3*0.9*2m |
Weighing box size | 1.69*0.6*0.9m | 1.97*0.6*0.9m | 2.24*0.6*0.9m |
Dust removal table size | 1*0.6*1.2m | ||
Minimum floor size | 6*2.5m | ||
PRODUCT USES
1. Apparel Manufacturing: Mass production of down jackets, padded coats, and outdoor gear requiring high-precision filling.
2. Home Textile Industry: Rapid filling for quilts, pillows, and sofa cushions, adapting to multi-specification orders.
3. Industrial Secto: Filling automotive seat cushions, medical protective gear, and industrial products, compatible with materials like down and PP cotton.
