| Quantity: | |
|---|---|
PRODUCT ADVANTAGES
1. Extreme Portability and Flexible Deployment
• Space-Saving Design: Compact size and lightweight (e.g., CF-800S: 80×60×120cm, ≤65kg), ideal for small spaces like stores and studios.
• Multi-Scenario Adaptability: Supports mobile sampling needs in stores, temporary exhibitions, and markets.
2. Precision Control and Quality Assurance
• High-Accuracy Filling: ±0.01g weighing accuracy with 0-320g gradient filling, ensuring consistent quality across samples.
• Down Protection Technology: Negative pressure adsorption filling minimizes damage to down clusters, maintaining ≥95% loft retention (vs. 85% for manual filling).
3. Efficient Production and Cost Optimization
• Productivity Boost: 80-120 cells/hour, 5-8 times faster than manual labor, completing single-piece customization (filling + sealing) in 15 minutes.
• Material Conservation: Vacuum recycling system recovers 99% of scattered down, reducing raw material waste by 15%-20%.
4. Low Maintenance and Safety Compliance
• User-Friendly Operation: Requires ≤2 hours of training for independent operation.
• Certifications & Safety: CE/ROHS certified with built-in overload protection and leakage circuit breakers, meeting commercial safety standards.
PRODUCT FEATURES
1. More refunds and less replenishment, precisely saving down and cotton.
2. Independent weighing to eliminate interference.
3. Gate closure to prevent down or cotton rolling.
4. Automatic allocation of large weight.
5. USB data import and export.
6. Fault detection and easy maintenance.
7. Automatic blockage removal and labor saving.
8. Colorful light box (optional).
9. One-click continuous charging to improve efficiency.
PRODUCT PARAMETERS

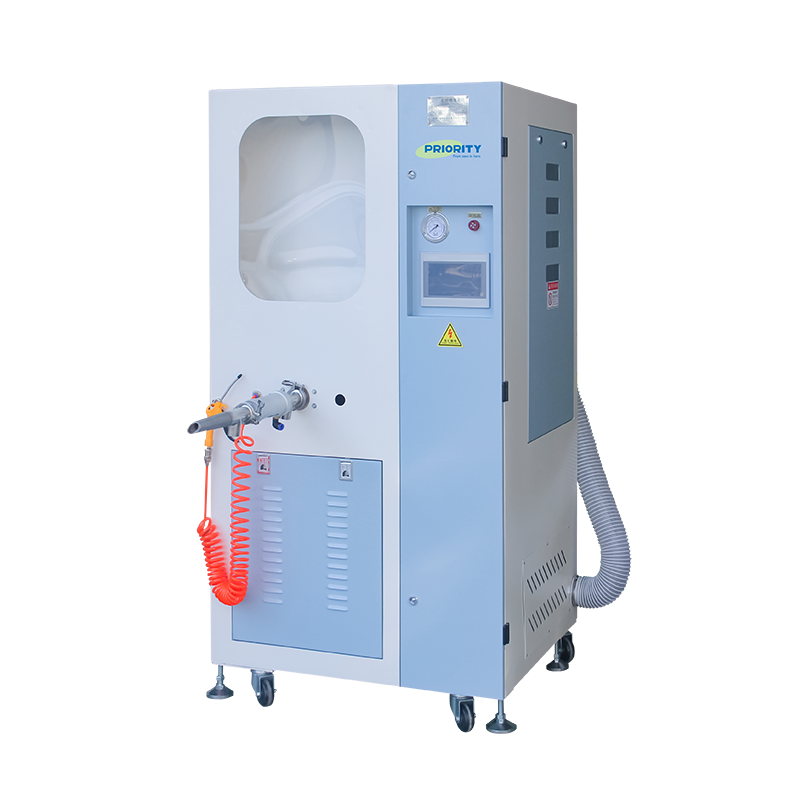

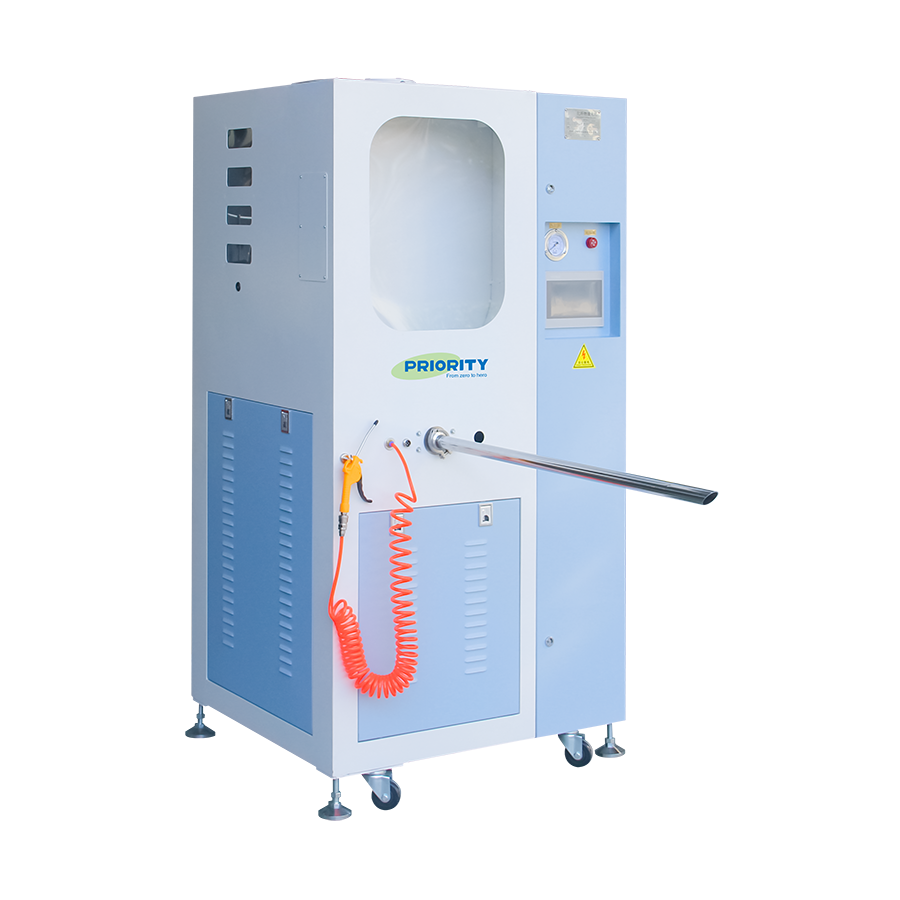

Machine model | SP-6181 | SP-6182 |
Filling port | 1 | |
Total cycles | 1 | 2 |
Filling materials | Low pile, high pile, pearl cotton, foam cotton | |
Drive mode | Single-phase speed-regulating motor | |
Maximum display accuracy | 0.01g | |
Setting range | 320g | |
Down capacity per bucket | 30g | |
Cotton capacity per bucket | 30g | |
Filling port diameter | Φ32mm | |
Filling speed | 5-16g/s | |
Supply voltage | Single phase 220VAC | |
Rated power | 0.6KW | |
Air pressure requirements | ＞0.6Mpa, 0.1m³/min | |
Host size | 0.8*0.9*1.8m | |
Minimum floor size | 1*2.3m, about 2.3㎡ | |
FAQ
Translation:
Q1: How difficult is this down-filling machine to operate? Do I need professional technicians?
A1: The operation is extremely simple and requires no technical expertise. We provide pictorial guides + video tutorials, and staff can become independent operators within ≤2 hours of training. Remote online troubleshooting is also supported.
Q2: Is the maintenance cost high? What daily upkeep is required?
A2: Maintenance costs are low for this small-sized automatic down filling machine.
Q3: What is the warranty period for the machine?
A3: 1-year free warranty from the purchase date covers all non-manufacturing defects (mechanical/electronic failures). Damage caused by improper operation, force majeure, or unauthorized modifications.
