MACHINE PARAMETERS

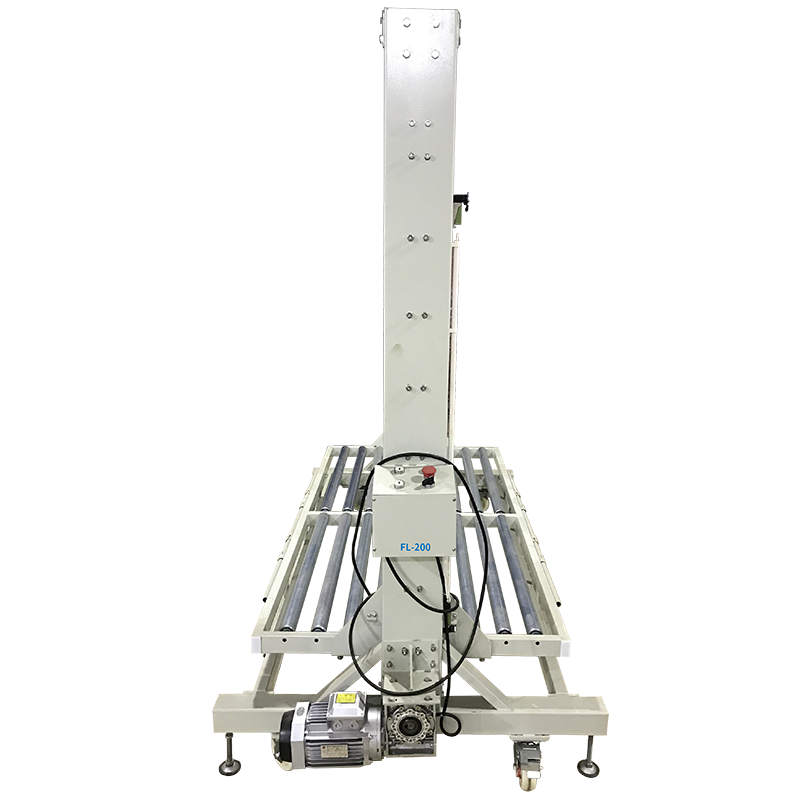

Model number | FL-200 |
Machine size | L 2210*W1000*H2190mm |
Rolled Fabric Adjustable Platform | 400-1700mm |
Platform Loading Capacity | 300kgs |
Voltage | 380V |
Wheels | 5 inch load-bearing universal wheels |
PRODUCT FEATURES
1. Intelligent Lifting and Positioning System
Equipped with a motor-driven lifting mechanism, it automatically adjusts the height of fabric rolls based on the spreading machine’s requirements. The system precisely elevates the fabric to a preset position (typically 1.2-2.5 meters above ground level) behind the spreading machine, ensuring seamless connection.
2. Collaborative Operation Capability
Designed to work synergistically with automatic spreading machines, it simplifies roll-changing operations. The process can be managed by a single operator with minimal training, eliminating the need for specialized expertise and reducing labor costs for factories.
PRODUCT ADVANTAGES
1. Labor Cost Savings: A single machine replaces 3-4 operators, reducing manual handling and elevated work by 90%.
2. Efficiency Boost: Roll change time is shortened to under 30 seconds, with overall spreading efficiency increased by over 40%.
3. Flexible Compatibility: Supports fabric rolls with diameters of 0-1200mm and weights ≤300kg, adaptable to both vertical and horizontal spreading machines.
FAQ
Q1. How to Choose the Right Model of Automatic Cloth Feeding Machine?
A1:
- Production Requirements: Select a model with appropriate load capacity based on fabric types (e.g., woven, knit), roll dimensions (diameter, weight), and daily production volume.
- Roll Parameters: Confirm the supported roll diameter range (e.g., 300-1200mm) and maximum load capacity (e.g., ≤300kg).
- Device Compatibility: Ensure the cloth feeding machine is compatible with existing automatic spreading machines, including matching interfaces and communication protocols.
Q2. What Is the Typical Warranty Period? What Is Not Covered?
A2:
- The standard warranty is 1 year (from the date of equipment acceptance). Core components (e.g., servo motors, PLC) may be extended to 2 years, subject to contract terms.
- Non-Warranty Scenarios:
- Mechanical damage caused by human operational errors (e.g., overloading, unauthorized modifications).
- Failure to perform routine maintenance as specified in the manual (e.g., failure to lubricate guide rails periodically).
- Malfunctions due to natural disasters or power supply issues.
