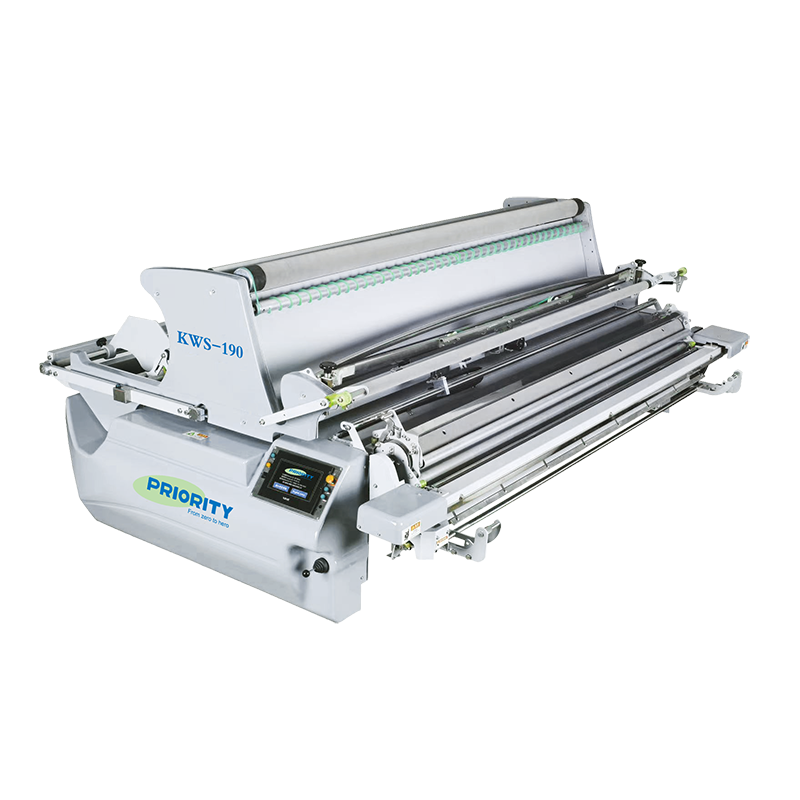

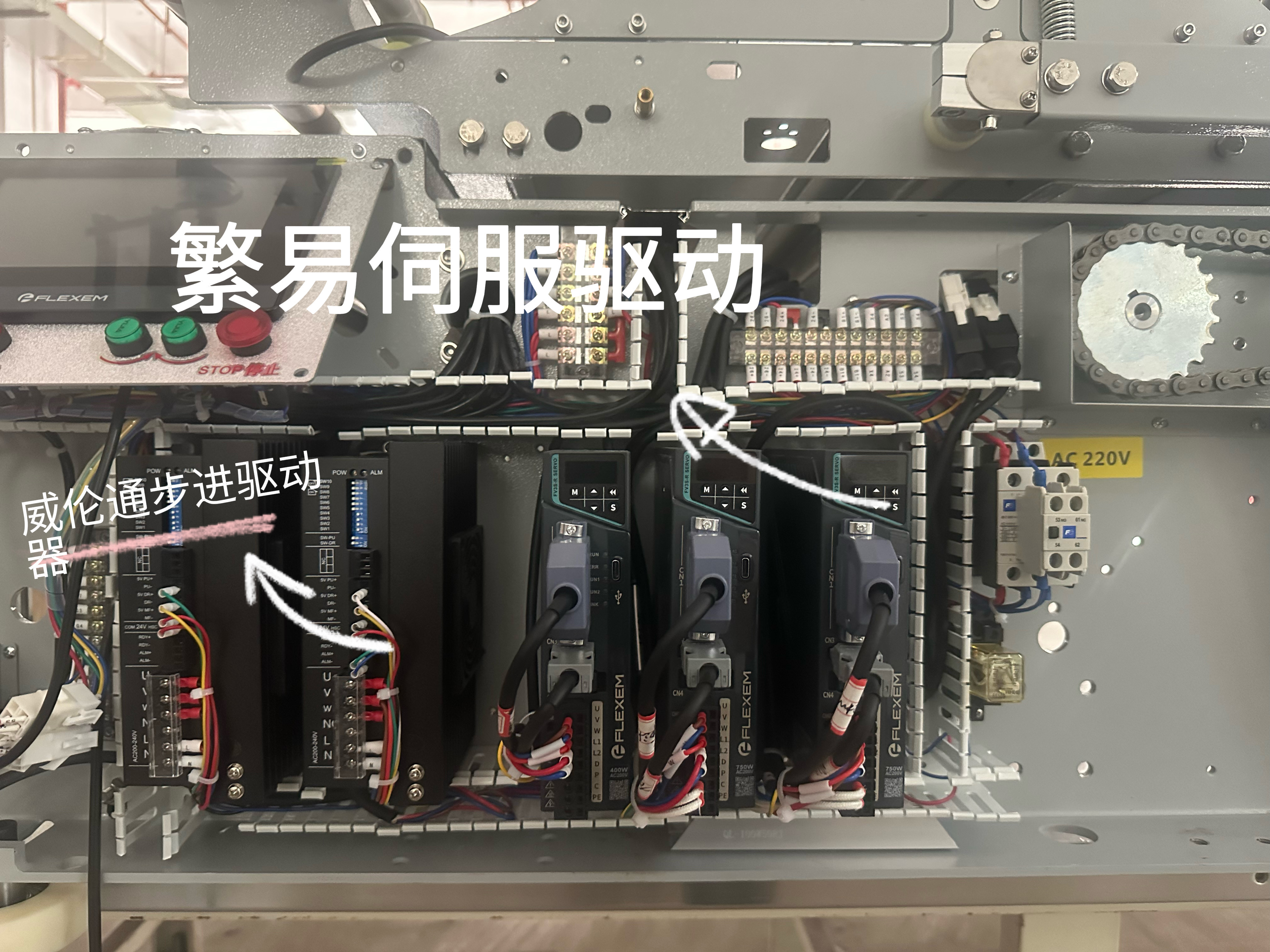

SERVO SYSTEM
1. The core algorithm of servo speed curve: the spreading speed is upgraded from the original 94m/min to 110m/min, the acceleration time is shortened by 25%, the deceleration time is shortened by 40%, and the overall spreading effect is improved by 24.5%.
2. Change the traditional mechanical slack adjuster, and use the touch screen digital memory function to adjust the slack, which is convenient to control and improves the precision.
 |  |
PRODUCT FEATURES
1. Machine returns back to original position once fabric runs empty.
2. The machine power will automatically shut off upon 5 minutes idle.
3. The spread laid fabric is not pulled when the emergency stop triggers.
4. The streamline shape can reduce the wind disturbance, noise and vibration.
5. Automatic fabric expanding system.

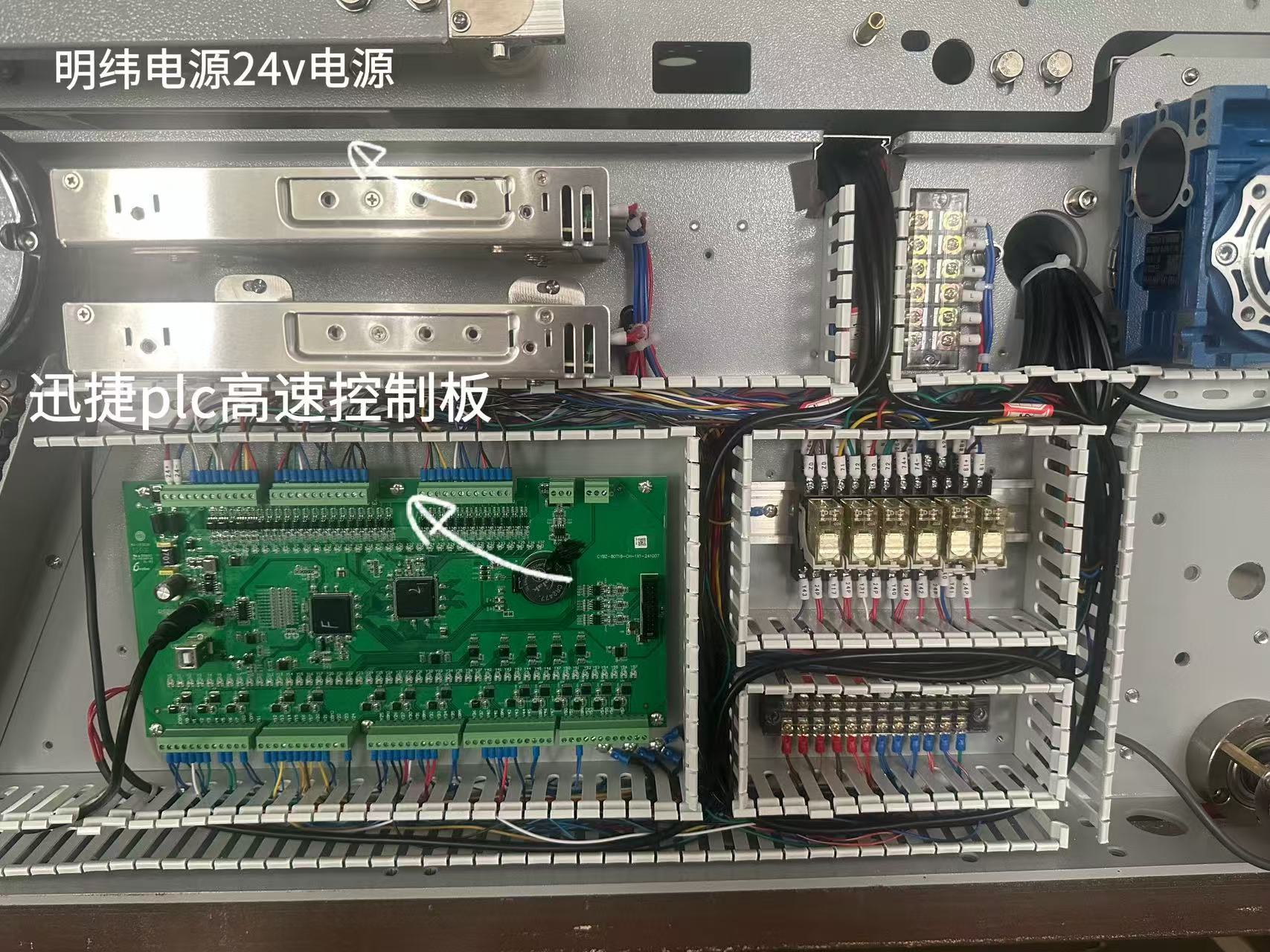

6. PLC touch panel, user-friendly operation system.
7. Non-tension spreading.
8. Simple operation increases production efficiency and also ensures the best quality.
9. The new Arc mechanism ensures the elastic fabrics expanded perfectly.
 |  |

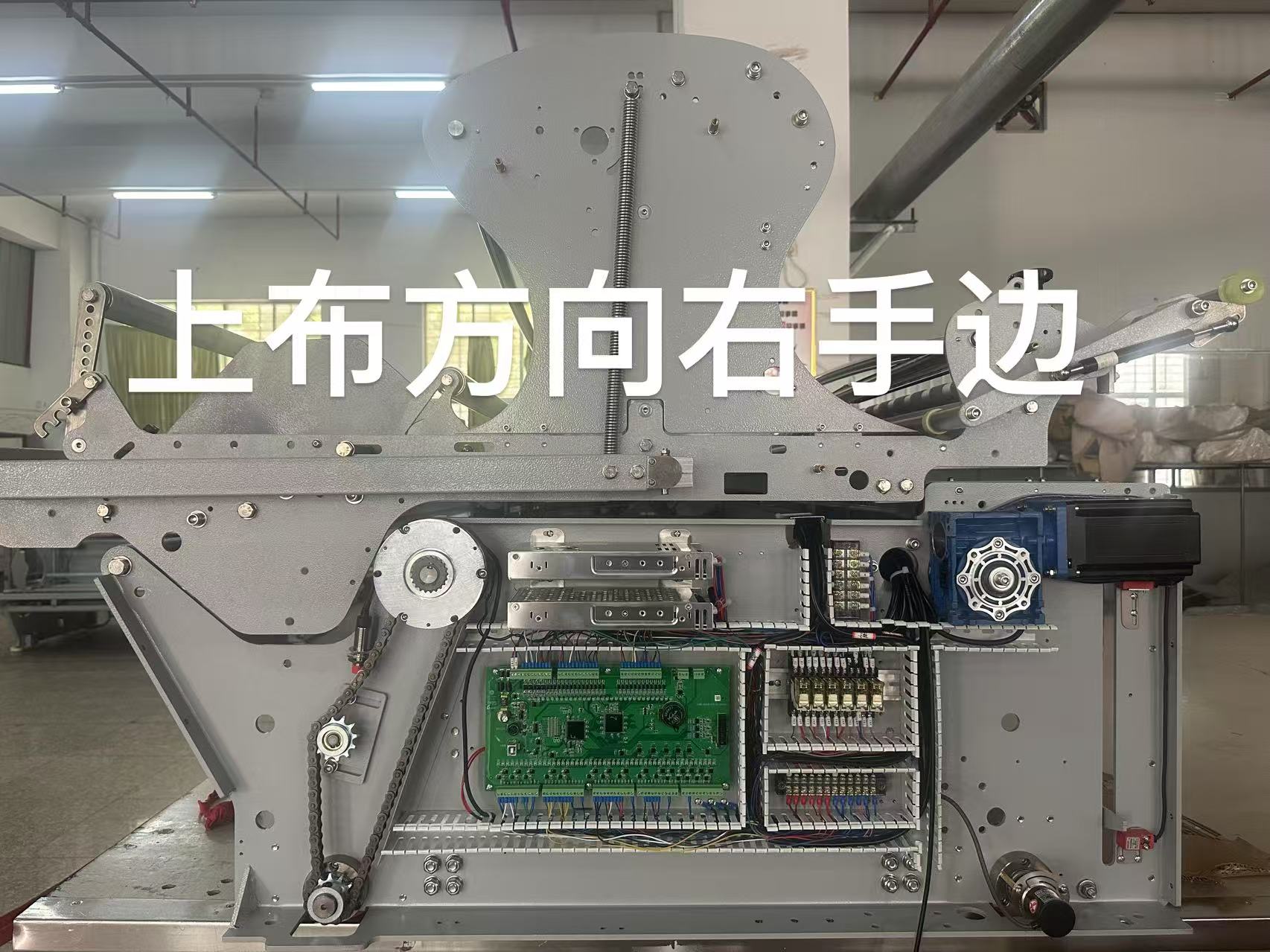

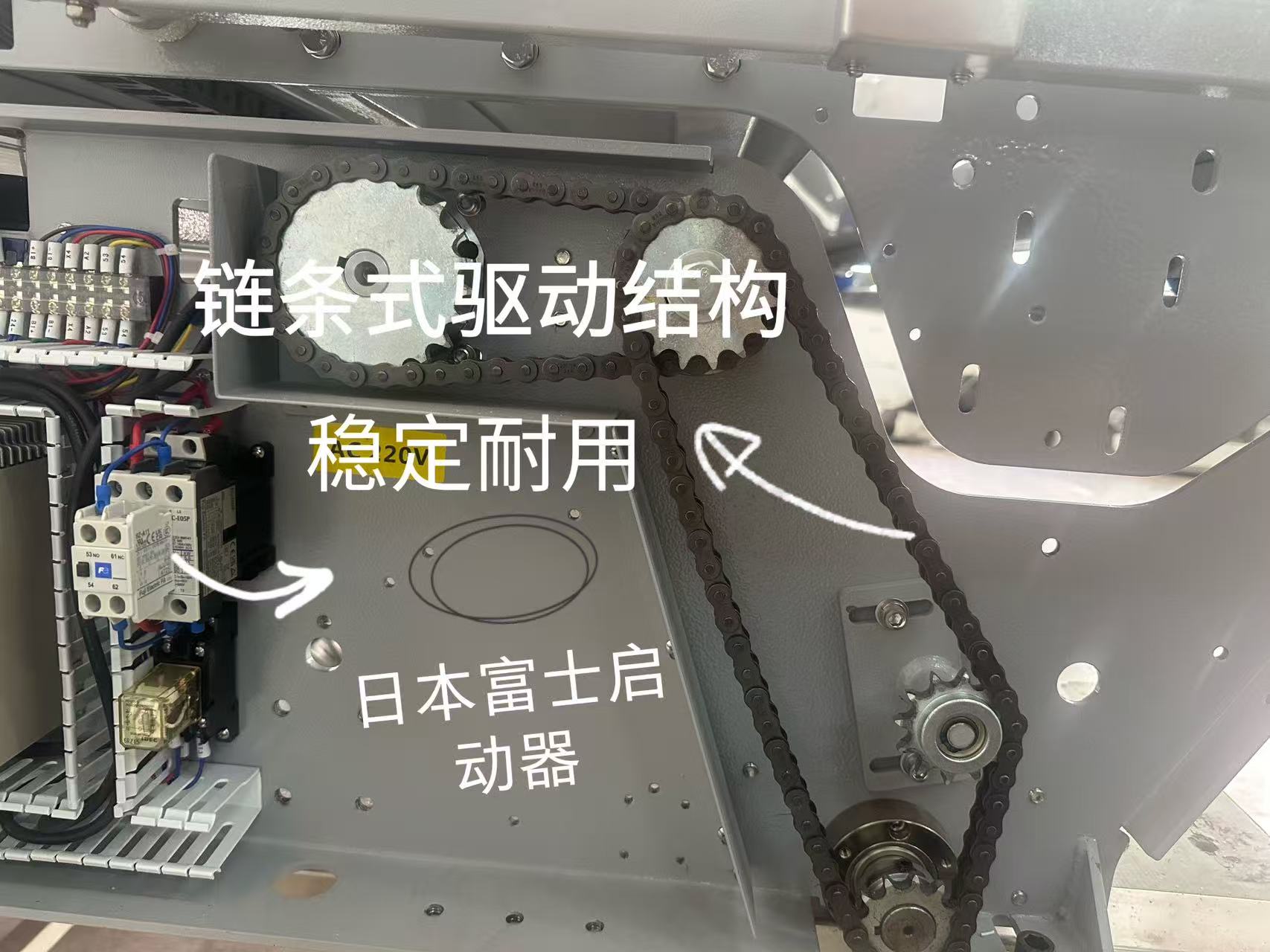

MAIN DEVICE
1. Touch panel display: easy to set up the length, number of layer, speed and steps.
2. Fabric expanding device: it can be adjusted according to the different width and tension of fabrics, making fabrics free from tension.

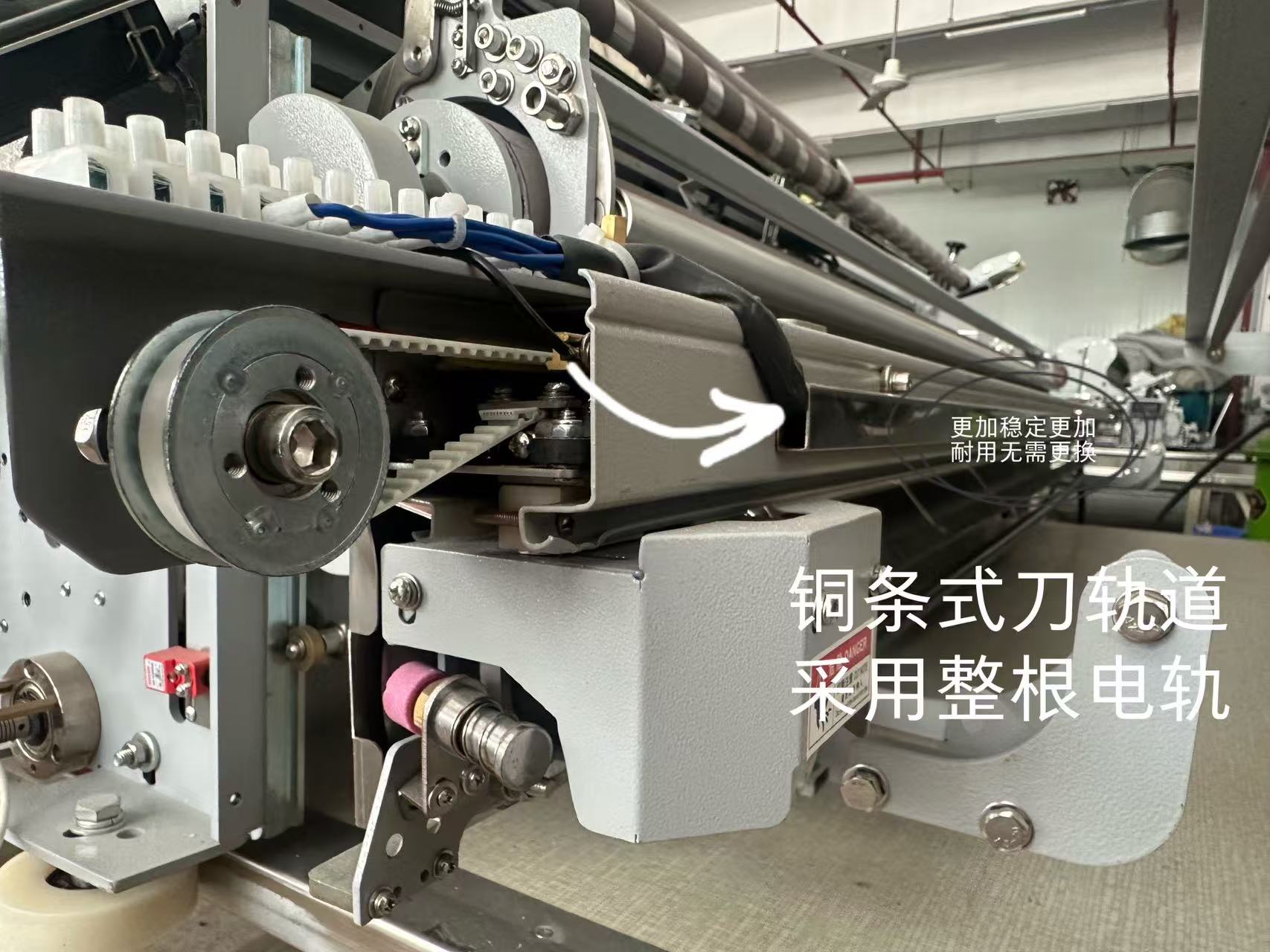

3. Cutting device: the auto-cutter can be easily dismounted. Travel length and speed of cutter are adjustable.
4. Automatic fabric relaxing control: to relax the fabric in advance and release the tension during spreading the fabric.

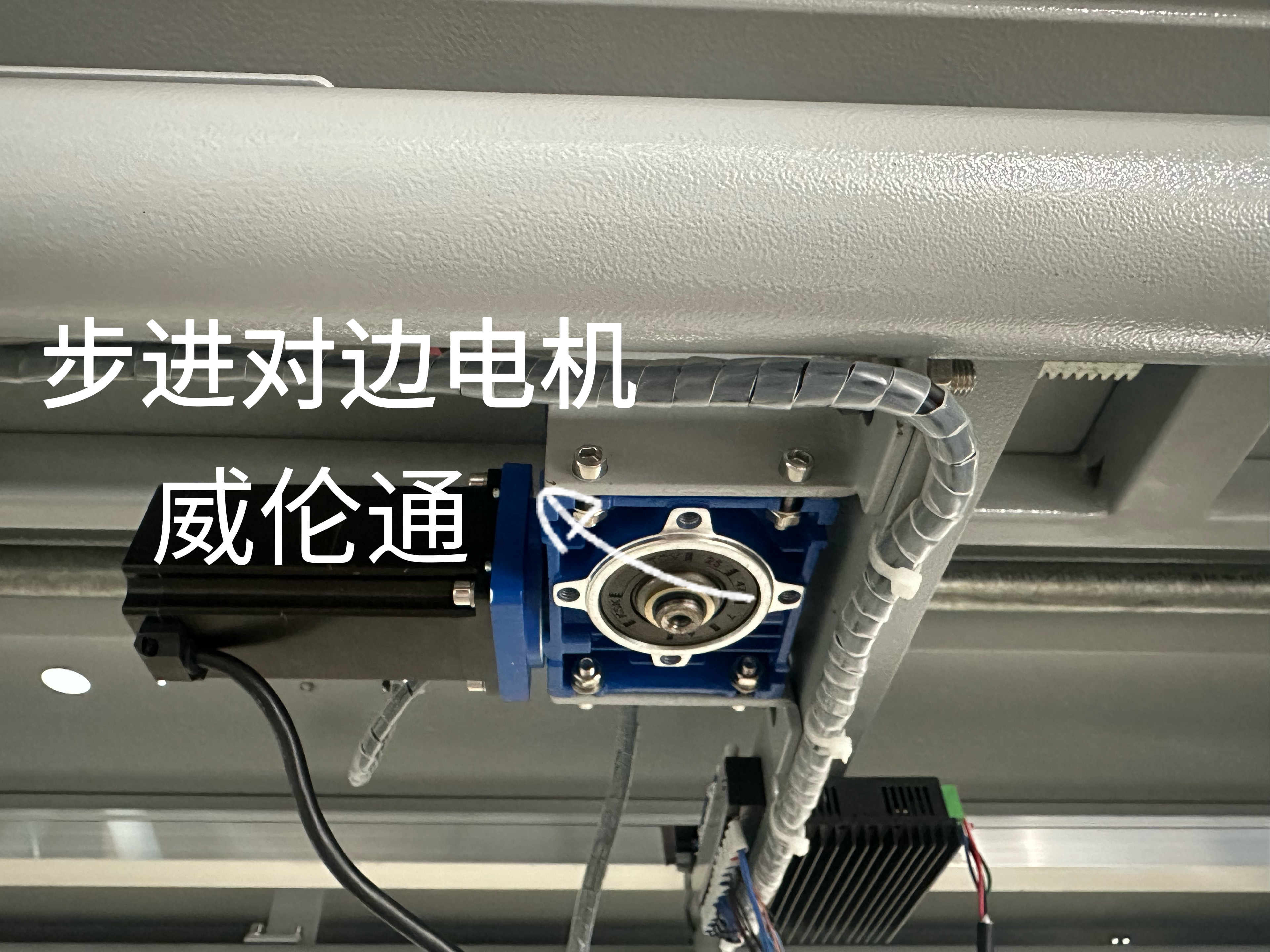

5. Edge control device: automatic edge control during spreading fabric.
6. Fabric lading sensor: machine returns back to original position once fabric runs empty.
7. Emergency stop: the brake lines are under two sides of table, and can be efficiently pulled upon emergency.
 |  |
STANDARD EQUIPMENT
1. Memory for set up of spreading length
2. Auto acceleration and deceleration by computer
3. Bucket type unwinding synchronized with relaxing function
4. Fabric setting bar and fabric expander
5. Working status lamp
6. Emergency stop
7. Auto-lifting device
8. Adjustable cutter travel length

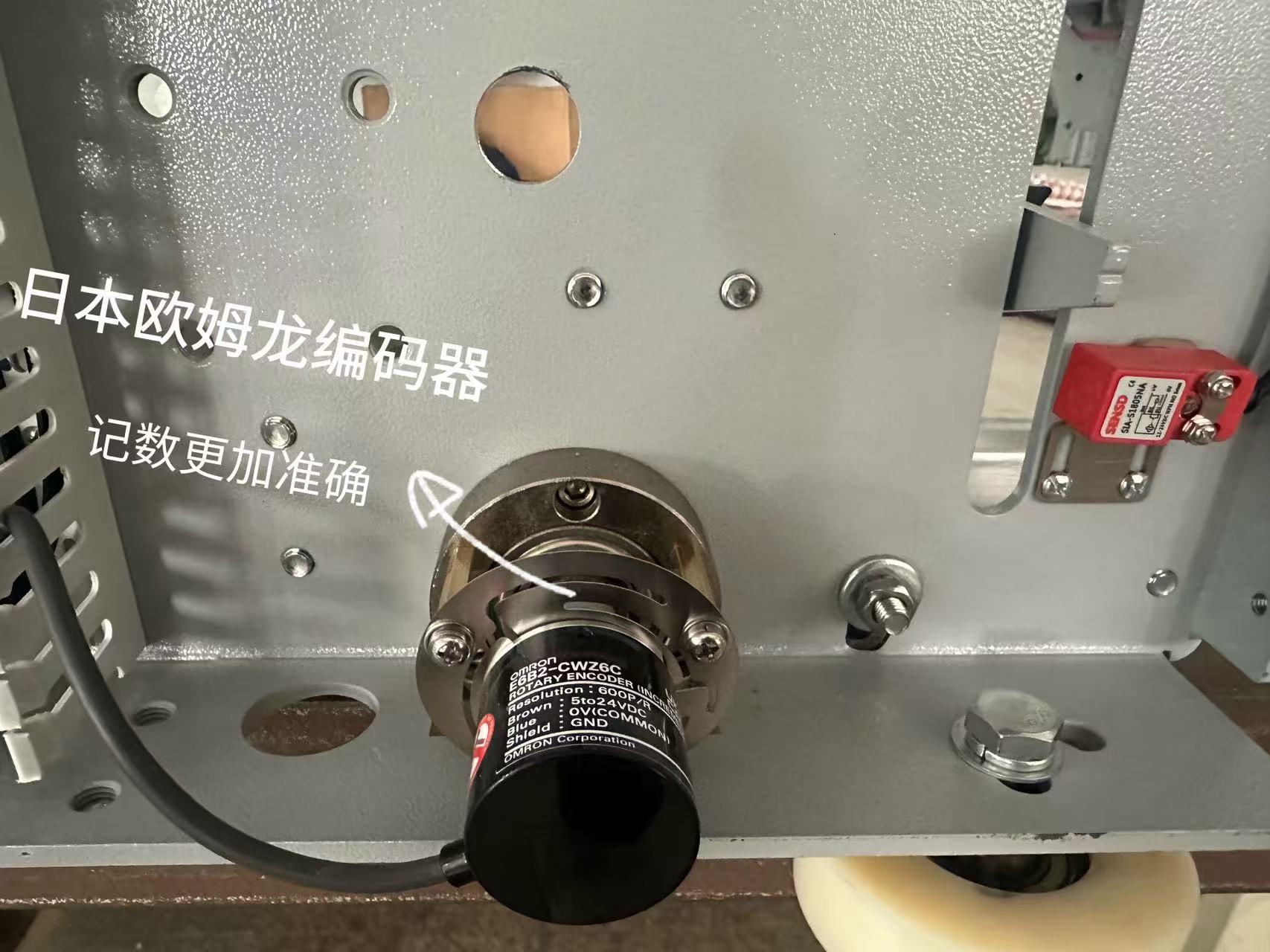

9. Layer counter
10. Edge control
11. Auto-cutter
12. Rewinding device (Cloth roll)
 |  |  |
PRODUCT PARAMETERS
Model | KWS-190 | KWS-210 | KWS-220 |
Power supply | 1P/220V | 1P/220V | 1P/220V |
motor | 1KW | 1KW | 1KW |
Maximum cloth width | 1900mm/75” | 2100mm/83” | 2200mm/86” |
Table width | 2130mm/84” | 2330mm/92” | 2430mm/96” |
Machine weight | 340kg | 360kg | 395kg |
Weight of cloth roll | 60kg max | 60kg max | 60kg max |
Diameter of cloth roll | 450mm max | 450mm max | 600mm max |
Travel speed | 90m/min max | 90m/min max | 110m/min max |
Machine dimensions | 2600*1800*950mm | 2800*1800*950mm | 2900*1900*1000mm |
Packing dimensions | 2800*2000*1250mm | 3000*2000*1250mm | 3000*2000*1250mm |
N.W/G.W | 570/860kg | 610/970kg | 645/1065kg |
Lay height | One way 220mm, KWS-H 300mm Face to face 150mm, KWS-H 230mm | ||
Spreading methods | One-way spreading (face up) Zigzag spreading (face to face) Multiple length spreading (face up) | ||
FAQ
Q1: Does the equipment support adaptive adjustments for different fabrics?
A1: Yes, the machine offers the following functions:
- Adjustable cutter travel: Adapts to fabrics of varying thicknesses or elasticity.
- Auto-lifting device: Dynamically adjusts height based on layering thickness.
- Expander and positioning bar: Flattens lightweight or edge-curling fabrics.
Q2: How to preset spreading parameters (e.g., length, layers)?
A2: Input values directly via the human-machine interface (touchscreen) or recall pre-stored process templates, enabling rapid switching between production tasks.
Q3: How to resolve fabric misalignment or tension anomalies during operation?
A3:

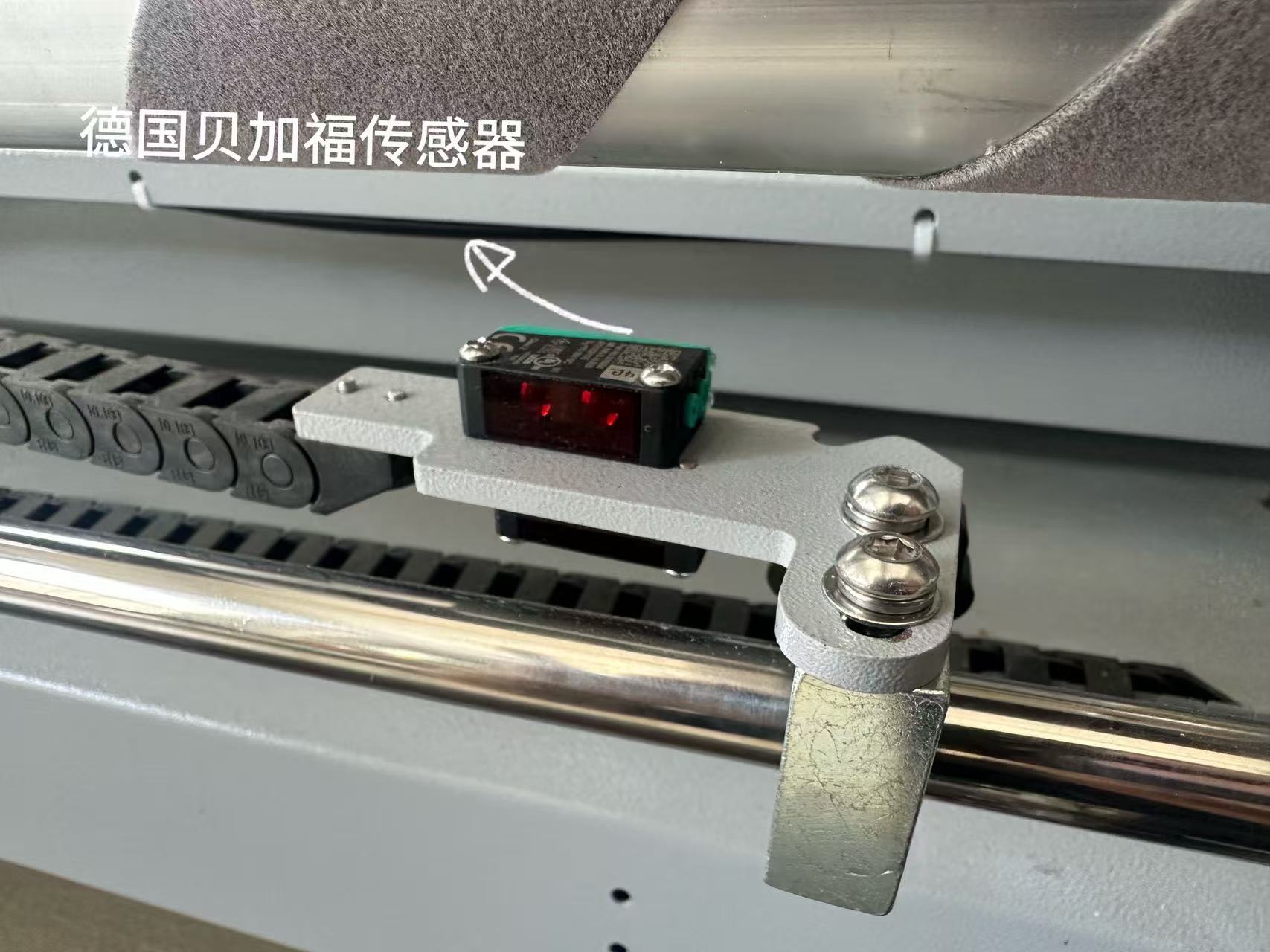

- Automatic edge correction: The edge control system monitors and adjusts fabric position in real time using photoelectric sensors.
