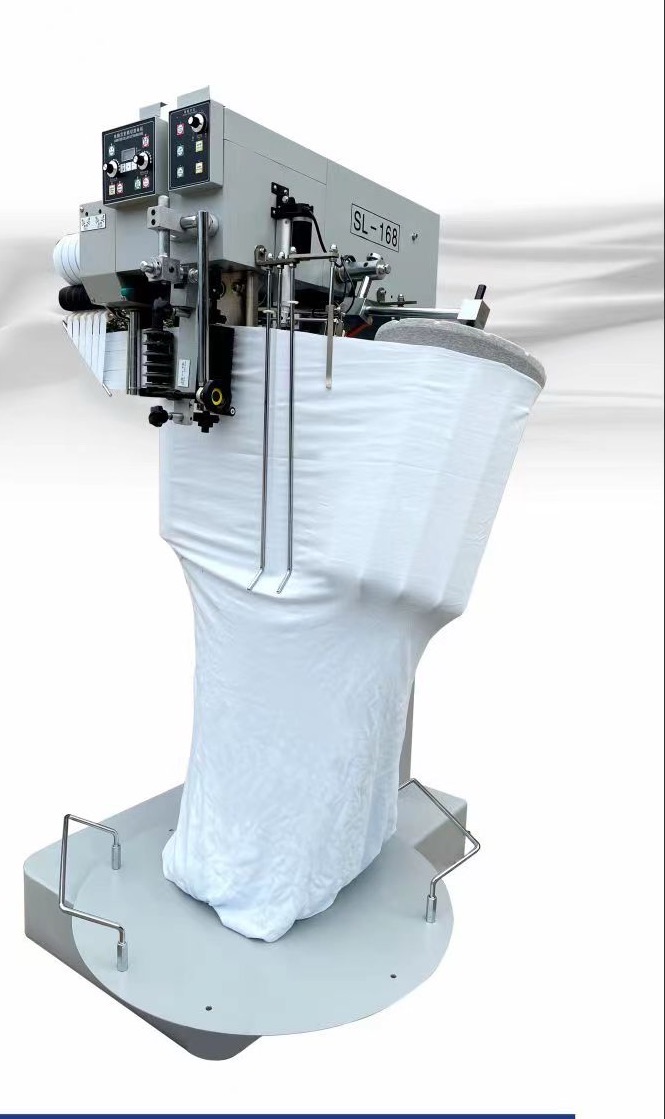

PR-168
PRIORITY
PRODUCT ADVANTAGES
1. Automatic Edge Alignment Technology: Equipped with high-precision sensors to automatically detect fabric edges and adjust alignment, ensuring uniform cutting and minimizing manual intervention.
2. Multi-Reel Cutting System: Supports simultaneous cutting of 1–3 reels, adaptable to single cutter (20–160mm), double cutters (20–80mm), and three cutters (20–54mm) modes, meeting diverse slitting width requirements.
3. High Precision and Stability: Slitting width error is only ±1.5mm. Combined with the chassis fine-tuning points (-100 to +100), it achieves millimeter-level precision positioning, suitable for complex cutting of elastic fabrics and tubular knitted materials.
4. High-Efficiency Production Performance: Main machine speed reaches 1400 RPM, with an extended speed range of 120–1300 RPM. Capable of processing ultra-long strips (1M–9999M) and handling fabric widths from 300mm to 2000mm, ideal for large-scale continuous operations.
PRODUCT PARAMETERS
Number of slit reels | 1-3 reels |
Slitting width | 20-160mm single cutter 20-80mm double cutters 20-54mm three cutters |
Slit width error | ±1.5mm |
Main machine speed | 1400r/min |
Fabric width | 300-2000mm |
Voltage | 220V/50Hz |
Host speed of expansion | 120Rpm-1300Rpm |
Roll length of the article | 1-9999m |
Fine-tuning chassis | -100-+100 |
Power of motor | 0.2KW |
PRODUCT USES
1. Apparel and Underwear Manufacturing: Precision cutting processes such as piping edge trimming, collar trimming, and cuff inlay.
2. Textile Processing Factories: Meets bulk production requirements and adapts flexibly to inlay and trimming needs of varying widths, such as curtain piping and box packaging decorative strips.
3. Knitted and Stretch Fabric Processing: Designed for highly elastic, easily deformable tubular knitted fabrics (e.g., ribbed fabric, stretch knits). The machine’s chassis fine-tuning function ensures precise adaptation to fabric properties, preventing stretching or distortion during cutting.
