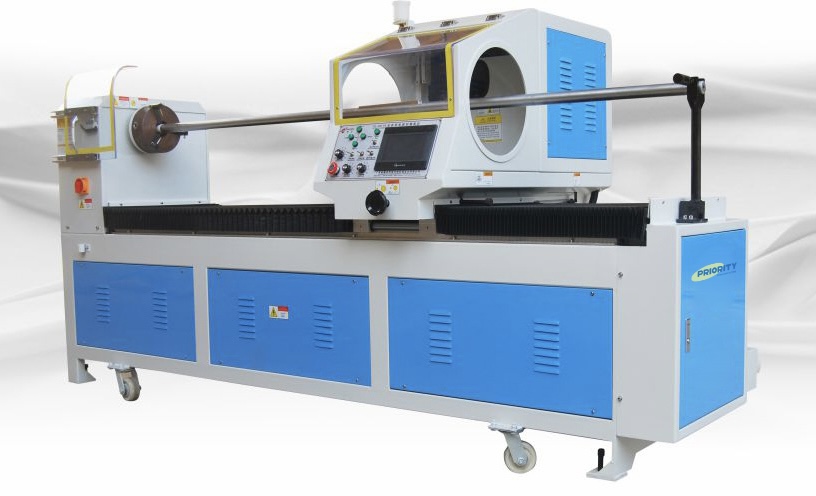

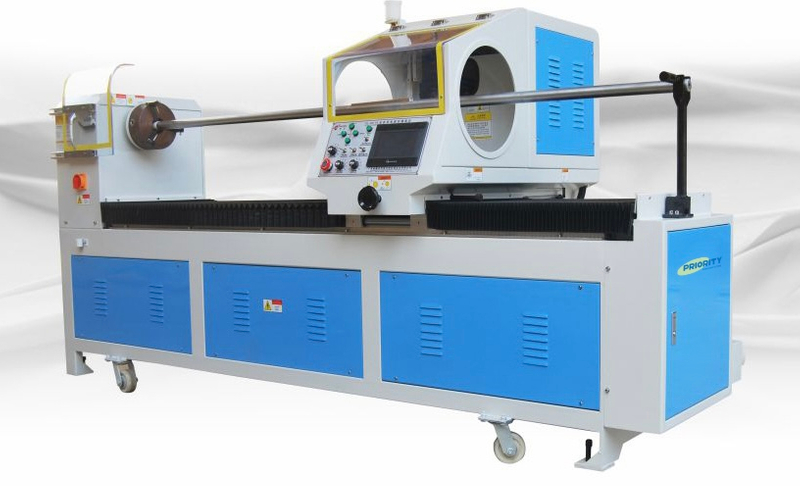

PR-2011A
PRIORITY
PRODUCT FEATURES
1. Ultra-wide Cutting Range
Supports 5mm to 1680mm strip cutting width, adaptable to various materials including fabrics, films, polyester, and other flexible or composite materials. With a maximum cloth roll diameter of φ280mm and a loading width of up to 2100mm, it efficiently handles large-sized materials.
2. Intelligent and Precise Control
- Utilizes PLC-programmed data input and a visual human-machine interface (bilingual in Chinese and English), offering simple and intuitive operation for quick mastery by general workers.
- Stepper motor drive and electronic frequency conversion speed regulation technology ensure near-zero cutting dimensional errors. Automatically completes five different sizes of cutting in a single layout (supports imperial/metric unit switching).
3. Safety and Environmental Protection
- Fully enclosed blade design (blade diameter: φ400mm) combined with electric eye real-time monitoring ensures high safety standards.
- Built-in eco-friendly suction system automatically removes dust and debris generated during cutting, maintaining a clean workshop environment.
4. High Efficiency and Durability
- Manual-automatic integrated sharpening system allows simultaneous cutting and blade sharpening. Downtime can be customized to extend blade lifespan.
- Compact machine structure (2800×1250×1400mm) fits diverse production scenarios. With a low power consumption of 3kW and support for 220V/380V dual voltage input, it ensures energy-saving operation.
PRODUCT PARAMETERS
Strip width | 5mm-1680mm |
Cutter diameter | Φ400mm |
Maximum cloth roll diameter | Φ280mm |
Voltage | 220V/380V/50Hz |
Power | 3KW |
Dimension | 2800*1250*1400mm |
Maximum width for loading: 2100mm
PRODUCT FEATURES
1. Microcomputer programmed data input, visual interface for operation and easy & comfortable start-up.
2. Programmed data control, servo motor drive, accurate size for the needs, five different sizes (toggle between English and metric units) of cutting on the same cloth beam; once the machine is started, it can complete cutting once in a time.
3. Magic eye for the monitoring of cutting, electronically-tuned cutting rate, electronic transduction for the principal axis of cutter.
4. Magic eye for the monitoring manual or automatic knife sharpener and sharpener; the time for pause can be set and the sharpeners can work simultaneously.
5. Chinese &English operating interface, which is suitable for many languages; it is simple and understandable for ordinary workers.
6. Slitting accurately for different material (not only fabric but also some film, polyester etc.)
7. Completely enclosed blade for a high safety factor.
8. Vacuum unit to remove excess trimmed material and sharpening dust.
