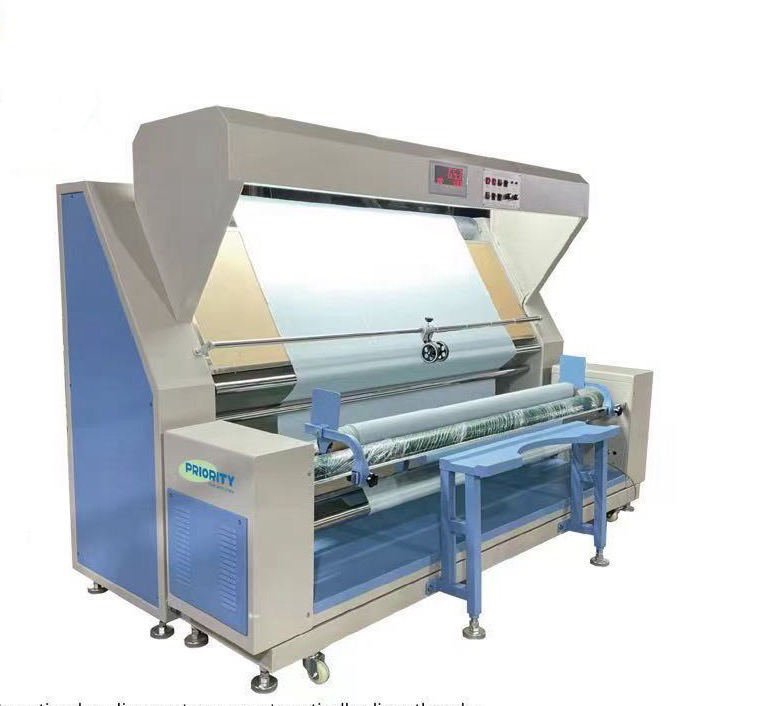

SQ-HB-862
PRIORITY
PRODUCT FEATURES
1. Automatic rolling.
2. The infrared automatic edge alignment sensor automatically aligns the edge.
3. Electronic mechanical code table (can be switched to meter).
4. The fabric inspection area adopts upper and lower inspection light boxes, equipped with high-quality acrylic boards, which can reduce operator eye fatigue with sufficient light.
5. The power part adopts dual frequency conversion and dual motors, which can be stopped separately and linked to adjust the speed.
6. Electronic adjustment of fabric elasticity and tension.
7. Equipped with a foot pedal jog pause switch (and can be switched between using the normal roll/foot switch. Press the foot pedal to stop when the normal roll is turned on, and press the foot switch to run when the foot switch is turned on).
8. Equipped with two comb edge shafts.
9. The whole machine uses stainless steel cloth guide rod.
10. The working height of winding is 740mm, with a minimum fabric loading height of 470mm and a maximum fabric loading height of 1600mm.
11. The whole machine uses movable universal wheels for easy movement, and also has fixed foot cups.
PRODUCT PARAMETERS
Voltage | Motor power | Working speed | Inspection width | Machine size |
AC220V | 1.5KW | 0-50m/min | 2200mm | 2740*1350*1800mm |
PRODUCT USES
Ideal for denim fabric manufacturers, textile quality inspection centers, and large-scale garment enterprises. It is particularly suited for high-precision fabric inspection, rolling, and batch quality inspection processes, effectively enhancing efficiency and quality control standards.
FAQ
Q1: What industries is this machine suitable for?
A1: It is ideal for:
- Denim fabric manufacturers
- Textile quality inspection centers
- Large-scale garment production enterprises
- Any facility requiring high-volume fabric inspection and batch quality checks.
Q2: How does the machine ensure operator comfort?
A2:
- Low-Fatigue Lighting: Dual upper/lower light boxes with acrylic panels provide uniform illumination.
- Adjustable Height: Winding height ranges from 470mm to 1600mm.
- Foot Pedal Control: Allows hands-free operation for emergency stops or mode switching.
Q3: What maintenance is required?
A3:
- Regularly clean stainless steel components to prevent dust buildup.
- Lubricate moving parts as per the user manual.
- Inspect infrared sensors and motors periodically for optimal performance.
Q4: Does the machine come with a warranty?
A4: Yes. The SQ-HB-862 includes a standard 12-month warranty covering manufacturing defects. Extended warranty options are available upon request.
