PRODUCT ADVANTAGE

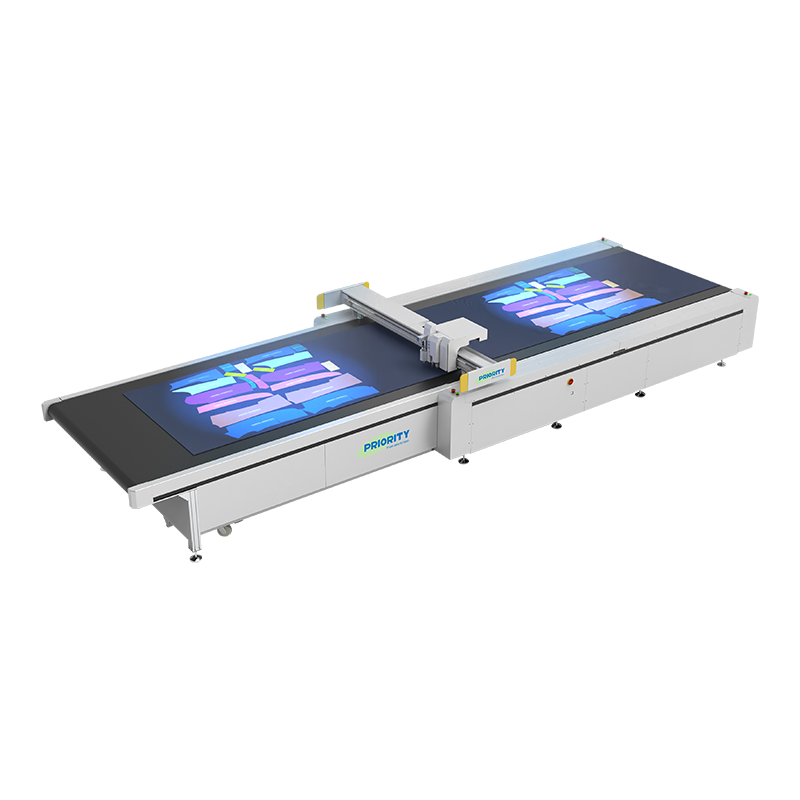

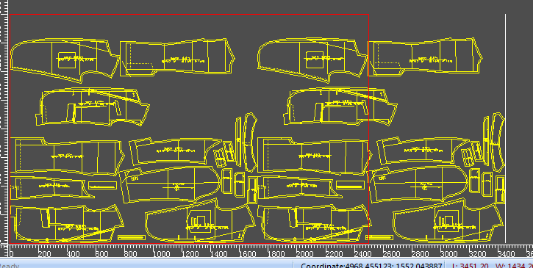

1. Continuous rolling machine: for coiled material or long material, multiple pieces are arranged in sets, and the moving table can be continuously cut. Realize flow operation, reduce manual intervention and reduce manual paving.
2. The 3m material receiving area can directly translate the cutting, so that the material receiving and cutting can be carried out at the same time
3. Cut with a round knife to reduce the damage of the felt and the cost of the blade, zero clearance layout and zero over-cutting.
4. The dust removal device can meet the requirements of dust removal when cutting multi-color fabrics, as well as felt dust removal.
5. The standard configuration adopts the active round knife module, the cutting module, the marking module and the drilling module.
6. Realize the docking of ERP and MES ports, realize data flow, and eliminate human input errors
TECHNICAL PARAMETERS
Model No. | DG3016L30 |
Machine Siz（MM） | 7280*2408*1200（with 3.0m Material Collecting Table） |
Machine N.W(KGS) | 1500 |
Effective cutting range (MM） | 3280（L）x1600（W） |
Cutting accuracy (MM) | ≤0.1 |
Maximum cutting speed (MM/S) | 1500 |
Cutting tool | Round knife module, cutting and punching module, drilling module, pen module |
Cutting material | Wool, cotton and linen, chemical fiber, polyester or blended, and other clothing fabrics |
Fixed mode | Vacuum adsorption |
data format | Dxf, PLT, hpgl, cut, NC, PDF |
Data transmission interface | network interface |
working voltage | 220V/380V/50-60HZ |
Air pump power (KW) | 9.0*1 |
Upper computer software | It can dock cloud platform data, I/O data of automatic production line, ERP, etc, |
Internet of Things technology | The main computer can understand the working status of each cutting machine in real time and issue cutting documents |
Overcut processing | With over-cut point recognition, over-cut processing, automatic recognition of multiple cuts |
Machine upgrade maintenance | The mainboard program supports remote upgrade, and the machine failure rate is low |
| | |
PRODUCT USES
- Apparel Industry: Cutting paper patterns, garment panels, lining fabrics, etc.
- Footwear, Hats, and Luggage: Cutting leather, synthetic leather, and lining materials.
- Industrial Sector: Trimming composite materials for automotive seats, airbags, soundproofing cotton, and more.
Functions:
1. Material receiving platform (synchronous transmission), the cut material is directly received in the material receiving area (the transmission speed is faster after the cutting of one bed. If there is no material receiving platform, the cut pieces can not be received in time, which will cause low work efficiency, and it is very difficult to collect and sort the cut pieces)
2. The automatic cutting machine adopts a single-beam single-head multi-head structure, and is equipped with active round cutter, drag cutter, and vibrating cutter (multiple cutters can be installed at the same time to cut multiple composite materials, without frequent manual tool replacement)
3. The equipment has sufficient safety performance. The adopted instruments, meters, sensors, controllers, vacuum pumps, various valves and other components have high accuracy, high stability, strong reliability, and convenient use, operation and maintenance of the equipment.
90% of the core parts of the automatic cutting machine are purchased from foreign or joint venture brands to ensure the accuracy and stability of the equipment; All control technologies are independently developed by PRIORITY. After years of running-in and improvement with high-end customers in various industries, they provide targeted customized solutions for various industries.
4 . Feeding mode: automatic feeding; The material of the material receiving (manual) table top has no pollution to the material and is easy to clean and replace.

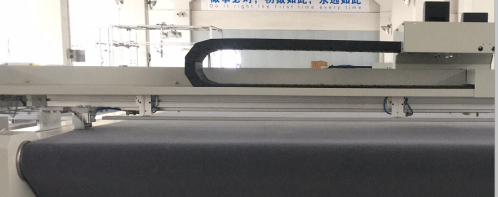

The automatic cutting machine adopts a roller structure, and the table is covered with a layer of 4.5mm imported felt crawler for transmission (hard PU material crawler is optional), which can realize automatic feeding; The equipment works with the material receiving platform, and the material can be collected manually on the material receiving platform. The material of the table top does not pollute the material.
5. Automatic passive dust removal device can be provided to clean the debris of cutting materials.
6. Advanced control system, user-friendly software interface independently developed by PRIORITY, user-friendly equipment operation, automatic cutting and blanking can be realized by importing *. DXF file *. PLT file *. cut file and other formats
7. The automatic feeding equipment can cut the sample pieces that exceed the length of the equipment through paging output to realize the cutting and blanking of long sample pieces.
The bottom of the Y-direction beam of the automatic cutting machine is equipped with a cylinder press rod. After the cutting of a sample piece exceeds the range of 2.5 meters, the pneumatic system controls the press rod to press down to ensure that there is no relative sliding between the material and the felt. There is a tooth-shaped bayonet on the left and right sides of the beam. The pneumatic control system controls the bayonets on both sides to clamp the felt. The fan blows upward through the table hole to reduce the resistance and drives the felt to roll through the beam power. The docking error of the two beds is ≤ 1MM.
8. The cutting machine is equipped with a pen module as a standard, which can be used for cutting material marking function, and can also be equipped with an inkjet block for material marking (the marking speed of the inkjet module is 20 times that of the pen module)
The automatic cutting machine is equipped with a red cross, which can preview whether the cutting file is in the material area.
9 . Collision prevention function on both sides of the beam, collision stop, and safety guarantee.
10. The equipment is equipped with pause button, which can continue cutting in situ after emergency stop.
FAQ
Q1: What materials is the single-layer automatic cutting machine suitable for?
A1: It supports precise cutting of single-layer flexible or semi-rigid materials such as fabric, leather, synthetic leather, composite materials (e.g., automotive interiors), non-woven fabric, and soundproof cotton.
Q2: What is the cutting accuracy?
A2: Equipped with a high-precision numerical control (NC) system, the cutting error is typically controlled within ±0.1mm, ensuring intricate pattern cutting.
Q3: Does operation require professional training?
A3: The machine features user-friendly software (supports CAD file import), and basic operation is simple. However, basic training is recommended to master parameter settings and daily maintenance.
Q4: Is the equipment maintenance cost high?
A4: Daily maintenance mainly involves cleaning the guide rails and replacing blades, with low costs. Professional maintenance is recommended every 3–6 months to extend service life.
