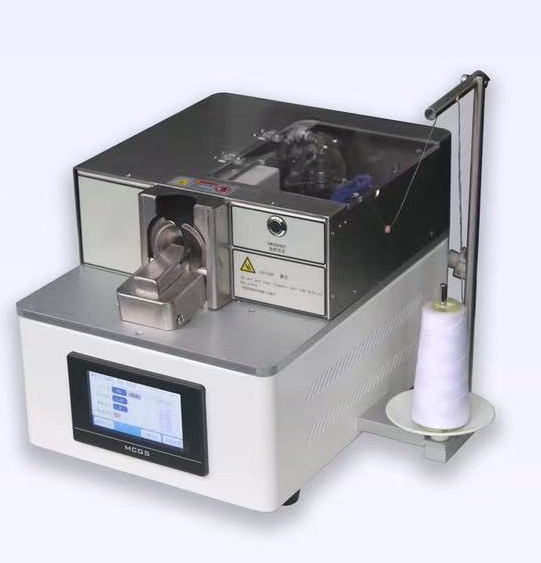

JZ-RK02
PRIORITY
1. High Efficiency, 300% Productivity Boost. Replacing labor-intensive traditional methods, the JZ-RK02 completes one knotting cycle in just 2.1 seconds, delivering a consistent output of 1200 pieces per hour. This represents a 300% increase in efficiency, drastically shortening production cycles and enabling businesses to respond quickly to orders.
2. Unique Cutter Design for Secure Knots at Low Cost. The machine features a unique cutting knife design, ensuring that even low-cost ordinary thread remains securely knotted and does not loosen. This effectively reduces material costs while eliminating after-sales repairs caused by loose knots.
3. Flexible Modes to Meet Diverse Needs. It offers four selectable knotting modes: FrontTie, BackTie, AllTie, NoTie, to meet the process requirements of different garments. The number of button loops is adjustable from 1-40, the number of knot programs can be set from 1-9, and the loose line height can be precisely set for uniform front-to-back winding, adapting to all types of sewing buttons.
4. Precise Thread Cutting for Controllable Quality. After cutting, the thread residue is controlled to ≤3.0mm, leaving only one thread end. This ensures a clean and neat button foot, avoiding snags and loosening caused by excessive thread ends. It is also equipped with an internal controllable LED light, allowing operators to clearly monitor the process and respond to anomalies promptly.
Item | Specification |
Power Supply | 100-240VAC 50/60Hz |
Total Power | 150W |
Wrapping Time | 2.1 seconds |
Unit Production | 1200 pcs/hour |
Efficiency Promotion | 300% |
Tie Mode | FrontTie, BackTie, AllTie, NoTie |
Number of knot programs | 1-9 |
Number of button loops | 1-40 |
Distance between button and cloth | 2-6mm |
Air Pressure | 0.5MPa |
Interface | LCD touch screen |
Button Type | All kinds of sewing buttons |
Size (L×W×H) | 49×39×30 cm |
Weight | 19kg |
In the competitive apparel market, the JZ-RK02 Auto Cut Knotting Machine is your ideal choice for boosting production efficiency and optimizing product quality:
· Cost Control: The unique cutter supports low-cost thread, while high productivity reduces unit labor and time costs.
· Stable Quality: Precise thread cutting and secure knotting minimize after-sales issues and protect brand reputation.
· Flexible Adaptation: Multiple knotting modes and adjustable parameters meet different process and fabric requirements.
· Professional Support: Suzhou Yunwen Automation Technology provides end-to-end technical support and after-sales guarantee for complete peace of mind.
The JZ-RK02 Auto Cut Knotting Machine, with professional quality and dedicated service, helps apparel enterprises reduce costs and increase efficiency in button post-processing, gaining a competitive edge in the market.
For more information about the JZ-RK02 Auto Cut Knotting Machine, please feel free to contact us.
