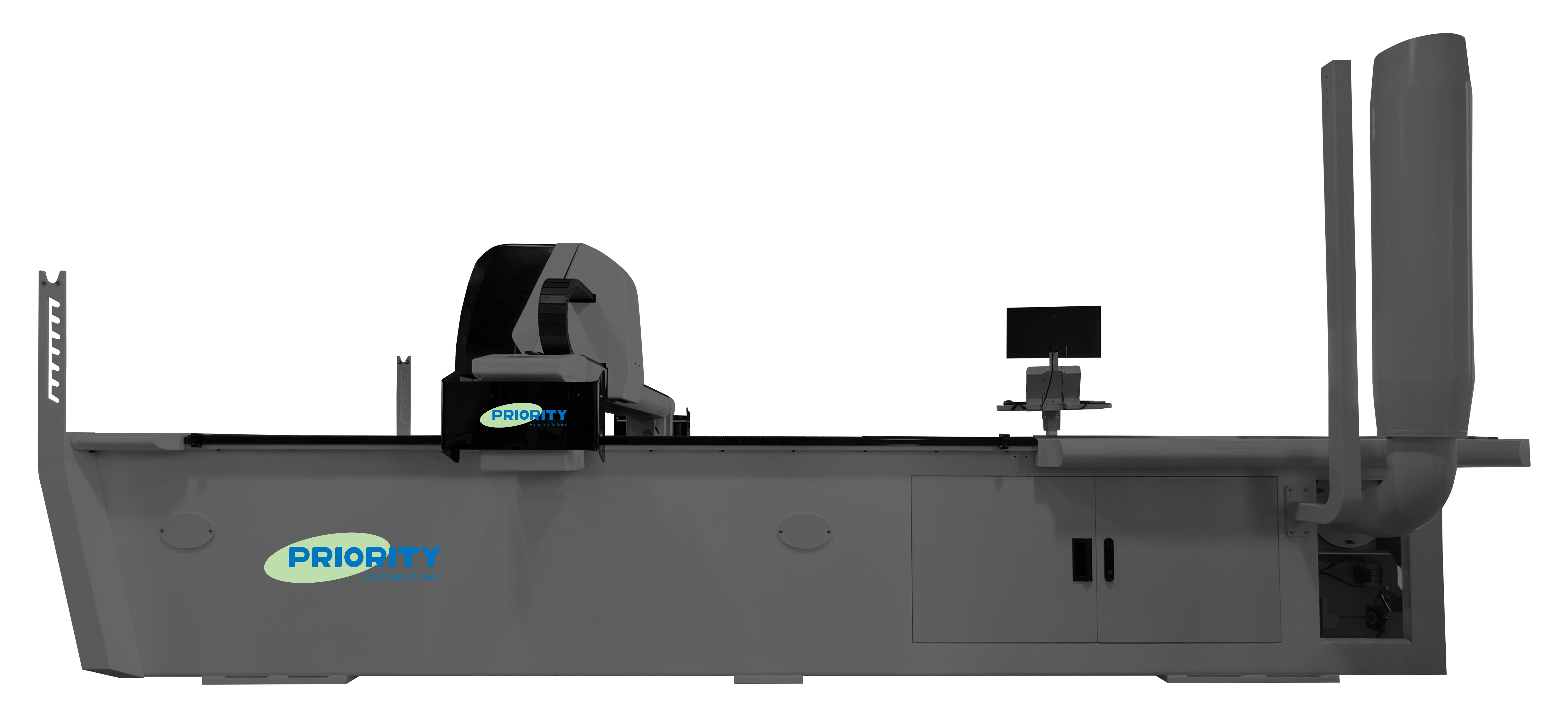

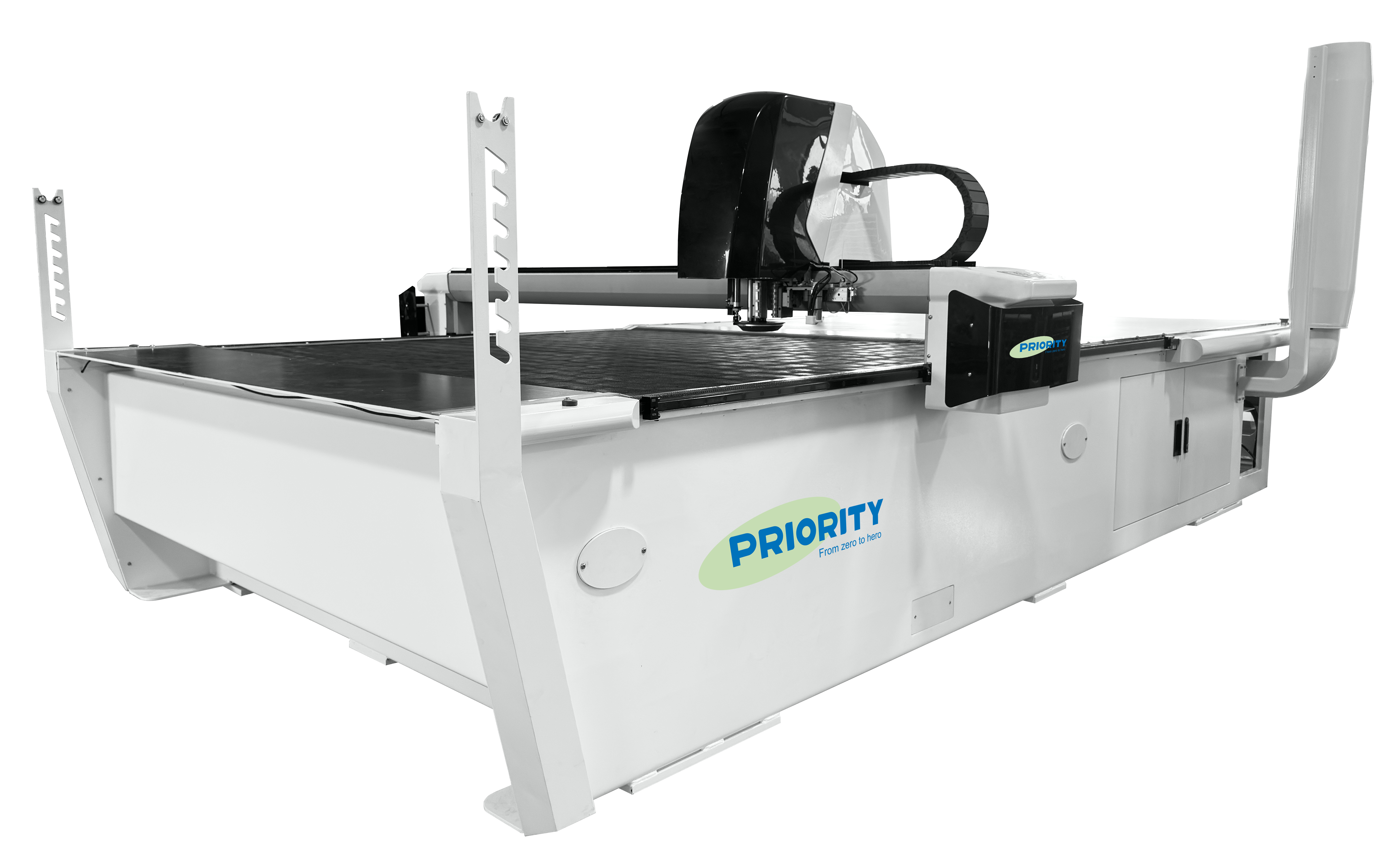

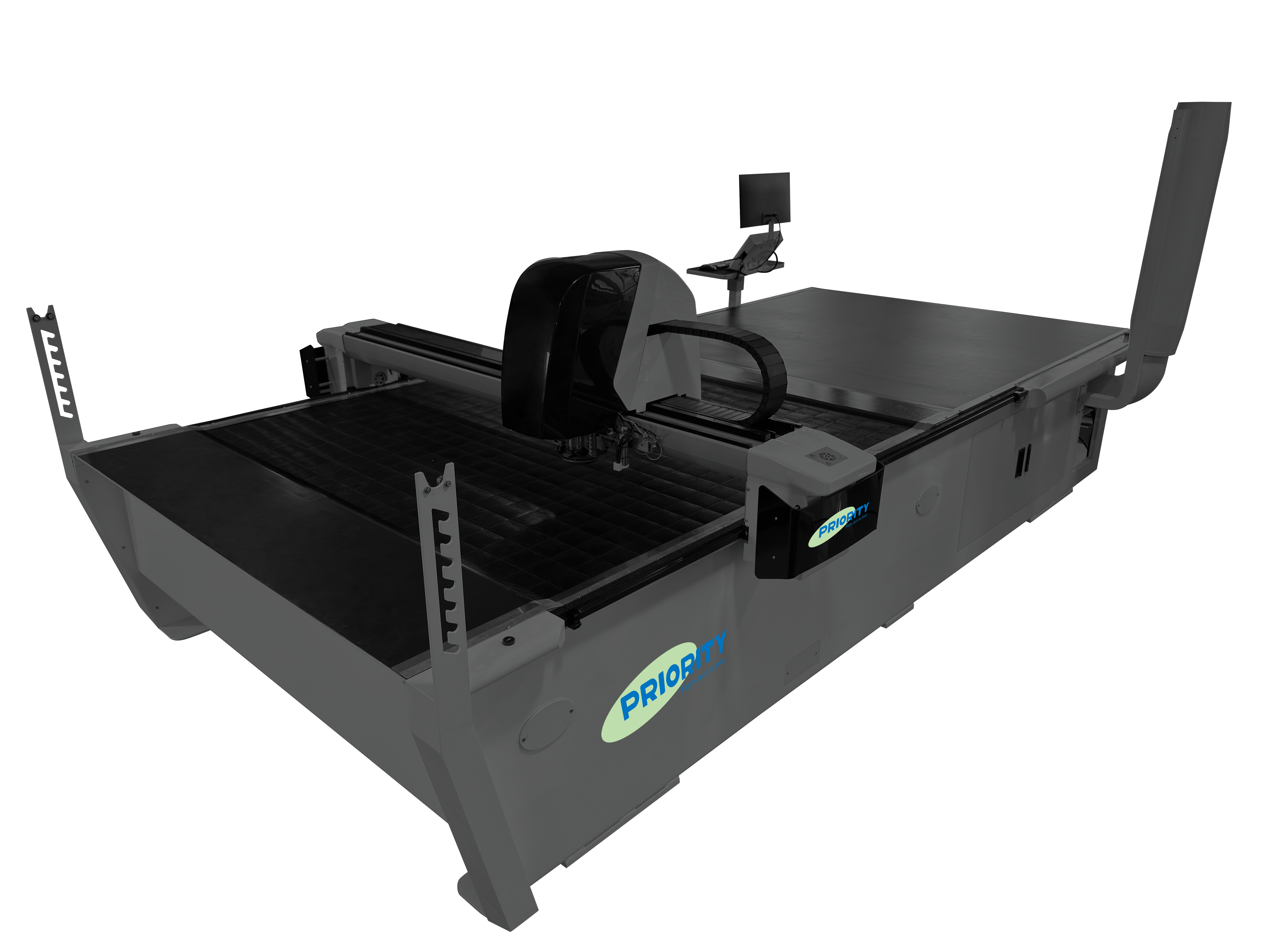

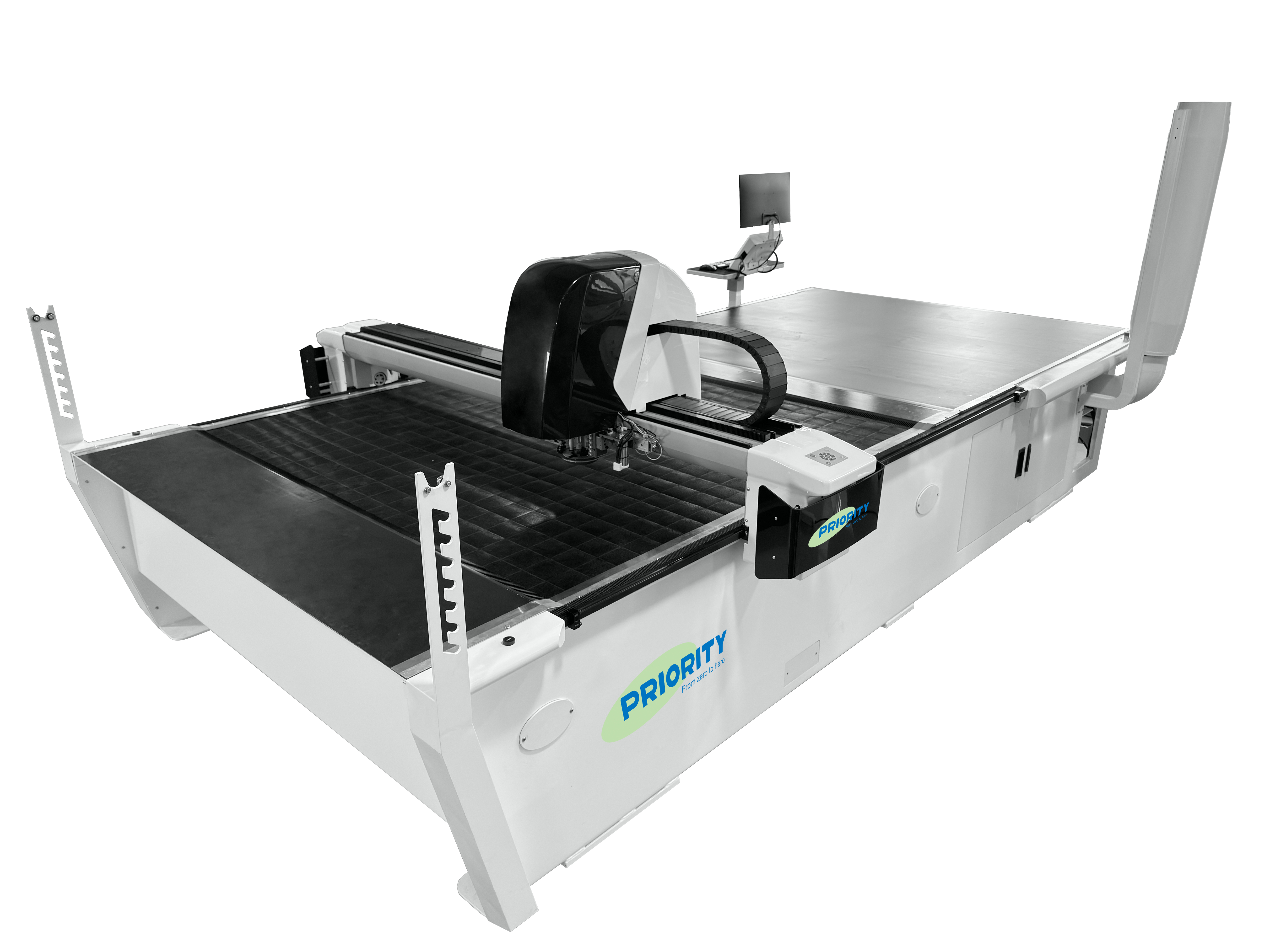

PR-P6/P9
PRIORITY
PR-P6: Maximum cutting height (after vacuum) 60 mm
PR-P9: Maximum cutting height (after air vacuum) 90 mm
Effective cutting area: 1800×1800 mm (optional extended width: 2200 mm), meeting the nesting requirements of most orders without frequent material separation for mass fabric cutting.
Maximum cutting speed: 80 m/min; Maximum acceleration: 8 m/s²
Dual drill bits, cutter cooling system and automatic cutter deviation correction system are standard configurations to guarantee consistent cutting performance during long-hour continuous operation.
Scrap recycling system is optional to keep the worktable clean and reduce manual cleaning work.
Overall machine dimension: 4927×2230(2630) mm;
Machine weight: 3800–4200 kg. Robust frame structure ensures minimal vibration during high-speed operation.
Power supply: 3P/N/PE, AC380V/50Hz, Total power: 30 kW, Average power consumption: 12 kW.
Air supply requirement: Air flow 160 NL/min, compressed air pressure 0.7 MPa.
Vacuum adsorption: Max. negative pressure -222 kPa, firmly fixing multi-layer fabrics to prevent shifting during cutting.
Noise level: below 73 db, improving workshop working environment.
Powered by Windows operating system. Compatible with mainstream CAD formats such as Cutfile, ISO6983, RS274D, DXF, PLA, PLX. Directly connectable to various nesting software for simple and convenient file import.
1. High-precision & Stable Cutting
The standard automatic cutter deviation correction system controls dimensional errors of cut pieces during long-term continuous production, effectively lowering defect rates and saving fabric costs.
2. Flexible Model Selection
PR-P6 is suitable for mass production of medium-thickness fabrics; PR-P9 supports higher stacking thickness with stronger capacity for large orders. Enterprises can select models according to fabric thickness of orders.
3. Integrated Practical Configuration
Dual drill bits and cutter cooling device come as standard with no extra cost. The scrap recycling device can be optionally upgraded to meet production standards of clean workshops.
4. Easy Digital Connection
Compatible with mainstream commercial CAD nesting software. Complicated format conversion is unnecessary. The machine seamlessly connects upstream design and nesting processes to build a complete digital production chain.
5. Sturdy, Durable & Easy Maintenance
Heavy-duty frame ensures stable operation. Standardized pneumatic and electrical components facilitate convenient after-sales maintenance, sustaining continuous production for long-term operation.
Cutting of flexible materials: ready-made garments, suits, underwear, home textile sofa covers, luggage fabrics, automotive interiors, leather, non-woven fabrics, composite materials, etc.
Conclusion
PR series automatic cutting machines integrate speed, precision and durability. Replacing traditional manual cutting, they help factories shorten production cycles, reduce labor costs and improve the quality of cut parts. We provide full-range services including machine installation & commissioning, technical training and after-sales remote assistance, supporting enterprises to realize automatic upgrading of cutting procedures.
