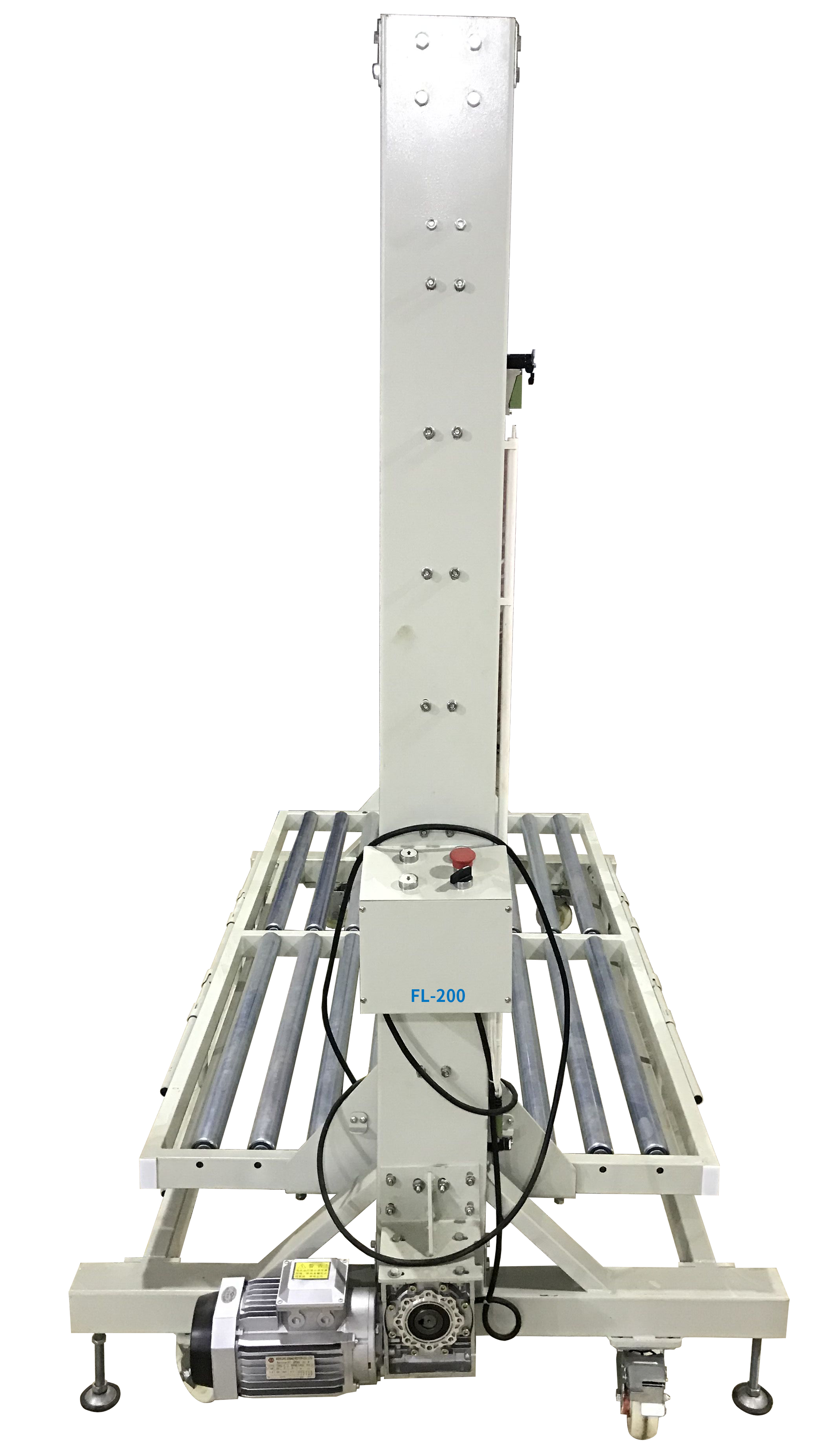

FL-200/YDJ200
PRIORITY
specifically designed for pre-cutting fabric feeding, it efficiently lifts and feeds rolled fabric, and adapts to various textile, luggage, and outdoor fabric production lines.
Machine dimensions: L2210 × W1000 × H2190 mm
Fabric platform lifting range: 400–1700 mm
Maximum load capacity: 300 kg
Power supply: 380V industrial power
Equipped with 5-inch heavy-duty swivel casters for flexible mobility and stable positioning.
The machine features a solid frame structure and a roller-type fabric platform that ensures smooth, jam-free unwinding, significantly reducing manual fabric lifting labor. Used together with cutting beds, it enhances overall cutting efficiency and is well suited for thick-material production scenarios such as denim, luggage fabric, and outdoor fabric.

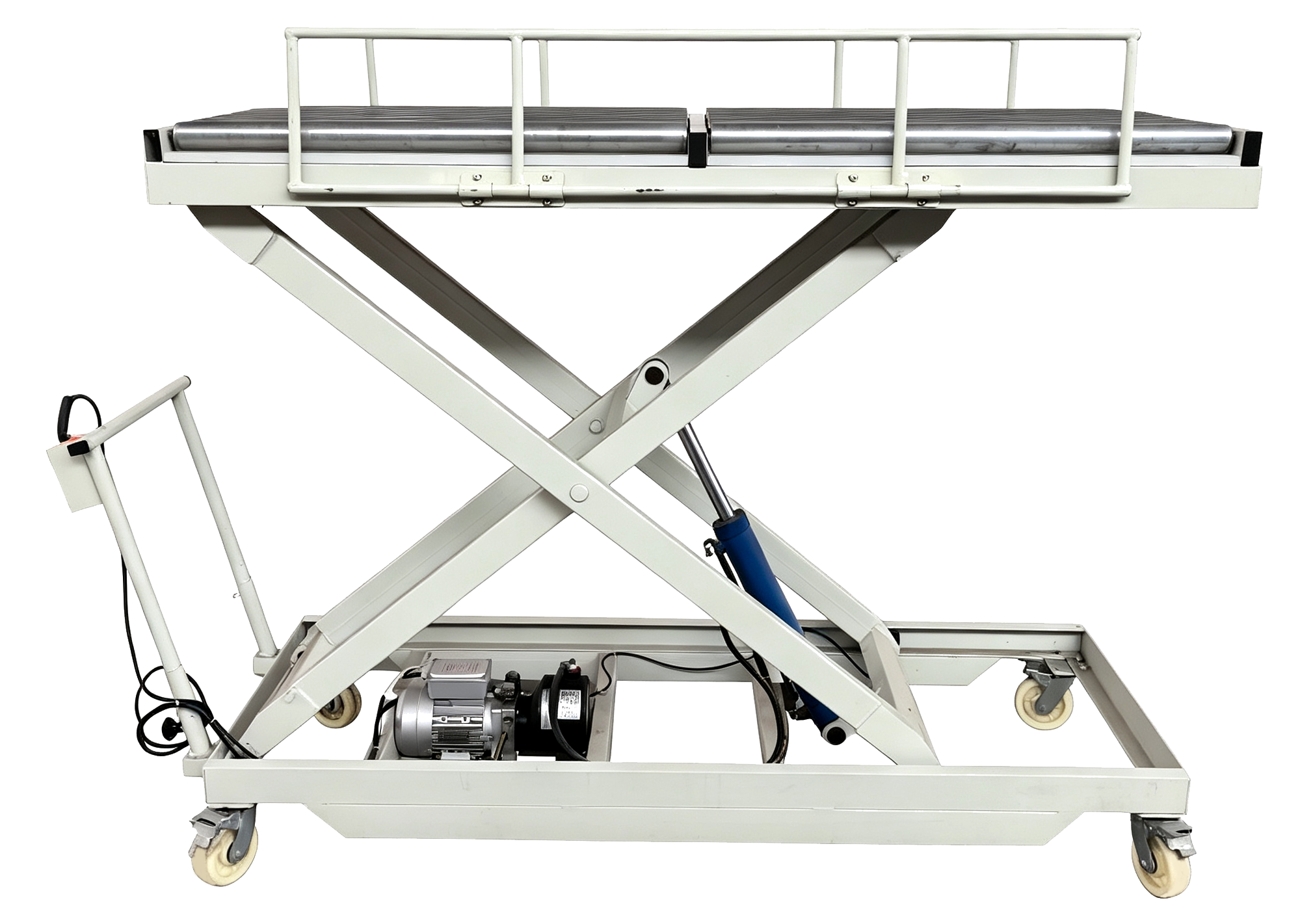

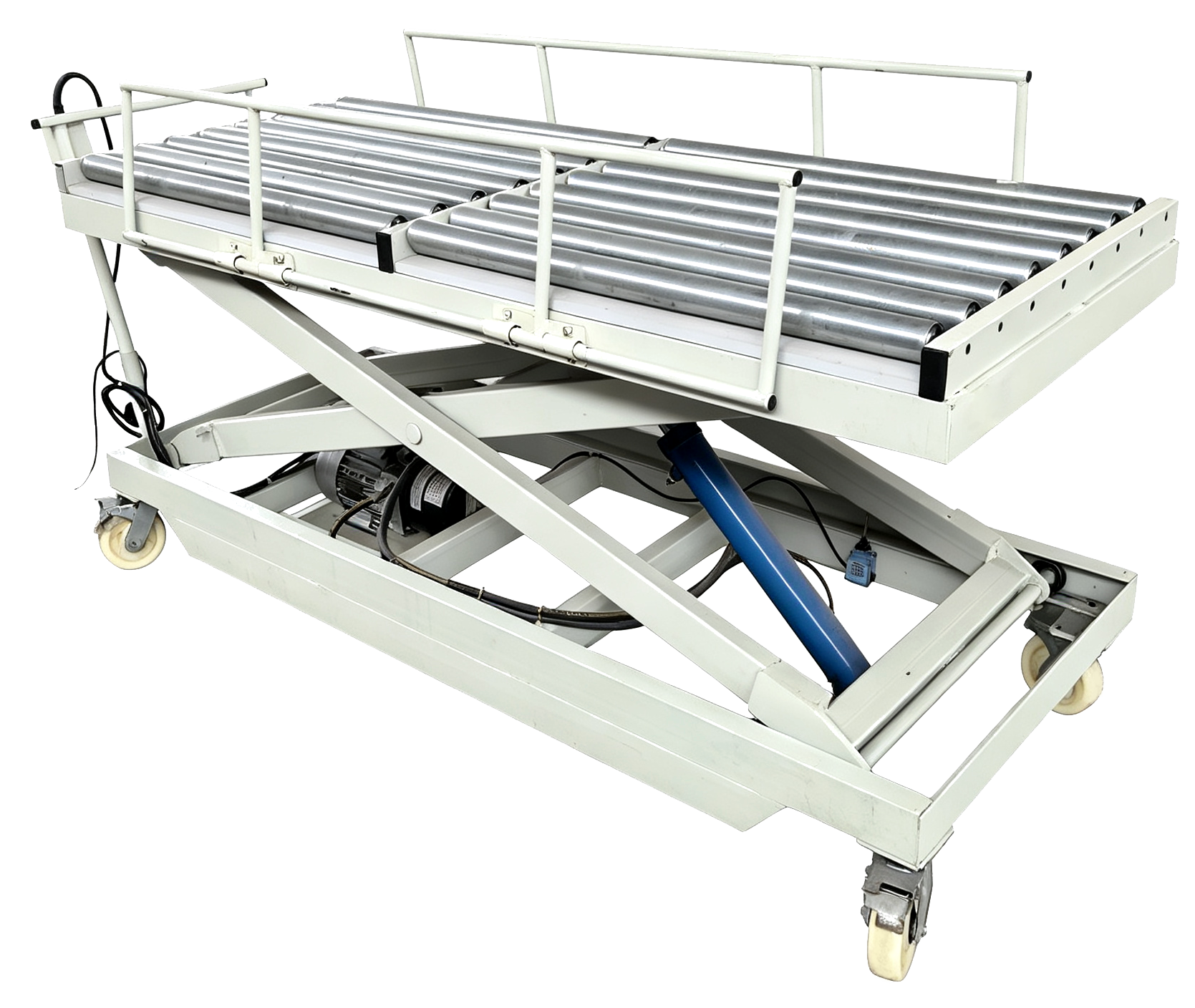

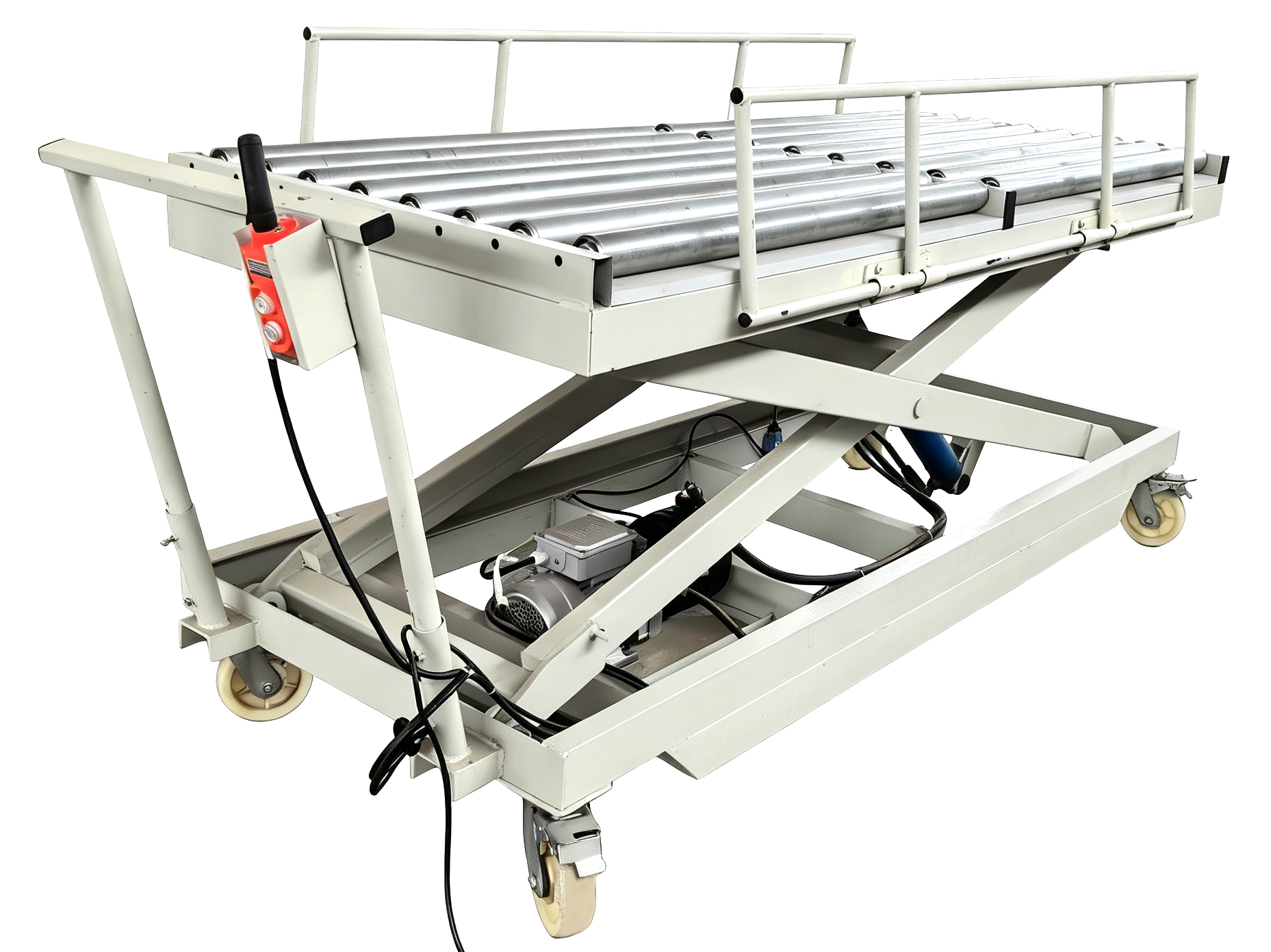

a hydraulic lifting fabric feeder with a stable and reliable single-cylinder hydraulic drive structure.
Machine dimensions: L2000 × W800 mm
Fabric platform lifting range: 450–1500 mm
Platform load capacity: up to 300 kg
Roller-type platform surface for smooth fabric feeding.
Fitted with mobile casters at the base for easy repositioning within the workshop.
The hydraulic lifting runs smoothly with low noise and simple operation, quickly raising fabric to the cutting bed feed height while reducing the safety risks of manual loading. Its compact design takes up less floor space, making it well suited for small-to-medium cutting bed workshops.
