Transforming a digital clothing design into precise fabric pieces requires absolute accuracy. Even a minor deviation in a pattern compromises the final garment fit. Traditional manual cutting methods often invite human error. They also slow down tight production cycles significantly. Transitioning from physical drafting to digital output solves these workflow bottlenecks. This shift allows fashion designers to scale production rapidly without sacrificing quality.
We will explore exactly how modern machines handle both printing and cutting in a single seamless step. You will discover the underlying mechanics powering these advanced devices today. We will share practical best practices for flawless pattern layouts. You will also learn how to avoid common file preparation mistakes before sending your designs to the machine.
The apparel industry relied heavily on thick cardboard patterns for decades. Pattern makers drafted designs by hand. They traced every curve and straight edge using specialized rulers. Workers then cut these master templates manually with heavy shears. This physical process consumed immense time and physical storage space. It also made grading different clothing sizes extremely tedious.
Digital computer-aided design (CAD) software revolutionized this process. Designers began creating vector-based patterns on screens. Early output devices were simple pen plotters. They drew lines on wide rolls of paper using liquid ink pens. Workers still had to cut the paper out by hand after the machine finished drawing. The industry demanded a more integrated approach to save time.
Manufacturers eventually engineered machines capable of performing both tasks automatically. They integrated high-speed inkjet technology alongside precision blades. This combination allowed a single piece of equipment to print internal markings and cut the outer boundaries simultaneously. Today, a vertical inkjet cutter plotter represents the standard for modern apparel manufacturing facilities.
Combining printing and cutting into one continuous operation requires sophisticated hardware synchronization. The machine must translate a single digital file into two distinct physical actions. It processes raster data for the ink droplets. It simultaneously processes vector data for the blade movements.
The printing phase handles all the informational markings on the garment pattern. The inkjet printhead travels rapidly across the paper width. It deposits fast-drying ink to form legible text and lines. These printed elements usually include:
Size labels and style numbers.
Grainline arrows indicating fabric orientation.
Internal drill holes for pocket placements.
Seam allowances and stitching guidelines.
Assembly notches matching different pattern pieces together.
Once the machine prints a specific section, the cutting phase immediately takes over. The cutting carriage lowers a sharp blade onto the paper surface. The machine uses a swivel blade design. This allows the blade to rotate freely inside its holder. As the machine pulls the paper forward and backward, the blade changes direction naturally. It slices through the paper or thin cardboard along the exact outer contours of the pattern.

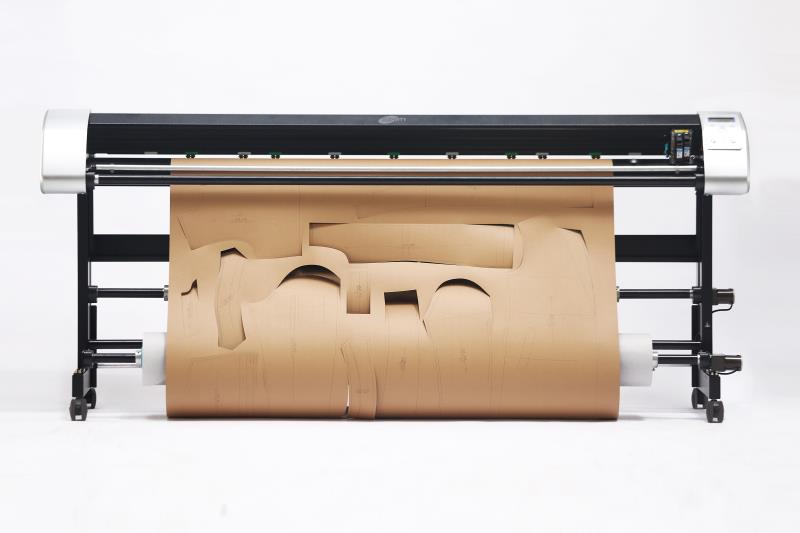

Most traditional plotters lie completely flat like a large table. Flatbed plotters consume massive amounts of floor space. A vertical machine solves this major physical constraint. The equipment holds the paper roll near the bottom. It feeds the paper upward across an angled or nearly upright platen.
This upright design leverages gravity to its advantage. Gravity naturally pulls the excess paper downward. This downward force helps maintain consistent tension across the paper web. Smooth tension prevents the paper from wrinkling. Wrinkles cause ink smudges and inaccurate blade tracking.
The vertical orientation also improves user ergonomics. Operators can easily monitor the printing and cutting progress at eye level. They do not have to lean over a wide table to retrieve finished pieces. When you install a vertical inkjet cutter plotter in your studio, you immediately recover valuable floor space for other critical manufacturing tasks.
Turning a digital concept into a cut paper pattern involves a specific workflow. You must follow strict data protocols to ensure the machine understands your intentions. The hardware relies entirely on the quality of the software instructions it receives.
Digital Drafting: Designers create the initial garment pieces in apparel CAD software. They assign distinct attributes to every line. Outer boundaries become cut lines. Internal texts become print lines.
Marker Making: Operators arrange the digital pieces onto a virtual layout called a marker. They nest the pieces closely together to minimize paper waste.
File Export: The software exports the marker as a standard plot file. The industry heavily relies on HPGL (Hewlett-Packard Graphics Language) or PLT file formats for this step.
Data Parsing: The machine control center receives the file. It separates the data layers automatically. It sends text commands to the printhead. It sends contour commands to the cutting carriage.
Execution: The machine pulls the blank paper from the feed roll. It prints the text, drops the blade, and cuts the shapes. The finished pieces drop neatly into a collection basket.
This streamlined process eliminates intermediate manual steps. The control software dictates exactly when the blade should lift and when it should cut. This prevents the blade from slicing through internal text or damaging neighboring pattern pieces.
Achieving sub-millimeter accuracy requires robust internal components. A garment pattern plotter relies on a sophisticated mix of motors, sensors, and tooling. We must understand these parts to appreciate the machine's reliability.
Modern equipment utilizes commercial-grade thermal inkjet printheads. These printheads feature hundreds of microscopic nozzles. They fire ink droplets onto the paper at incredibly high speeds. This allows operators to read tiny font sizes clearly. Clear text prevents sewing operators from confusing similar-looking pattern pieces later in production.
The cutting tool must withstand constant friction against abrasive kraft paper. Manufacturers use tungsten carbide to construct these blades. Tungsten carbide retains its sharp edge significantly longer than standard steel. A dull blade drags across the paper instead of cutting it cleanly. This dragging action creates jagged edges and ruined patterns.
The machine uses textured metal cylinders called grit rollers to grip the paper. These rollers pinch the paper against rubber wheels. This firm grip allows the machine to push and pull the paper without any slipping. An optical encoder strip runs across the machine width. The print carriage reads this strip constantly. It uses this strip to know its exact coordinate position at all times.
Understanding the operational shift requires looking at direct workflow comparisons. Upgrading from hand drafting to machine output changes daily routines fundamentally. We outline the core operational differences below.
Workflow Attribute | Manual Pattern Method | Automated Plotter Method |
|---|---|---|
Speed and Output | Drafting and cutting take hours per size. | Prints and cuts entire nested markers in minutes. |
Accuracy Level | Varies based on operator skill and fatigue. | Consistent digital precision to the millimeter. |
Pattern Duplication | Requires physical tracing which degrades edges. | Instant perfect copies printed on demand. |
Storage Requirements | Requires massive physical racks for cardboard. | Files live on hard drives; print only when needed. |
Scaling and Grading | Each size must be drafted by hand. | Software auto-grades and sends directly to machine. |
This comparison highlights the operational superiority of digital equipment. The physical footprint shrinks. The production velocity increases. Most importantly, the quality remains absolutely uniform across every single production run.
Even the most advanced hardware cannot fix bad input data. Operators often encounter issues due to poor file preparation. Recognizing these common errors saves hours of wasted paper and ink.
First, designers frequently fail to close their vector shapes. A cut line must form a continuous, closed loop. If a tiny gap exists between two lines, the machine will stop cutting at that gap. The operator must then manually snip the piece free. You must zoom in on your CAD software and ensure all nodes connect perfectly.
Second, users sometimes assign incorrect line attributes. They might accidentally categorize an internal grainline as a cut path. The machine will obediently slice the pattern piece right down the middle. Always double-check your layer assignments before exporting the PLT file.
Third, operators often ignore paper width limitations. You must define the physical paper width accurately in the software. If your digital marker exceeds the physical paper width, the machine will attempt to cut off the edge. This can damage the blade and ruin the plot entirely. Always leave a safe margin of at least one inch on both sides.
Consistent maintenance guarantees long-term reliability. A properly maintained machine produces sharp lines and clean cuts every day. Neglecting basic care leads to jagged edges and skipped ink lines.
You must clean the grit rollers regularly. Paper dust accumulates on these textured rollers over time. This dust fills the tiny grooves. The rollers eventually lose their grip on the paper. The paper will slip during fast movements, ruining the cutting accuracy. Use a stiff brush to clear this paper dust weekly.
Manage your printheads carefully. Ink dries out quickly in open air. If you leave the machine idle for several days, the microscopic nozzles will clog. Always run a quick nozzle test pattern before starting a large production run. Replace the ink cartridges before they run completely dry to prevent air from entering the system.
Monitor your cutting depth. The blade should only extend far enough to pierce the paper. Exposing too much blade causes the blade tip to snap under lateral pressure. It also damages the protective cutting strip beneath the paper. Perform a test cut on a small scrap piece every time you load a new paper roll.
Modern equipment handles much more than basic t-shirt patterns. Advanced apparel sectors rely heavily on this technology for intricate assemblies. The precision matters immensely in specialized garment categories.
Consider the production of tailored suits. A single suit jacket contains dozens of small, highly specific pattern pieces. These include internal canvas layers, specific collar stands, and complex sleeve headings. A millimeter deviation in a tailored sleeve cap ruins the entire armhole drape. Digital plotters handle these complex curves effortlessly.
Outdoor gear and technical outerwear represent another critical application. Waterproof jackets require perfectly matched seam allowances. Manufacturers seal these seams with waterproof tape later. If the pattern pieces do not align perfectly, the taping machine will leave gaps. Water will leak through the finished garment. Relying on an automated machine ensures these technical pieces fit together flawlessly.
Upholstery and heavy denim manufacturers also benefit greatly. They print markers on heavy-duty kraft paper. They then lay these thick paper markers directly over thick stacks of denim. Workers use vertical reciprocating knives to cut the fabric stacks, following the printed lines on the paper marker. The printed text on the paper stays attached to the fabric bundles, guiding the sewing operators later.
Transitioning to digital pattern output elevates your entire manufacturing process. It removes the bottlenecks associated with manual drafting. It ensures every garment piece matches the designer's original intent perfectly.
Auditing your current workflow helps identify exactly where manual cutting slows your team down.
Ensure your CAD software exports clean, closed-vector HPGL or PLT files seamlessly.
Establish strict layer protocols so designers correctly separate print data from cut data every time.
Implement a weekly cleaning schedule for your grit rollers and cutting carriage to maintain accuracy.
Train multiple operators on basic file parsing and blade depth adjustment to prevent production downtime.
Taking control of your pattern output empowers you to scale rapidly. You can handle wider size ranges and more complex styles. Embracing automated hardware ensures your studio remains agile and precise in a demanding industry.
A: Most machines require standard vector plot files. The apparel industry primarily uses HPGL (Hewlett-Packard Graphics Language) or PLT formats. Some advanced models also accept DXF files directly from CAD software. You must ensure your software can export these specific extensions.
A: Blade lifespan depends entirely on the paper thickness and production volume. High-volume shops cutting heavy kraft paper might replace blades every few weeks. Studios cutting lightweight marker paper can often use a single tungsten carbide blade for several months. Replace it immediately if edges look torn.
A: Most garment plotters utilize standard commercial thermal inkjet cartridges, frequently similar to HP45 cartridges. They use standard water-based black ink. This ink dries quickly on porous marker paper, preventing smudges when the paper rolls forward for the cutting phase.
A: Many models handle paper weights up to 250gsm or 300gsm. This allows them to cut thin cardboard or heavy kraft paper used for master templates. However, you must increase the blade pressure settings in the control software to pierce thicker materials cleanly.
A: Paper slipping usually occurs due to dirty grit rollers or improper roller tension. Paper dust clogs the metal grip textures over time. Cleaning the rollers with a stiff brush usually resolves this. Additionally, ensure the paper roll is aligned straight to prevent uneven tension.
