Production managers and procurement officers face a constant dilemma when upgrading machinery. They need equipment delivering higher throughput to meet aggressive production deadlines. Yet, relying solely on manufacturer spec sheets rarely reveals the whole story regarding actual output.
You see this challenge frequently in industrial environments like apparel pattern making, upholstery manufacturing, and large-format signage. Here, a vertical inkjet cutter plotter plays a critical role in bridging digital design and physical material processing. These specialized machines must seamlessly handle everything from delicate marker paper to heavy kraft patterns while maintaining strict dimensional accuracy.
Evaluating the true speed of these devices requires looking far beyond maximum mechanical velocity. We will explore how shift-yield, hardware configurations, and unavoidable human bottlenecks dictate real-world performance. You will learn exactly how to measure actual throughput before committing to your next equipment investment.
Manufacturer "max speeds" (typically 70–120+ sqm/h) are peak mechanical rates, not sustained production realities.
Actual throughput heavily depends on printhead configuration (e.g., dual vs. quad HP45), servo motor acceleration, and media thickness.
Human bottlenecks—such as roll changes, ink replacement, and software parsing—can reduce stated operational speed by 15% to 30% per shift.
The most cost-effective procurement decision balances raw plotting/cutting speed with precise media handling and low maintenance downtime.
Buyers often encounter a frustrating disconnect between marketing claims and factory floor realities. Manufacturers usually determine maximum plotting and cutting speeds under highly idealized testing conditions. They measure velocity in linear millimeters per second (mm/s) using straight lines on perfectly smooth, lightweight paper. During these tests, the machine operates without complex media tension or intricate curves.
This creates a spec sheet illusion. A machine claiming it hits 1,200 mm/s sounds incredibly fast. However, it rarely sustains this pace when cutting intricate apparel patterns featuring sharp corners, notches, and dense grading information. When you cut complex shapes, the carriage must constantly accelerate and decelerate. This constant change in momentum drastically reduces the actual average speed over a working hour.
To accurately evaluate equipment, we must redefine our success criteria. You should shift your primary metric away from "maximum carriage speed." Instead, measure performance by completed patterns or square meters per standard eight-hour shift. This shift-yield metric accounts for acceleration curves, tool lifting, and baseline processing delays. It provides a highly realistic picture of what your team will actually produce daily.

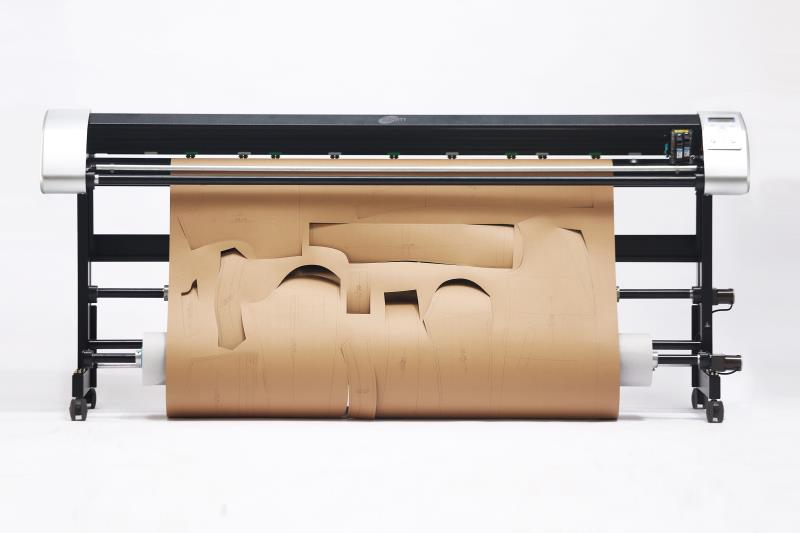

We also need to consider the unique mechanical advantages of the vertical design. A vertical inkjet cutter plotter relies on gravity and sophisticated tension control to feed media downward. This orientation handles material feeding differently than traditional flatbed alternatives. Gravity assists in keeping the paper taut, which can reduce instances of media buckling. Consequently, vertical models can often sustain higher continuous feed rates on long marker layouts, provided the tension rollers are properly calibrated.
Several underlying hardware components directly dictate how fast a machine can realistically operate. Understanding these variables helps you cut through marketing jargon and identify true performance bottlenecks.
Printhead Technology: The plotting phase speed relies heavily on ink delivery. Standard machines often use single or dual HP45 cartridge setups. These provide reliable, cost-effective lines but max out quickly in wide formats. Upgrading to a quad-head system drastically increases continuous printing speed because the carriage covers double the surface area per pass. Furthermore, specialized ink delivery systems prevent thermal throttling, allowing the heads to maintain high-speed ejection over long runs without overheating.
Motor Systems (Servo vs. Stepper): Motion control separates budget machines from industrial workhorses. Older or cheaper models utilize stepper motors. While functional, steppers struggle with high-speed curves and risk "losing steps" if pushed too hard, ruining pattern dimensions. In contrast, digital closed-loop servo motors deliver exponentially faster acceleration and deceleration. They use built-in encoders to constantly verify carriage position. This allows servo-driven machines to navigate sharp corners and complex geometry rapidly without sacrificing millimeter precision.
Data Processing and Spooling: A frequently ignored bottleneck lies inside the machine's control board. Complex CAD files, often exported in HPGL or PLT formats, contain thousands of vector nodes. How fast the plotter's motherboard and buffer memory process these files matters immensely. If the motherboard lacks sufficient RAM or uses outdated processors, the carriage will physically pause mid-cut while waiting for the next batch of data. Connecting the machine via high-speed LAN rather than legacy USB ports also ensures massive marker files spool instantly, preventing data starvation at peak speeds.
Pushing machinery to its absolute limits introduces a new set of physical challenges. You cannot maximize velocity without carefully managing cutting forces and print quality.
When you cut heavy materials, like 80g to 120g/m² kraft paper, you encounter significant media drag. Heavy paper possesses higher inertia. If you command the machine to pull this paper at top speed, the friction against the cutting blade spikes. This extreme drag often leads to blade deflection, where the knife bends slightly off-path. It can also cause media skewing, pulling the entire roll off alignment. The result is inaccurate pattern cuts requiring complete rework.
Printing at velocity introduces similar risks. Inkjet heads firing at peak rates demand a continuous, flawless supply of ink. Pushing beyond optimal speeds causes ink starvation, resulting in faded lines or skipped grading markers. You must define an "acceptable quality threshold" based on your specific application. Internal factory production might tolerate slightly lighter lines, maximizing speed. Conversely, client-facing deliverables demand pristine, dark lines, necessitating a 10% to 20% reduction in carriage velocity.
Automated media feeding and take-up rollers become mandatory when you operate at high throughput. These tension control systems ensure the paper remains perfectly flat against the cutting strip. Without active tension management, pushing paper at high speeds creates ripples. Once the blade hits a ripple, it jams or tears the media, halting production entirely.
Media Type and Speed Trade-off Matrix
Media Type | Weight Range | Optimal Operating Speed | Primary Risk at Max Speed |
|---|---|---|---|
Lightweight Marker Paper | 40g - 60g/m² | 80% - 100% of Max Speed | Media tearing or wrinkling under high roller tension. |
Standard Kraft Paper | 70g - 90g/m² | 60% - 80% of Max Speed | Slight blade deflection on sharp vector corners. |
Heavyweight Card/Kraft | 100g - 150g/m² | 40% - 60% of Max Speed | Media slipping, high blade wear, and motor stalling. |
Focusing purely on mechanical capabilities ignores the most substantial variable in factory environments: human interaction. Operational realities dictate that machines do not run unattended indefinitely.
Consider the physical rollout and loading process. A vertical chassis brilliantly saves premium factory floor space. However, maneuvering and loading a 30kg paper roll into an upright position requires specific ergonomic workflows. It takes time for operators to secure the roll, feed it through the tension bars, and align it perfectly. If a shop floor changes rolls four times a shift, inefficient loading can easily consume 30 to 45 minutes of daily production time.
Consumables and regular calibration also interrupt continuous output. Operators must routinely pause the machine to execute vital tasks.
Clearing Debris: Heavy cutting generates paper dust. Operators must regularly clean optical sensors and tracks to prevent mechanical jams.
Printhead Maintenance: Plotters using standard inkjet cartridges need occasional manual wiping or automated purging to clear clogged nozzles and maintain line crispness.
Blade Swapping: High-speed friction dulls tungsten steel blades rapidly. Operators must swap them promptly; otherwise, dull blades will chew the paper rather than slice it smoothly.
Furthermore, businesses face significant adoption risks. Buying an oversized, heavily specced machine proves useless if floor staff remain untrained on continuous feed workflows. When operators do not understand how to queue jobs efficiently or manage media tension dynamically, the machine sits idle. Fast machinery only yields high ROI when paired with proactive, well-trained operators.
Selecting the right equipment requires a highly skeptical approach to marketing literature. You must vet potential vendors thoroughly before making a purchase decision.
Start by scrutinizing manufacturer claims with direct, technical questions. Do not accept vague assurances about "high-speed output." Instead, ask vendors specific questions regarding sustained performance. You might ask: "What is the guaranteed continuous running time at maximum speed before thermal throttling reduces printhead efficiency?" You should also inquire about carriage realignment intervals. A fast machine that requires recalibration every three hours ultimately produces less than a moderately paced, highly stable alternative.
Demand transparency about the internal components. Confirm whether the motion system utilizes true closed-loop servos on both the X and Y axes. Verify the motherboard's processing capacity and ensure the machine supports gigabit LAN connections for rapid data spooling.
The best next-step action involves requesting a practical demonstration. Never rely on generic factory videos showing straight-line cutting. Send the vendor your own complex CAD files—specifically ones containing dense grading, tight curves, and numerous text annotations. Request a live or continuous video-recorded benchmark test using your exact specified paper weight. Tell them to cut a full 10-meter marker layout. By timing this real-world test, you immediately expose any discrepancy between theoretical specs and actual floor performance.
The fastest vertical plotter is rarely the one boasting the highest top speed on paper. Instead, true speed belongs to the machine that operates continuously, handling complex data smoothly while requiring minimal human intervention. Sustained daily yield always outperforms erratic bursts of mechanical velocity.
When you evaluate your next equipment upgrade, we strongly advise prioritizing stability over flashy metrics. Robust media handling, reliable closed-loop servo motors, and seamless software parsing dictate your actual output. A machine that seamlessly manages heavy kraft paper without stalling or tearing will transform your production efficiency.
Do not leave your capital investments to guesswork. We recommend contacting your preferred technical sales team to arrange a custom throughput analysis. By testing your specific design files on their equipment, you guarantee the machinery aligns perfectly with your factory's production demands.
A: The standard industry range for printing and plotting falls between 70 and 120 square meters per hour. However, actual yield depends heavily on the specific model, printhead configuration, and the complexity of the patterns being processed.
A: Yes. Faster feed rates generate significantly higher friction and heat between the blade and the paper. This increased thermal and mechanical stress breaks down the blade's edge faster, requiring more frequent replacements to maintain clean cuts.
A: It can. Inefficiently exported PLT or DXF files often contain an excessive number of overlapping vector nodes. The plotter's motherboard must process each node. Too many unnecessary nodes overwhelm the memory buffer, causing the carriage to pause and drastically slowing down the reading speed.
A: Heavy materials like 120g kraft paper require slower feed rates to prevent motor stalling, blade deflection, and media slipping. Conversely, lightweight marker paper handles faster speeds well, provided the tension rollers are set correctly to avoid tearing.
