Efficiency in the cutting room dictates the ultimate speed of your entire garment production line. If pattern plotting and cutting fall behind, the manufacturing floor suffers immediate and expensive delays. Production managers face a constant bottleneck when traditional flatbed machines consume valuable floor space while restricting daily output. You need hardware specifically engineered for high-volume demands. The vertical inkjet cutter plotter serves as the definitive standard for high-capacity apparel manufacturing. It directly solves severe floor-space constraints. It also seamlessly combines complex plotting and cutting into one continuous workflow. This eliminates the need for multiple bulky stations. This guide delivers a transparent, criteria-driven framework to simplify your purchasing decision. We will help you evaluate, shortlist, and procure the right hardware for your facility. You will learn exactly how to bypass marketing hyperbole and focus purely on measurable performance metrics.
Space & Throughput ROI: Vertical formats reduce floor footprint by up to 70% compared to flatbeds, but require specific media-handling mechanisms to maintain tension.
Software Agnosticism is Mandatory: A viable machine must offer seamless HPGL/PLT integration with existing apparel CAD systems (e.g., Optitex, Gerber, Lectra) without requiring costly middleware.
TCO > Purchase Price: True hardware cost includes proprietary vs. open-market ink supply systems, blade replacement frequency, and motor wear over a 3-to-5-year lifecycle.
Vendor Accountability: Post-sale support SLAs, operator training, and parts availability dictate actual production uptime.
Modern apparel manufacturing demands incredible efficiency per square meter. Managers constantly battle spatial limitations on the factory floor. Every square meter occupied by bulky machinery directly reduces the space available for cutting tables, fabric staging, and final assembly. Traditional flatbed plotters require massive horizontal footprints. They force workers to navigate around giant, restrictive obstacles.
High-density garment factories prefer the upright structural design for one simple reason: geometry. A vertical design reclaims up to 70% of previously wasted floor space. You push production upward rather than outward. This reclaimed space allows managers to add additional cutting lanes or streamline material staging. The footprint advantage alone often justifies the initial upgrade.

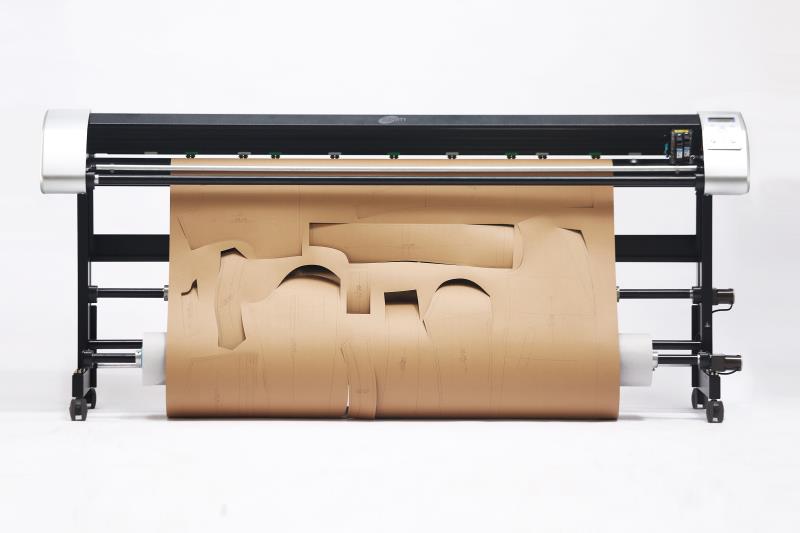

Beyond spatial savings, dual-function efficiency transforms daily operations. Older production workflows separate plotting and cutting into two distinct, isolated phases. Workers print the marker on one machine, physically transport the heavy paper roll, and feed it into a separate cutting device. A modern vertical inkjet cutter plotter eliminates this delay. It prints the markers and cuts the pattern pieces simultaneously in a single, continuous feed. Parallel processing saves countless hours every week. Operators load the paper once, initiate the job, and walk away.
Digitizing this final pre-cut stage drastically reduces manual errors. Manual pattern grading relies entirely on human precision. Tired operators make mistakes. They misread lines, cut slightly off-angle, or misinterpret complex grading rules. These errors multiply across a production run, generating massive material waste. Automated plotting and cutting guarantee the physical pattern perfectly matches the original CAD file. You eliminate human translation errors. You maximize fabric utilization. You protect your profit margins from easily preventable material waste.
Marketing brochures often highlight theoretical maximum speeds. However, real-world performance relies strictly on core hardware components. You must evaluate the internal mechanics before making a purchasing decision.
The print head serves as the heartbeat of any plotting system. You generally face a choice between standard commercial print heads and heavy-duty industrial variants. Standard commercial heads, like the ubiquitous HP45, offer excellent cost-efficiency. They are cheap to replace and widely available globally. Industrial heads deliver raw, uncompromised speed for massive factories running continuous overnight shifts.
Ink delivery mechanisms also demand strict scrutiny. Disposable cartridges run out quickly. They force operators to halt production, open the machine, and swap tiny ink reserves. Conversely, a Continuous Ink Supply System (CISS) utilizes large external bulk tanks. CISS feeds ink directly to the print head automatically. This setup drastically reduces operator intervention and keeps the machine running steadily through long shifts.
Plotting only handles the visual marker. The cutting carriage executes the physical separation. You must evaluate the downward force the machine applies to the blade. Manufacturers measure this downward force in grams of pressure. Different production models require vastly different pressure ratings.
Standard Kraft Paper (40-80 gsm): Requires minimal downward force. High speeds do not generally tear the paper if the blade remains sharp.
Heavy Pattern Cardstock (150-300 gsm): Demands substantial downward force. Weak machines will only score the surface instead of cutting cleanly through.
Carriage stability remains equally crucial. The cutting head changes direction rapidly thousands of times per minute. If the internal carriage lacks rigid stability, the blade chatters. This chattering creates jagged edges and ruined pattern pieces.
The internal motors drive the entire operation. This specific hardware choice separates professional machines from entry-level toys. Use the comparison below to understand the mechanical difference.
Motor Feature | Stepper Motors | Servo Motors |
|---|---|---|
Operation Loop | Open-loop system | Closed-loop system |
Feedback Mechanism | None. Assumes the command was executed. | Constant positional feedback to the motherboard. |
Accuracy on Long Runs | Prone to losing steps. Drifts on dense markers. | Maintains perfect accuracy over 10+ meters. |
Vibration & Noise | High vibration during rapid movements. | Smooth, quiet, and highly stable operation. |
You need closed-loop servo motors for continuous, long-run accuracy. Stepper motors receive a command to move, but they cannot verify their actual position. If a stepper motor encounters slight physical resistance, it loses a fraction of a millimeter. Over a long dense garment marker, these lost fractions accumulate. The pattern shifts. Servo motors use an encoder to verify their exact position constantly. If they detect a discrepancy, they self-correct instantly. Always demand servo motors for professional apparel manufacturing.
Machine width dictates factory integration. Do not buy a machine simply because it offers the lowest price. Match the plotting width to your factory's standard fabric rolls and existing cutting tables. Common industrial standards include 180cm, 200cm, and 220cm widths. If you purchase a 180cm plotter but regularly process 200cm fabric rolls, your markers will never fit. You will waste expensive fabric on every single production run.
Excellent hardware means nothing if your design team cannot send files to the machine. Seamless software integration prevents daily operational headaches. A reliable vertical inkjet cutter plotter acts as a universal peripheral. It should receive commands willingly from any modern design suite.
Your pattern grading team works in complex vector environments. The plotter must interpret these vectors flawlessly. Native support for industry-standard file formats remains non-negotiable. Ensure the machine natively reads HPGL (Hewlett-Packard Graphics Language), HPGL/2, PLT, and DXF files. These standardized formats contain the exact coordinate data the machine requires to guide the print head and the cutting blade.
Frictionless integration saves money. Check the integration reality against legacy and modern apparel CAD environments. Your factory likely uses established software like Optitex, Gerber, or Lectra. Some proprietary plotters create walled gardens. They refuse to communicate smoothly with outside software, forcing you to buy expensive conversion middleware. A professional machine operates agnostically. You export the PLT file from Optitex, send it to the plotter, and the machine executes the job immediately.
Garment markers contain millions of data points. A densely nested marker for a complex suit spans several meters and holds massive amounts of vector information. You must evaluate the onboard processing memory of the plotting hardware. Weak machines possess minimal Random Access Memory (RAM). When they receive a massive, data-heavy marker file, they stall. They drop vectors. They skip entire pattern pieces mid-job. A capable machine features robust spooling and queue management. It buffers the entire file instantly, ensuring smooth, uninterrupted output from the first millimeter to the last.
Predictable daily operations depend directly on understanding your consumable burn rate. Smart production managers forecast their maintenance needs long before a machine arrives on the factory floor.
Hardware runs on consumable parts. You must accurately forecast annual consumption for ink, plotter pens, and carbide cutting blades based on your average shift volumes. Ink drains steadily. Plotter pens eventually dry out or clog. Carbide cutting blades dull surprisingly fast. Recycled kraft paper often contains microscopic abrasive impurities. These impurities act like fine sandpaper against the cutting blade. Plan to replace high-use components on a strict, predetermined schedule rather than waiting for output quality to drop.
Manufacturers often use consumables to trap buyers. Identify immediately if the plotting hardware locks you into a restrictive ecosystem. Some brands install microchips on their ink cartridges or specific proprietary mounts for their cutting blades. This forces you to purchase high-margin OEM (Original Equipment Manufacturer) consumables directly from them. Look for machines allowing third-party generic alternatives. An open-market ecosystem keeps your monthly operational budget flexible and competitive. You maintain the freedom to source standard HP45 generic cartridges or universal carbide blades locally.
Industrial environments destroy fragile components. Highlight and track standard failure points on your new machine. Drive belts stretch over millions of rapid passes. When a belt stretches, the carriage loses microscopic precision. Encoder strips, which tell the print head exactly where it is, gather paper dust. Once dirty, they lose their optical clarity, causing the machine to misalign prints. Keep replacement belts and encoder strips in your on-site maintenance closet. Implement a strict weekly cleaning schedule to remove paper dust before it damages sensitive optical sensors.
A machine is only as reliable as the vendor supplying it. Poor post-sale support ruins excellent hardware. You must scrutinize the vendor's rollout plan and technical guarantees thoroughly.
Never rely on a vendor's pre-loaded demonstration files. Demo files are heavily optimized. They feature simple curves and slow speeds designed to make the machine look flawless. Demand a live test run. Provide the vendor with your own complex, highly nested production files. Insist they run the test using your factory's exact standard paper stock. Watch how the machine handles acute angles, long straightaways, and rapid directional shifts. This live test proves the hardware can handle your specific operational reality.
Assess the vendor's onboarding process closely. A sophisticated machine requires properly trained operators. Ask the vendor directly: How long until operators achieve independent proficiency? The interface should be intuitive. If the control panel requires extensive engineering knowledge, your turnover rate will spike. A strong vendor sends a technician to oversee installation, calibrate the machine to your factory floor, and train your primary operators until they feel confident.
Read the fine print on technical support documents. Differentiate strictly between "parts-only" warranties and comprehensive on-site service level agreements (SLAs). A parts-only warranty means the vendor mails you a replacement component, leaving your team to figure out the installation. This causes days of downtime. A comprehensive SLA guarantees a technician will arrive on-site. Define acceptable response times clearly. If the machine goes down on a Tuesday morning, a 72-hour response time halts your entire production line for three days. Demand a 24-hour response window for critical machine-down scenarios.
Procuring the right hardware transforms your cutting room from a painful bottleneck into a streamlined production hub. The best vertical inkjet cutter plotter balances universal CAD compatibility with uncompromising internal components. Focus heavily on closed-loop servo motors, robust onboard memory, and unlocked consumable ecosystems. Predictable, transparent maintenance always outperforms flashy, restrictive proprietary features.
Audit your current monthly paper, ink, and blade expenditures. Use this data to build a baseline operational budget. Next, prepare a complex, heavily nested benchmark file from your busiest production week. Share this benchmark file with your shortlisted suppliers and demand a live proof-of-concept demonstration. Seeing your own files execute flawlessly provides the ultimate confidence to proceed with the upgrade.
A: Most machines easily process paper weights ranging from 40 gsm to 120 gsm. Standard garment plotting relies on 40-80 gsm kraft paper, which cuts quickly and cleanly. If you process heavy hard pattern boards, you need a machine specifically rated for 250-300 gsm cardstock. Always verify the maximum downward cutting pressure before attempting to process heavy pattern boards.
A: No. Almost all modern and legacy apparel CAD systems natively export standardized HPGL, PLT, or DXF files. A high-quality plotter integrates seamlessly alongside Optitex, Gerber, or Lectra. You can send your existing digital marker files directly to the plotting queue without purchasing new design software or expensive translation middleware.
A: Replacement intervals depend strictly on your daily production volume. During a continuous 8-hour shift, standard carbide cutting blades typically maintain their edge for two to four weeks before dulling. Standard commercial print heads often last three to six months. Implement daily cleaning to maximize component lifespans.
A: Yes, provided the hardware includes specific automated features. Unmonitored overnight operation requires an automated media feeding and take-up roller system to maintain paper tension. The machine also needs a Continuous Ink Supply System (CISS) and robust onboard network memory to prevent stalling during massive, data-heavy marker files.
