Making the right purchasing decision marks a critical operational pivot for your manufacturing floor. Choosing between vertical and flatbed architectures involves much more than evaluating basic cutting technology. Your choice directly dictates workshop floor utilization. It shapes daily material handling workflows. It also creates or eliminates severe production bottlenecks. Both systems plot and cut accurately. However, their physical orientation completely changes the types of substrates they handle efficiently. A machine's physical geometry determines whether your team processes orders seamlessly or fights constant material jamming. We built this guide as a practical framework for production managers. You will learn how to evaluate which architecture best serves your specific throughput. We explore how to align these systems to your exact material requirements. You can make an informed decision without wasting valuable floor space or misallocating critical operational resources.
Space vs. Versatility: A vertical inkjet cutter plotter dramatically reduces required floor space but is generally limited to flexible, roll-fed materials (like paper and textiles).
Substrate Rigidity: Flatbed plotters require a larger operational footprint but are mandatory for rigid, thick, or sheet-fed substrates (e.g., cardboard, acrylics, thick leather).
Throughput Dynamics: Vertical plotters excel at continuous, long-run roll cutting; flatbeds excel at multi-pass, high-precision cutting of varied individual sheets.
Total Cost of Ownership (TCO): Beyond initial purchase price, evaluate vacuum pump power consumption (flatbed) vs. continuous media feed maintenance (vertical).
Structural design dictates machine capabilities. A plotter’s physical geometry restricts how it interacts against raw materials. Kinetic movement defines the cutting process. The machine must move either the tool head, the material, or both simultaneously. Understanding this foundational physics helps you anticipate operational limits before you buy. You cannot force a machine to defy its own mechanical constraints.

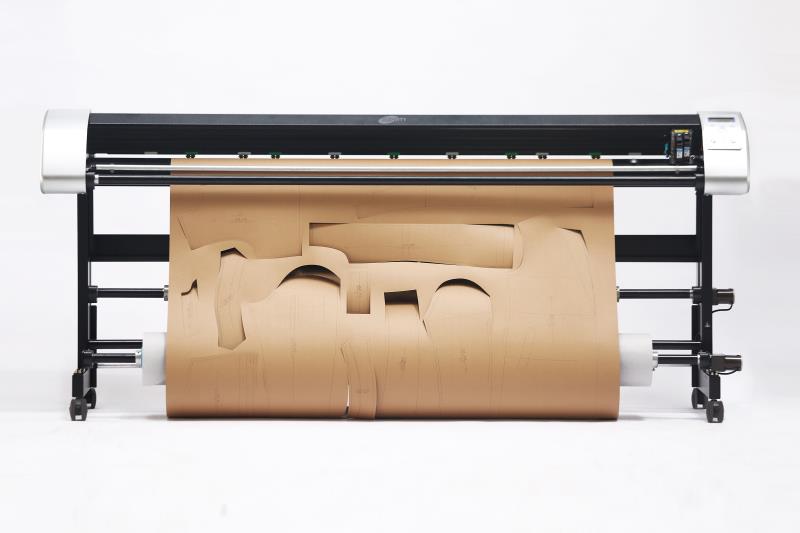

Vertical systems rely heavily on gravity and mechanical tension. The machine feeds flexible materials through the y-axis utilizing a system of grit rollers and pinch rollers. Gravity assists this downward feeding motion. Meanwhile, the print and cut head travels horizontally across the x-axis. The material itself acts as a moving component. It must remain perfectly taut. If tension drops, the media skews. Proper tensioning guarantees accurate geometric output across long production runs.
Flatbed architectures operate on a completely different mechanical philosophy. They utilize a stationary vacuum bed. This porous surface holds the substrate completely flat and immobile. Zonal vacuum sectors lock the material aggressively against the table. The gantry serves as the tool head. It moves independently across both the X and Y axes. The material never moves. This immobilization allows the gantry to execute complex, multi-pass cuts without losing registration.
Space-constrained workshops face immense pressure to maximize output per square foot. Urban textile factories and apparel pattern drafting rooms often lack expansive floor plans. High-volume cutting demands continuous feeding. Traditional horizontal machines consume too much valuable real estate. A vertical inkjet cutter plotter specifically solves this spatial challenge. It transforms unused wall areas into active production zones.
Spatial Efficiency: Vertical mounting utilizes dead wall space. You immediately free up high-value square footage on your production floor. The machine hugs the perimeter of your facility. It requires minimal clearance depth compared to sprawling horizontal alternatives.
Continuous Roll Processing: These systems deliver superior efficiency for continuous paper or fabric roll plotting. They seamlessly handle fifty-meter rolls without requiring operator intervention. You can queue massive jobs overnight. The continuous feed mechanism ensures steady, uninterrupted throughput.
You must approach these systems realistically. They present distinct limitations. They absolutely cannot handle rigid materials. Cardboard and foam core will not wrap around the feed rollers. Furthermore, the gravity feed system introduces occasional risks. It can cause minor registration issues if your operator fails to calibrate the media tension perfectly. A slight skew at the top of a roll amplifies into a massive error twenty meters down the line.
Certain industries thrive using vertical systems. Garment manufacturing relies on them heavily for daily pattern plotting. Large-scale flexible sign makers use them to cut massive vinyl decals. Automotive interior designers utilize them for continuous template cutting on flexible films.
Many industries require processing diverse, unyielding, or delicate materials. You cannot bend thick PVC or corrugated cardboard over a roller. Forcing rigid substrates through a friction-feed system destroys the material. It can also damage the machine. Flatbed systems address this exact business problem. They provide a stable, immovable foundation for challenging materials.
Material Versatility: Flatbeds handle nearly anything you place onto the table. They effortlessly process corrugated boards, foam core, thick leathers, and heavy vinyl. You can swap tool heads to crease, score, or route.
Absolute Fixation: Zonal vacuum beds prevent any accidental shifting. This ensures micron-level accuracy. Intricate cuts require exact tool paths. Multi-pass operations demand absolute material stillness. The vacuum secures the substrate perfectly flat.
These advantages demand specific compromises. Flatbeds require massive footprint allocations. You must provide wide clearance on all four sides. Operators need space for loading and unloading bulky sheets. Additionally, they draw significantly higher energy consumption. Industrial vacuum pumps require substantial electrical power to maintain holding force across large porous beds.
Flatbed plotters dominate specific sectors. Packaging prototyping requires them for creasing and cutting small corrugated runs. Rigid POP and POS display manufacturers depend on them daily. Industrial fabrication shops use them for heavy gasket cutting and acoustic panel trimming.
You must calculate the true operational footprint before making a purchase. Do not just measure the machine itself. A vertical system requires minimal depth. You only need a few feet of operator walkway in front of the unit. Conversely, a flatbed demands a surrounding staging area. You need space for pallets of rigid sheets. You need clearance for forklifts or wide carts. A flatbed often consumes four times the total floor space when you factor in these critical loading zones.
Equipment Capability Comparison
Feature |
Vertical Architecture |
Flatbed Architecture |
|---|---|---|
Space Requirement |
Minimal (Wall-mounted) |
Massive (360-degree access) |
Material Form |
Roll-fed, flexible |
Sheet-fed, rigid or flexible |
Material Hold-Down |
Pinch rollers & tension |
Zoned vacuum table |
Throughput Style |
Continuous long-run |
Batch or single-sheet |
Your daily material input dictates your technology choice. We recommend a clear delineation based on historical volume. Evaluate your production logs. If you process more than 80% roll media, lean heavily toward a vertical setup. If you process more than 20% rigid or thick sheet media, a flatbed becomes non-negotiable. Trying to process rigid boards on a friction-feed machine guarantees failure. Match the architecture directly to your highest-volume substrate.
Throughput metrics vary wildly between these two systems. Vertical systems excel at continuous feeding. You load one heavy roll. The machine then runs autonomously for hours. This drastically reduces operator touch-points. Flatbeds require sheet-by-sheet loading. An operator must place the sheet, engage the vacuum, run the file, and manually remove the cut pieces. Automated sheet loaders exist for flatbeds. However, they add massive capital expense and require even more floor space.
Contrast the typical capital expenditure of both systems carefully. Vertical systems usually require a lower initial purchase price. They utilize simpler structural frames and lighter motors. Flatbeds represent a major capital investment. They feature heavy steel gantries and complex vacuum manifolds. Note the hidden operational expenditure differences as well. Flatbeds draw massive electrical current to power their vacuum pumps. You must also budget for specialized flatbed cutting mats and conveyor belts. These wear out and require expensive replacements.
Installation Constraints: Moving a massive flatbed into a facility involves intense logistical realities. Standard commercial double doors measure 72 inches wide. Many flatbed tables exceed 80 inches in width. You might need to remove doors or hire specialized riggers. Forklift access becomes mandatory during installation. Conversely, assembling a vertical inkjet cutter plotter proves much simpler. They arrive in manageable crates. Technicians easily build them directly against your designated wall.
Maintenance Routines: Daily maintenance impacts your operational uptime. Flatbed machines generate significant dust and debris. You must frequently clean and clear the vacuum pores. Clogged pores reduce suction and ruin cutting precision. You also must maintain the sacrificial cutting surface. Vertical plotters require a different routine. You must clean and calibrate the grit rollers. Built-up adhesive or paper dust on a roller causes immediate tracking errors.
Operator Training: Acknowledge the distinct learning curves. Flatbeds often require highly complex software nesting. Operators must learn how to maximize sheet yield to reduce expensive material waste. They must master varying vacuum zones and tool pressure settings. Vertical roll cutting generally remains more straightforward. Operators focus mostly on achieving perfect initial roll alignment and setting correct baseline tension.
Choosing the right cutting technology rarely involves finding the objectively "better" machine. It requires finding the exact system aligning perfectly with your facility limits. It must match your primary material inputs seamlessly.
Choose a vertical system to scale textile and apparel pattern production aggressively without expanding your facility footprint.
Invest in a flatbed if your business model relies entirely on substrate versatility, rigid packaging, or heavy signage.
Audit your floor space immediately. Map out exact dimensions including necessary operator walkways and material staging zones.
List your top five daily materials by volume. Let this data drive your hardware architecture choice.
Request a live sample cut test from manufacturers using your actual production materials before finalizing any purchase.
A: No. Rigid materials cannot wrap around the feed rollers. You must use a flatbed system for these substrates. They require a completely flat surface and vacuum hold-down to prevent snapping or jamming during the cutting process.
A: Both deliver excellent results depending on the material. Flatbeds offer superior precision for heavy or thick materials. The vacuum hold-down completely eliminates movement. Vertical plotters provide comparable accuracy for thin, flexible roll media. You just need to ensure proper tensioning across the feed rollers.
A: Loading mechanisms differ significantly. Placing a heavy roll onto a vertical system requires specific lifting techniques. You might even need a hoist. Conversely, laying a single sheet onto a flatbed proves easier for one operator. Automated sheet loaders can change this ergonomic dynamic entirely.
A: You can expect a standard industry lifespan of five to ten years for both architectures. This assumes you perform proactive maintenance. You must regularly replace wear parts like blades, cutting strips, and drive belts. Proper daily cleaning also significantly extends the usable life of the equipment.
