Transitioning from manual pattern drafting marks a critical growth threshold for fashion studios and apparel manufacturers. Growth demands high efficiency. You can no longer rely on slow manual processes or tape together endless PDF pages. Bridging your digital design software to physical production requires highly reliable output hardware. The digital files must become physical markers perfectly. While the necessity of a plotter is clear for scaling operations, evaluating the right machine determines your actual return on investment. Balancing footprint, speed, and dual print and cut capabilities will shape your daily efficiency. Finding the optimal hardware setup transforms a slow sampling phase into rapid iteration. You will learn exactly how these machines operate, why architecture matters, and how to evaluate your next equipment upgrade to streamline your production.
Garment CAD plotters eliminate manual grading and cutting errors by translating digital files (PLT/DXF) into precise physical markers and patterns.
A vertical inkjet cutter plotter significantly reduces the required floor space compared to traditional flatbed models, making in-house production viable for smaller studios.
The true ROI of a plotter relies not just on hardware cost, but on software compatibility, standard consumable availability (like off-the-shelf ink cartridges), and elimination of outsourced printing delays.
Successful implementation requires analyzing your current production volume, CAD software ecosystem, and physical studio layout.
A garment CAD plotter acts as the definitive physical endpoint of digital fashion design. It bridges the gap between software concepts and tangible production materials. Pattern makers use these machines to output wide-format markers. These markers optimize fabric utilization during the cutting phase. The plotter also cuts thick pattern boards for repetitive sample making. Instead of relying on manual tracing, the machine reads vector data. It translates pixels into millimeter-perfect paper outlines. This hardware turns abstract digital grading into usable manufacturing tools.
Modern plotting shifts pattern making from fragmented steps to a continuous workflow. Manual pattern grading invites human error. Tracing curves by hand degrades accuracy over multiple iterations. Digital files plotted directly to paper eliminate these translation errors. You export your graded sizes from CAD directly to the plotter queue. The machine processes every curve, notch, and drill hole flawlessly. A seamless hardware integration ensures absolute fidelity to the original digital design. This reliability becomes crucial when grading complex sizes across large collections.
In-house plotting directly addresses the critical bottleneck of sample iteration. Relying on outsourced printing services introduces costly lead times. A multi-day wait for an outsourced marker slows down the entire development cycle. Bringing this capability in-house turns a prolonged delay into a 10-minute on-demand task. Fast iteration drives successful fashion collections. When designers can tweak a CAD file and hold the physical pattern minutes later, innovation accelerates. You solve the velocity problem completely by controlling your own output hardware.
Standardize your layer naming conventions within your CAD software before exporting files.
Assign distinct line colors for cutting versus printing to avoid hardware confusion.
Regularly update your plotter drivers to ensure seamless communication over your local network.
The flatbed plotter represents the legacy architecture of industrial pattern cutting. Flatbed designs feature a massive horizontal table where the material rests entirely flat. A gantry moves overhead to execute the printing and cutting commands. The primary advantage of a flatbed system is its ability to handle extremely rigid materials. It excels at cutting thick cardboard, leather, or heavy plastics. However, this architecture demands massive, dedicated floor space. Flatbed systems require significant square footage. They are often complete overkill for standard apparel pattern paper.

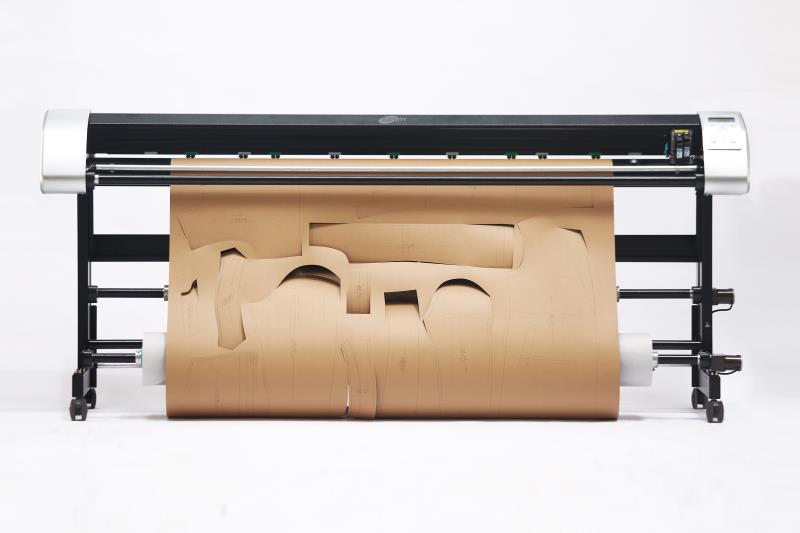

Most modern fashion studios benefit from a distinctly different approach. A vertical inkjet cutter plotter provides a massive space efficiency advantage. These machines utilize a sharply angled or near-vertical feed system. Gravity assists the rolling feed mechanism. They easily process wide-format paper rolls up to 72 inches wide. Despite this wide format, they take up only a fraction of the square footage required by a flatbed. You can place them against a studio wall. This design makes automated plotting accessible to urban studios and smaller production floors.
This vertical architecture also introduces powerful dual functionality. These systems combine continuous inkjet printing with automated blade cutting. The print head rapidly draws marker lines, internal annotations, and grainline arrows. Simultaneously, the cutting carriage handles the perimeter and notches. You get the benefits of two machines in one compact footprint. This simultaneous action reduces overall processing time significantly.
We must establish a transparent assumption about these angled systems. Vertical models are highly optimized for specific media. They excel with standard marker paper and medium kraft paper. They do not work well for heavy structural cardboard. They cannot execute direct fabric cutting. You should deploy them specifically for pattern boards and markers.
Architectural Comparison Chart
Feature | Flatbed Plotter | Vertical Cutter Plotter |
|---|---|---|
Footprint Requirement | Massive (requires dedicated room) | Compact (fits against a wall) |
Material Capability | Rigid boards, heavy plastics | Marker paper, medium kraft paper |
Media Feeding | Static table placement | Continuous roll auto-feed |
Ideal Studio Type | Large industrial manufacturing | Urban studios, agile manufacturers |
Selecting the right hardware requires looking beyond basic marketing claims. You must evaluate specific operational capabilities. Software agnosticism stands as the most critical initial factor. Never assume seamless connectivity between a new plotter and your existing software. The machine must readily accept standard industry file formats. Look for native support for HPGL, PLT, and DXF files. Your plotter should integrate easily with legacy and modern CAD systems alike. Whether you use Gerber, Lectra, Optitex, or Clo3D, the hardware must parse the export files accurately.
Print and cut throughput determines your daily operational efficiency. You should avoid trusting manufacturer "maximum speed" hype blindly. Evaluate the machine based on realistic throughput. Consider how it handles dense, complex patterns. A good machine manages multiple notches, sharp curves, and tight corners without losing registration. The cutting blade must follow the printed line perfectly, even at high speeds. True throughput measures the time it takes to deliver a complex, usable pattern board.
Consumables and maintenance dictate your ongoing operational expenses. This evaluation point builds long-term trust in your equipment. Assess whether the machine requires proprietary ink cartridges. Proprietary consumables represent a high ongoing cost. You should favor plotters utilizing standard, globally available HP inkjet cartridges. Off-the-shelf cartridges keep maintenance budgets predictable. Additionally, assess the average lifespan of the cutting blades. Standardized blades ensure you never face production halts due to sourcing issues.
Media handling mechanisms separate professional machines from entry-level toys. A reliable plotter must manage heavy paper rolls effortlessly. Check the maximum roll weight limits before purchasing. Tension control systems are incredibly important. Proper tension prevents paper from skewing over long, continuous markers. If the paper shifts slightly, your entire marker becomes inaccurate. A robust auto-feed system ensures unsupervised plotting remains accurate from the first yard to the last.
Buying a machine solely based on the highest advertised carriage speed.
Failing to request a test cut using your studio's specific DXF files.
Ignoring the replacement cost of specialized cutting mats and blades.
Calculating the return on investment requires a realistic look at direct costs. You need a clear framework for identifying the break-even point. Start by calculating the monthly hardware depreciation of the machine. Add the estimated monthly cost of consumables, including ink, paper rolls, and replacement blades. Compare this total figure against the recurring fees of your current B2B plotting services. Most mid-sized studios find the monthly hardware costs fall below outsourcing fees very quickly. In-house processing eliminates markup costs applied by external print shops.
Velocity serves as an equally crucial metric for ROI. You must emphasize the hidden cost of lead times. Waiting three days for an external service to deliver patterns stalls your entire team. Immediate iteration allows for a significantly faster time-to-market. When designers can test and revise a garment on the same day, product development accelerates. This speed often eclipses the raw dollar savings of printing in-house. Faster development cycles lead to quicker sales and better trend responsiveness.
We must also address the "When NOT to buy" caveat realistically. Not every fashion business needs industrial output hardware immediately. Studios producing fewer than a handful of patterns a month may struggle to justify the capital expenditure. If your volume remains incredibly low, stick to high-quality print partners. A vertical inkjet cutter plotter requires regular use to prevent ink from drying in the lines. If you only plot once a month, outsourcing remains the smarter financial decision.
Audit your past six months of outsourced printing invoices.
Calculate the hours lost waiting for external deliveries.
Quote the monthly financing cost of a new vertical plotter.
Compare the totals to find your actual break-even timeline.
Installing industrial hardware requires proper physical preparation. You must detail exact spatial needs before delivery. A vertical machine definitely saves floor space. However, it still requires adequate clearance. Operators need room to load heavy paper rolls safely. The machine requires clearance in the front and back for the paper path. Adequate ventilation ensures ink dries properly on non-porous paper stock. You also need stable power delivery. Voltage spikes can reset the machine mid-plot, ruining an entire marker.
Initial setup demands meticulous calibration. You must set correct expectations for your team. The machine does not work perfectly out of the box without tuning. Operators must execute precise calibration routines. You have to align the print head perfectly with the cutting carriage. The blade must track exactly over the printed line. If the calibration drifts, your notches will misalign. Regular calibration checks ensure long-term precision for edges and internal cutouts.
Team adoption carries inherent risks during the transition. Address the learning curve proactively. Pattern makers must be trained on proper CAD export settings. Software layer management dictates the hardware's behavior. The plotter needs clear instructions on what to print versus what to cut. Operators must understand how to assign line weights and colors correctly. Comprehensive training prevents wasted paper and minimizes operator frustration.
Secure the plotter to a level floor to prevent vibration during high-speed cutting.
Run a diagnostic print-and-cut test pattern to verify factory carriage alignment.
Load your heaviest kraft paper roll to test the tension motor limits.
Create a standardized export template in your CAD software for the team.
A garment CAD plotter represents much more than a simple printer. It serves as a powerful production accelerator for your entire studio. Moving from manual drafting to automated output eliminates errors and standardizes your grading. You gain the ability to iterate designs immediately without relying on external vendors. This hardware bridges the gap between digital concepts and physical manufacturing efficiently.
We advise buyers to prioritize software compatibility above all else. Your hardware must speak the exact language of your CAD system. Secondly, evaluate your physical footprint carefully. Prioritizing space often leads modern studios directly to a vertical architecture. Balancing these factors alongside upfront costs ensures a smart investment. Focus on machines offering standard consumables to keep ongoing expenses highly predictable.
Take immediate action by auditing your current CAD software exports. Check if your software outputs clean DXF or PLT files natively. Next, contact a hardware provider to request a test cut. Send them a dense, complex pattern file. Verify the cut quality and registration on your specific preferred paper stock before making a final decision.
A: No, it is designed exclusively to print markers and cut pattern paper or medium kraft paper. Fabric cutting requires specialized automated fabric spreaders and heavy-duty rotary cutters.
A: Most industrial plotters rely on HPGL, PLT, or standard DXF files. You export these formats directly from standard apparel CAD software programs.
A: It depends heavily on your production volume. Look for machines utilizing standard commercial ink cartridges to keep replacement costs low. Blades typically require replacement after several months of standard daily use, depending on your paper density.
