Expanding production capabilities in garment manufacturing, signage, or packaging often conflicts directly against limited facility floor space. You want to scale output quickly. However, crowded cutting rooms make it difficult to accommodate standard horizontal equipment. Traditional workflows require separate large-format printers alongside flatbed or roll-fed cutters. Vertical hybrid systems consolidate these steps efficiently. They free up valuable floor space immediately. But they also introduce new mechanical constraints and operational variables you must understand.
Our goal here is to provide an objective breakdown of vertical cutting mechanics. We will explore exactly how these hybrid machines function on the factory floor. You will learn the strict criteria necessary to evaluate if this specific architecture fits your production environment. We will examine operational realities, potential risks, and integration requirements to help you make an informed equipment upgrade.
Form Factor: A vertical inkjet cutter plotter uses an upright, gravity-assisted design to reduce equipment footprint by up to 60% compared to horizontal flatbeds.
Dual Functionality: It combines high-speed inkjet pattern printing and precision blade cutting in a single continuous workflow without requiring media transfer.
Primary Constraints: Optimal for paper, vinyl, and lightweight cardstock; not intended for rigid substrates or heavy industrial textiles.
Evaluation Focus: Procurement decisions should hinge on CAD software compatibility, printhead consumable costs, and media tracking accuracy.

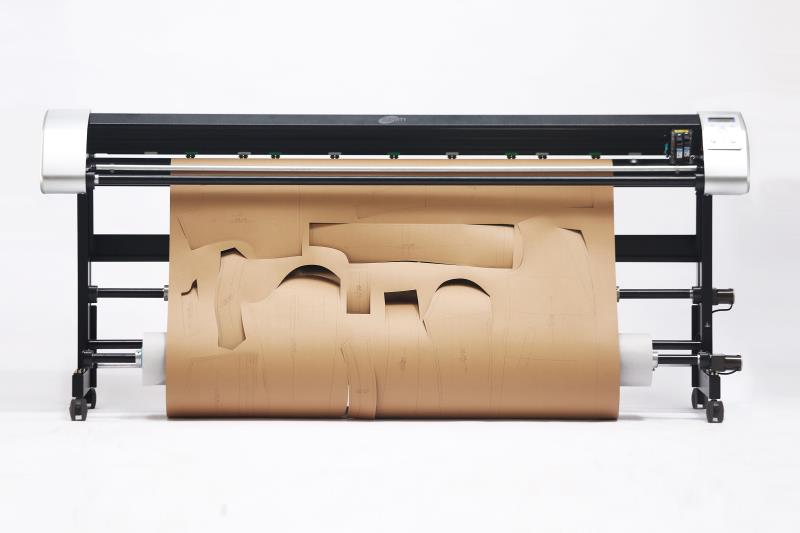

At its foundation, a vertical inkjet cutter plotter operates as a specialized dual-carriage CNC machine. It functions on a nearly 90-degree upright axis. This structural design departs significantly from standard horizontal flatbeds. We see it combine two distinct technologies into one continuous pipeline.
First, it relies on an integrated inkjet system. It utilizes standard commercial thermal or piezo printheads. You will typically see off-the-shelf cartridges used for plotting CAD markers, lines, and alphanumeric annotations. These printheads deliver precise ink droplets onto the moving substrate.
Second, it features a highly responsive cutting system. It utilizes a drag knife or tangential blade mechanism. This mechanism scores or cuts the plotted material immediately after printing. The dual-carriage setup ensures seamless transitions between plotting and cutting.
The primary advantage comes from its vertical stance. We call this the gravity advantage. The upright position leverages gravity for natural media tension. It keeps long runs of paper or vinyl perfectly taut. You achieve this stability without relying on excessive mechanical gripping. This dramatically reduces the overall equipment footprint while maintaining structural rigidity.
Understanding the exact mechanics helps identify integration bottlenecks. We can break down the equipment workflow into four distinct operational phases.
Step 1: Data Parsing and Software RIP. The machine receives PLT, DXF, or HPGL files directly from industry-standard CAD software. The internal Raster Image Processor (RIP) translates these complex vector paths into sequential print and cut commands.
Step 2: Media Feeding and Tensioning. Roll-fed material pulls carefully over the vertical platen. Encoder wheels and gravity bars maintain strict alignment. This physical tensioning is crucial for maintaining accuracy on long pattern markers.
Step 3: The Plotting Phase (Print). The inkjet carriage traverses the horizontal X-axis rapidly. It deposits ink to map out patterns, seam allowances, and necessary barcodes. The Y-axis movement comes from the material rolling vertically.
Step 4: The Cutting Phase. Immediately following or simultaneously with the print head, the blade carriage deploys. It drops down to cut the exact contours of the plotted design. It utilizes optical sensors to maintain precise registration throughout the run.
Space optimization is often the primary driver for adoption. Crowded cutting rooms and urban manufacturing facilities face strict spatial limitations. We must analyze the cost-per-square-foot metrics. Standard flatbeds demand massive operational envelopes. Vertical units save substantial space, often reducing the necessary footprint by more than half.
Workflow consolidation is equally important. Eliminating labor costs improves profit margins. You completely remove the error rate associated with moving printed rolls to a separate cutting machine. Operators no longer need to manually re-align registration marks. This continuous process reduces material waste significantly.
Apparel & Textiles: Ideal for high-volume pattern making and continuous marker plotting.
Automotive & Upholstery: Highly effective for templating and leather/fabric pattern digitizing.
Light Packaging: Excellent for short-run prototype cutting on lightweight cardstock.
To highlight the structural differences, review the architectural summary below:
Feature Category | Vertical Hybrid Architecture | Horizontal Flatbed Systems |
|---|---|---|
Floor Space Required | Minimal (Upright configuration) | Extensive (Large horizontal tables) |
Workflow Steps | Single integrated continuous process | Two steps (Print, then transfer to cut) |
Media Handling | Gravity-assisted roll feeding | Vacuum hold-down or mechanical clamps |
Ideal Substrates | Flexible media (Paper, vinyl, light card) | Both flexible and rigid substrates |
Hardware durability and consumables dictate long-term viability. Look closely at printhead standardization. Proprietary printheads inflate operating expenses. Equipment utilizing standard HP45 cartridges keeps running costs exceptionally low. Also, examine the maximum cutting force. We measure this in grams. Ensure the maximum force ensures compatibility with your target material thickness.
Media handling specifications demand rigorous scrutiny. Verify the maximum feed width versus the actual printable or cuttable width. These two measurements often differ by several inches. Check the tracking accuracy over long continuous runs. Look for equipment offering a low standard deviation over 10 meters of continuous plotting.
Software ecosystem compatibility cannot be ignored. When auditing a vertical inkjet cutter plotter, always demand a detailed software integration sheet. The equipment must offer native support for existing apparel CAD systems. Gerber, Lectra, and Optitex represent standard industry frameworks. Avoid machines requiring expensive custom middleware to interpret basic vector formats.
Media skewing risks remain a primary operational concern. Vertical feeds rely heavily on proper roll loading. Improper tension calibration easily leads to lateral drift. Markers longer than 5 meters become highly vulnerable to misalignment if operators skip setup protocols.
Printhead maintenance is non-negotiable. Inkjet technology demands regular use. You must perform maintenance purging to prevent clogging. We recommend establishing strict daily maintenance routines. Wiping the carriage and capping the heads correctly prevents weekend ink dry-outs.
Blade wear and tear fluctuates based on material. The cost and frequency of replacing drag knives depend heavily on material abrasiveness. Recycled kraft paper degrades blades significantly faster than smooth vinyl. Monitor replacement frequency closely to avoid ragged cuts.
The operator learning curve requires dedicated patience. Transitioning from single-function machines to a hybrid interface requires specific training. Operators must master dual-calibration techniques. They must learn the precise steps for aligning the print head origin with the cutter origin.
Ignoring environmental humidity, which causes paper swelling and tracking errors.
Using the wrong blade angle for dense cardstock, leading to motor strain.
Failing to lock the tension bars evenly before starting a long production run.
Start by auditing your exact material specifications. Do not over-buy cutting force. If you only plot on 40g to 80g marker paper, high-end industrial force is entirely wasted. Match the machine capabilities directly to your heaviest everyday material.
Always demand a live demonstration. Provide your own CAD files for the test. Ensure your files contain complex curves, tiny alphanumerics, and long straight lines. Make vendors test print and cut these specific files. Watch the machine transition between the inkjet and cutting tools.
Evaluate the vendor Service Level Agreement (SLA) thoroughly. Assess the availability of consumable spare parts. Belts, encoder strips, and carriage cables wear out eventually. Ensure you have access to fast, regional technician support to minimize production downtime.
A vertical inkjet hybrid system is not a universal replacement for all cutting tables. It remains a highly specialized tool designed for space-constrained, roll-to-roll pattern and template workflows. It excels at combining precision marking with immediate contour cutting.
Audit your facility floor space to confirm a vertical configuration solves your bottleneck.
Prioritize native CAD software compatibility over raw machine speed to ensure seamless integration.
Standardize your media rolls to match the specific tensioning requirements of gravity-fed platen systems.
Establish daily maintenance protocols immediately to protect inkjet printheads from premature clogging.
A: These machines are specifically optimized for flexible, roll-fed materials. They easily handle marker paper, kraft paper, standard vinyl, and lightweight cardboard up to specific millimeter limits defined by the manufacturer. They exclude rigid boards, acrylics, and thick industrial textiles.
A: Generally, no. Most reliable vertical plotters utilize industry-standard thermal inkjet technology. They commonly accept off-the-shelf HP45 or similar widely available cartridges, which keeps daily consumable expenses predictable and manageable.
A: Accuracy depends on a multi-point tensioning system. It combines specialized grit rollers, adjustable pinch rollers, and gravity tensioning bars. This mechanical synergy prevents the material from skewing or drifting as it rolls downward over the platen.
A: This depends entirely on the specific carriage architecture. Some premium models feature independent dual carriages that allow simultaneous operations. However, many standard models operate sequentially, completing the print path first before deploying the blade over the identical vector coordinates.
