Choosing the right production equipment dictates your workflow efficiency. When you invest in a vertical inkjet cutter plotter, you require absolute certainty about material compatibility. Getting this wrong leads to severe bottlenecks across apparel manufacturing, signage, and packaging lines. We define a successful material match clearly. You must achieve consistent feeding without jams, clean edge cutting without fraying, and crisp ink adherence without smudging. Finding this delicate balance ensures maximum operational efficiency.
This guide provides an objective, spec-driven breakdown of supported materials and hard limitations. We also present a robust evaluation framework for shortlisting plotting equipment. You will discover exactly how different paper types interact under high-speed mechanical stress. Armed with these insights, you can confidently integrate the right plotting technology into your daily operations and scale your output seamlessly.
Optimal GSM Range: Most commercial vertical inkjet cutter plotters reliably handle paper weights between 40 GSM and 250 GSM, though heavy-duty models can exceed this.
Primary Applications: Highly optimized for apparel marker paper, standard kraft paper, and lightweight cardstock.
Hardware Dependencies: Dual-feed systems and variable cutting force dictate whether a machine can handle mixed-media workflows or wide-format rolls (e.g., 1200mm+).
Risk Factors: Highly coated, unbacked, or excessively brittle papers often cause feed jams or require specialized aftermarket blade configurations.
The core advantage of modern plotting equipment lies in its versatility. However, not all materials perform equally under high-speed operation. Understanding how specific papers interact mechanically allows you to maximize production uptime.
Apparel marker paper serves as the foundational material for the garment industry. These rolls typically feature a lightweight, slightly translucent composition. You rely on this translucency to align patterns efficiently.
Plotting on this material requires precise mechanical coordination. A reliable vertical inkjet cutter plotter must utilize low-tension feed systems. High-speed inkjet passes create rapid back-and-forth carriage movements. If the feed tension is too high, the 40 GSM paper will tear instantly. Modern machines counter this using micro-stepper motors. These motors maintain a gentle, consistent drag on the roll. This prevents bunching while ensuring the inkjet nozzles maintain optimal clearance.

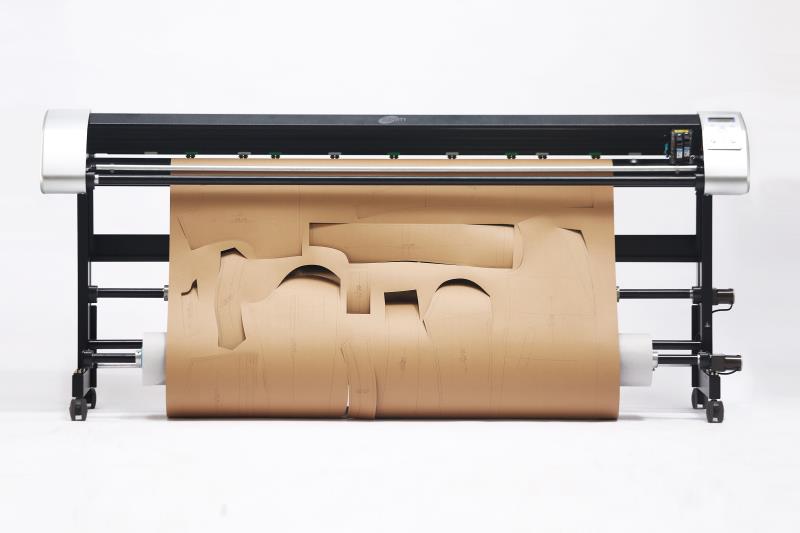

Manufacturing facilities heavily utilize kraft paper for underlays or heavy pattern templates. It is incredibly durable. It features a highly fibrous, natural wood pulp structure.
This fibrous texture introduces a unique mechanical challenge. Standard steel blades dull rapidly against unbleached fibers. To process kraft paper effectively, operators must install durable tungsten carbide blades. Tungsten carbide resists micro-abrasions caused by the pulp. Additionally, kraft paper excels in a vertical orientation. The natural rigidity of 150 GSM kraft prevents it from curling backwards. Gravity assists the feed mechanism, keeping the substrate flat against the cutting platen.
Packaging prototypes, robust stencils, and signage backing require rigid materials. Light to medium cardstock provides the necessary structural integrity for these applications.
Processing 250 GSM cardstock demands significant hardware capability. Your plotter requires adjustable carriage clearance. The print head must elevate slightly to avoid smearing ink on the thicker substrate. Furthermore, cutting cardstock demands higher downward force. Operators typically adjust the cutting pressure between 300g and 600g. Standard plotters max out at lower pressures, so verifying the gram-force specifications is critical.
High-fidelity graphics and heat transfer processes utilize specialized coated papers. Manufacturers treat these surfaces to control ink absorption and color vividness.
When you process coated papers, the machine interaction becomes highly complex. Print-and-cut alignment relies heavily on optical sensors. The surface finish can reflect light back into the sensor eye. You must calibrate the contour cutting sensors carefully. Ink drying time also dictates your cutting speed. Because coated surfaces absorb ink slower than raw kraft paper, you must delay the cutting cycle. Rushing the cut causes the pinch rollers to track wet ink across the page.
The chart below outlines standard operational parameters for common materials.
Material Type | Ideal GSM Range | Required Downward Force | Blade Material Recommendation | Primary Risk Factor |
|---|---|---|---|---|
Marker Paper | 40 - 80 | 30g - 60g | Standard Steel (45°) | Tearing from high tension |
Kraft Paper | 70 - 150 | 80g - 150g | Tungsten Carbide (45°) | Rapid blade dulling |
Cardstock | 150 - 250 | 300g - 600g | Tungsten Carbide (60°) | Motor strain, incomplete cuts |
Coated Paper | 90 - 140 | 60g - 120g | Standard Steel (45°) | Ink smudging, sensor glare |
Hardware has absolute physical limits. Pushing equipment beyond its engineered capacity results in mechanical failure. You must identify these hard disqualifiers before loading non-standard media into your production line.
You cannot effectively process tissue-like papers on vertical gravity feeds. Materials below 40 GSM lack basic tensile strength.
The Risk: The pinch rollers grab the paper. Gravity pulls the loose end downward. The opposing forces stretch the fibers. The paper buckles upward into the print head path.
The Result: You experience immediate carriage jams. The inkjet nozzles strike the crumpled paper, potentially clogging the print head.
Vertical plotter formats utilize a pinch-roller and grit-roller system. They typically lack the flatbed vacuum stability required for heavy corrugated boards.
The Risk: Corrugated materials crush under the pressure of pinch rollers. Furthermore, dragging a blade through 300+ GSM board requires extreme lateral force.
The Result: Attempting this risks severe motor burnout. Stepper motors lose steps, causing alignment failure. You also risk snapping the blade inside the media, creating a hazardous debris issue.
Signage shops frequently ask if they can repurpose their paper plotters for raw adhesive rolls. While some backed vinyl is supported, unbacked or excessively gummy materials are disastrous.
The Risk: Friction heats the blade during the cutting process. This heat melts the exposed adhesive.
The Result: Gummy residue coats the cutting blade. The blade stops spinning freely in its housing. It begins dragging and tearing the material. Eventually, this adhesive transfers to the platen and fouls the inkjet nozzles.
Optical registration marks guide the contour cutting process. The machine shines a light onto the paper and reads the contrast of the printed marks.
The Risk: Glossy surfaces bounce the sensor light directly back into the receiver lens.
The Result: The optical eye gets blinded. It confuses the glossy glare for a registration mark. This leads to wildly misaligned cuts. You waste expensive materials due to skewed cutting paths.
Selecting the proper vertical inkjet cutter plotter requires moving beyond basic marketing brochures. You must align the hardware specifications directly against your daily material needs. Use the following criteria to evaluate potential equipment.
Material handling dictates your daily throughput. You should carefully assess the feed system architecture.
Inspect the Dual Paper Feed System: Assess if the machine features a dual paper feed system. This specific mechanism allows operators to load two different material rolls simultaneously. For example, you can mount a lightweight marker paper alongside a heavy kraft roll. This drastically reduces changeover downtime during active shifts.
Verify Maximum Roll Width: Plotters range from 1200mm to 2200mm in width. You must verify this metric against your industry's standard media supplier dimensions. Buying a 1600mm plotter when your supplier ships 1800mm rolls creates an instant production bottleneck.
Check Weight Capacities: A standard 1200mm roll of 150 GSM kraft paper is incredibly heavy. Ensure the rear feed spindles feature heavy-duty bearings capable of supporting 30kg or more without bowing.
The cutting carriage does the heavy lifting. You must evaluate the maximum downward force, which manufacturers measure in grams (gf).
A reliable machine for mixed papers should offer variable force adjustments. You need an interface that allows operators to seamlessly switch from a 40gf setting for marker paper to a 400gf setting for cardstock.
Furthermore, check for standard versus proprietary blade housings. Open-ecosystem blades utilize universally available designs. Choosing an open ecosystem lowers your long-term consumable expenses. Proprietary blades often lock you into expensive vendor supply chains, causing unnecessary procurement delays when inventory runs low.
Plotter ink systems generally fall into two categories. You will encounter standard cartridge setups and bulk ink systems.
Confirm whether the plotter uses standard HP45 ink cartridges or proprietary continuous ink systems (CISS). HP45 cartridges are industrial workhorses. They require minimal maintenance. You just swap the cartridge and resume printing. CISS systems offer large reservoirs for high-volume jobs. However, CISS systems require frequent daily usage to prevent nozzle clogging. This choice heavily dictates your operational expenses per square meter on highly absorbent papers.
Component | Feature to Look For | Operational Benefit |
|---|---|---|
Media Feeding | Dual Feed Spindles | Eliminates heavy lifting during media swaps |
Cutting Carriage | Variable Force (Max 600g) | Allows transitioning from tissue to cardstock |
Tool Ecosystem | Open-Standard Blade Housing | Prevents vendor lock-in for consumables |
Ink Delivery | Standard HP45 Compatibility | Ensures plug-and-play reliability |
Procuring the hardware only represents the first step. Integrating a new plotting machine into an active facility introduces several workflow risks. You must anticipate these implementation challenges to ensure a smooth transition.
Many procurement managers make a critical assumption check. They believe out-of-the-box settings will perfectly match their niche paper types. This is rarely true.
Operators must account for a one-to-two week calibration phase. During this time, your team will dial in blade depth, offset values, and feed tension. A 45-degree blade behaves differently on 80 GSM paper than it does on 150 GSM kraft. If your team rushes this calibration phase, you will experience frayed cuts and misaligned patterns. Dedicate specific downtime solely for hardware tuning.
Paper responds violently to atmospheric changes. Humidity directly affects paper stiffness and ink absorption rates.
High-humidity environments cause kraft paper to warp. As the fibers absorb moisture, the edges curl. When you feed warped paper vertically, the print carriage snags on the raised edges. This requires climate-controlled production floors. You should monitor ambient humidity and keep paper rolls wrapped in plastic until the exact moment of use. Ignoring environmental controls leads to unpredictable equipment jamming.
Do not purchase based on spec sheets alone. Paper physics vary widely across different regions and suppliers.
You must require the vendor to run a live or video-recorded test cut. Send them your specific paper substrate before finalizing the procurement. Ask them to perform a dense, intricate cut path. Watch the video closely for any signs of paper dragging or ink smudging. If the vendor refuses to test your exact media, eliminate them from your shortlist immediately.
A vertical inkjet cutter plotter serves as a highly capable production asset. It easily handles standard apparel marker, packaging prototypes, and drafting papers ranging from 40 to 250 GSM. However, it physically struggles with extremes in thickness, unbacked adhesives, and extreme gloss.
To move forward confidently, you must audit your current media supply. Document your exact GSM ranges, roll widths, and surface coatings. Use these precise specifications to request customized sample runs from your shortlisted equipment manufacturers. By strictly matching your media requirements to the hardware capabilities, you guarantee uninterrupted production and a stronger return on your equipment investment.
A: Yes, provided it is backed and the machine has contour cutting capabilities. Optical sensors are required to read registration marks. However, these machines are primarily optimized for paper. Unbacked or highly gummy vinyl will foul the cutting blade and inkjet nozzles.
A: You risk dulling the blade instantly and jamming the carriage. Pushing media that is too thick forces the stepper motors to overwork. This potentially voids your warranty due to excessive motor strain and mechanical abuse.
A: Most commercial vertical plotters use standard industrial ink, like HP45 cartridges. This adheres well to matte and uncoated papers. Coated or glossy papers may require specialized fast-drying inks to prevent smudging before the mechanical cut cycle begins.
A: It allows simultaneous loading of different widths or types of paper. You can keep marker paper and heavy kraft paper mounted at the same time. This eliminates the manual labor and downtime of swapping heavy rolls when switching between project types.
