Selecting the exact printing width for a garment inkjet plotter is a critical balancing act. You want to maximize your daily marker utilization. However, you also need to manage limited operational floor space efficiently. Finding this perfect middle ground determines your production floor's overall efficiency.
Oversizing your equipment often leads to wasted media and unnecessary facility strain. Conversely, undersizing creates immediate production bottlenecks. It heavily limits your standard fabric roll compatibility. You will find yourself forced into awkward manual workarounds.
This guide breaks down the standard width tiers available in the industry today. We provide a practical framework to align your equipment footprint directly against your actual production volume. You will discover how specific hardware choices impact your daily workflow. Ultimately, you will learn how to optimize your workspace layout for maximum cutting room productivity.
Match the width to your standard fabric rolls: 60–64 inches covers 90% of standard apparel manufacturing needs.
Consider marker efficiency: Wider plotters allow for more efficient marker nesting, reducing fabric waste in high-volume runs.
Evaluate hybrid solutions: A vertical inkjet cutter plotter can maximize output capabilities while mitigating the floor-space penalty of wider machines.
Factor in total footprint: Actual operational space requires accounting for media loading, operational clearance, and output catch baskets, not just machine width.
Understanding your daily production scale is the first step in selecting the correct machine. You must evaluate how your pattern size and standard fabric rolls dictate your hardware requirements. Machine width is not just a hardware specification. It directly dictates how you structure your daily cutting room operations.
To frame this business problem accurately, you should evaluate three core elements:
Assess your average standard fabric roll width across your most common product lines.
Evaluate your daily pattern throughput and the number of markers you generate per shift.
Determine the complexity of your typical nesting strategy and how much margin space you require.
Your plotter width must exceed or match your widest standard fabric roll. This alignment ensures accurate marker generation. If you print a 60-inch marker for a 60-inch fabric roll, you maximize fabric utilization. You leave no unused textile material on the cutting table. High fabric utilization drastically reduces textile waste over high-volume production runs.
You also need to assess your throughput demands. High-volume factories print hundreds of patterns daily. Wider formats process larger, multi-garment markers in a single run. A wider machine allows you to group more garments together. This reduces human intervention. Your operators spend less time loading new paper rolls and more time managing the actual cutting process.
However, you must remain aware of standardization constraints. Buying a plotter significantly wider than your standard media often causes mechanical issues. If you run a 36-inch paper roll through an 86-inch machine daily, you risk severe tracking errors. The unused margin space causes the paper to skew during high-speed printing. Skewed paper ruins the accuracy of your nested markers. You should always aim to match your machine width closely to your primary paper and fabric width.
The market divides garment plotters into three main width categories. Each tier serves a specific type of apparel manufacturing. You must choose the category reflecting your current operational size and future growth plans.
This compact tier perfectly serves boutique operations. It is ideal for bespoke tailors, prototyping labs, and independent fashion designers. These machines fit easily into small studios or home-based workrooms.
Despite their convenient size, they carry distinct limitations. You cannot print full-width markers for standard commercial apparel fabric rolls. Standard commercial rolls typically measure 58 to 60 inches wide. If you use a 36-inch machine, you must print your patterns in sections. You then have to manually tape or splice the paper pieces together before laying them on the fabric. This splicing process introduces human error and slows down production significantly.
The 60 to 64-inch tier reigns as the undisputed industry standard. It is ideal for mid-to-large apparel manufacturers and standard cut-and-sew operations. Most commercial apparel production relies heavily on this specific size.
The primary advantage lies in its perfect alignment with common 58/60-inch fabric rolls. You can print a continuous, full-width marker. This optimizes your marker nesting algorithms for minimal waste. Your CAD software can distribute pattern pieces across the entire width of the textile. You achieve maximum efficiency without any manual paper splicing.
These massive machines handle industrial and specialized textiles. They are ideal for upholstery, automotive interiors, sportswear, and home textiles. Furniture and automotive fabrics routinely exceed standard apparel widths.
However, these super-wide machines carry substantial risks for standard apparel makers. They require massive amounts of floor space. An 86-inch machine dominates a cutting room. It represents extreme overkill for standard garment production. You will rarely use the full width unless you manufacture specialized oversized goods.
Width Tier | Best Suited For | Major Limitation |
|---|---|---|
36 to 44 Inches | Boutique labs, independent designers | Requires paper splicing for standard rolls |
60 to 64 Inches | Mid-to-large apparel manufacturers | Requires dedicated operational floor space |
72 to 86+ Inches | Upholstery, automotive, home textiles | Overkill for standard apparel; massive footprint |
Manufacturers often face a difficult spatial dilemma. You want the efficiency of a 60-inch or 72-inch machine. However, your cutting room simply lacks the open floor space for traditional flatbed or horizontal roll-fed systems. This is where hybrid solution categories change the game.

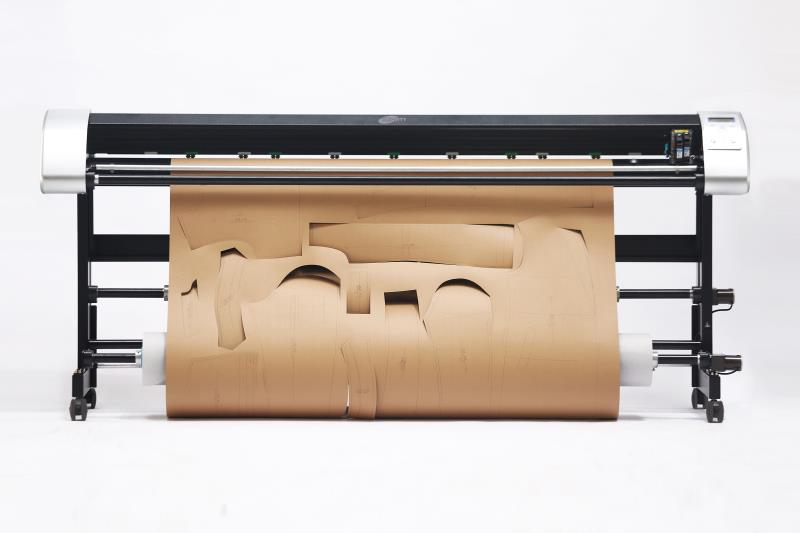

You can introduce a vertical inkjet cutter plotter as a powerful alternative. Traditional horizontal machines consume valuable center-room real estate. They require operators to walk around the entire perimeter. A vertical orientation completely optimizes your facility footprint. The machine mounts against a wall or stands on a highly condensed vertical frame. This allows businesses to adopt a 60-inch or 72-inch width without sacrificing premium floor space. You gain wide-format capabilities inside a narrow-format footprint.
Furthermore, these machines offer unparalleled workflow consolidation. Traditional setups require one machine for printing markers and a separate process for cutting patterns. A vertical inkjet cutter plotter combines both functions. You combine high-speed inkjet plotting for your annotations, notches, and marker lines with automated cutting in a single pass.
This consolidation speeds up your production transition. You move from digital CAD files to physical cut pieces much faster. Your operators no longer have to transfer heavy paper rolls between separate machines. You eliminate an entire handling step from your daily workflow. This streamlined approach minimizes human error and accelerates your overall daily output.
Selecting the right plotter requires looking beyond the raw width measurement. You must evaluate specific mechanical features and how they translate into production outcomes. Ignoring these nuances often leads to frustrating daily operations.
First, you must balance print speed against print density. Machine specifications often boast incredibly high printing speeds. However, you must ensure the machine maintains vector resolution at those top speeds. Clear resolution is absolutely critical for reading fine marker annotations, internal darts, and seam allowances. If the ink fades or blurs at high speeds, your cutting team will make costly mistakes.
Next, closely examine the media handling and tracking systems. Advanced tension control separates professional equipment from cheap alternatives.
Pinch Rollers: Ensure the machine features multiple adjustable pinch rollers to distribute pressure evenly.
Tension Bars: Look for weighted tension bars that keep the paper taut during rapid feed movements.
Take-up Reels: Verify the take-up reel synchronizes perfectly with the print carriage to prevent bunching.
Skewed paper on a 60-inch run ruins the entire marker. If the paper shifts by even half an inch, the nested patterns will not align with the fabric grainline.
Software and CAD compatibility remains another crucial hurdle. You must verify seamless integration with standard industry software. Whether you use Optitex, Gerber, Lectra, or Tukatech, the hardware must communicate flawlessly. The plotter must interpret HPGL and PLT files without any data loss or vector distortion.
Finally, evaluate your consumables and daily maintenance. Check the availability of compatible ink cartridges. Many commercial plotters use standard HP45 cartridges. These are widely available and highly reliable. Avoid machines requiring proprietary, hard-to-source ink systems. Furthermore, ensure your local suppliers consistently stock the specific plotter paper width and weight you plan to use.
You must address the physical realities of installing wide-format machinery. The advertised width of a plotter never equals the actual space it requires. Failing to map out these facility constraints causes severe installation headaches.
Operational clearance dictates your true footprint. A 64-inch plotter typically requires at least 80 to 90 inches of physical wall space. The extra width houses the print carriage motors, the control panels, and the structural frame. Additionally, you cannot push the machine completely flat against a tight corner. You must provide front and back clearance for roll loading. Operators need at least three feet of physical space to safely lift and mount heavy paper rolls onto the feed spindles. You also need space for the output catch baskets to collect the finished markers.
Power and network requirements require equal attention. B2B implementations demand stable digital connectivity. You cannot rely on spotty consumer-grade routers. Your machine requires stable Ethernet or enterprise-grade Wi-Fi connectivity for networked print queues. Large PLT files take time to transfer. Dropped connections mid-print will ruin large batches of plotter paper. You also need dedicated power circuits to prevent tripped breakers during power-intensive cutting phases.
To finalize your decision, apply a strict shortlisting logic to your facility:
Audit your current average fabric width across your main inventory.
Measure your available floor space, explicitly marking out loading zones with tape.
Assess your facility's network access points near the designated installation zone.
Following this logical sequence prevents buyer's remorse. You ensure the hardware fits your physical space just as well as it fits your production needs.
For general apparel manufacturing, the 60-to-64-inch tier consistently offers the best balance of capability and facility management. It aligns perfectly with standard fabric rolls, allowing you to maximize marker nesting efficiency. It prevents the need for manual paper splicing while avoiding the excessive footprint of industrial 86-inch models.
If upgrading to a wider format introduces severe spatial constraints, you should pivot your strategy. If your workflow also involves immediate cutting right after pattern printing, prioritize evaluating a vertical model. A vertical solution condenses your entire production line, claiming wall space instead of valuable floor space.
Your next step is to audit your CAD software export formats. Once you confirm your file types, contact vendors directly. Request sample marker prints at your target width. This allows you to physically verify line clarity, machine speed, and software compatibility before you alter your cutting room layout.
A: Yes, most commercial plotters have adjustable media sensors and pinch rollers. You can slide the rollers to accommodate 36-inch or 48-inch paper on a 64-inch machine. However, frequent switching between roll sizes may slow down your daily production and requires careful tension adjustment to prevent skewing.
A: Wide-format printers focus on high-fidelity color and dense graphics, making them ideal for signage and advertising. Garment plotters are specialized for high-speed, monochrome vector line drawing. They interpret HPGL files to draw precise pattern outlines quickly. Many advanced garment plotters also include physical cutting capabilities.
A: Factor in the machine's physical width, which is usually 15 to 20 inches wider than the actual print width. You also must include at least 3 feet of open clearance behind and in front of the machine. This ensures operators can perform safe media loading and routine maintenance without obstruction.
